Installation
111
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016

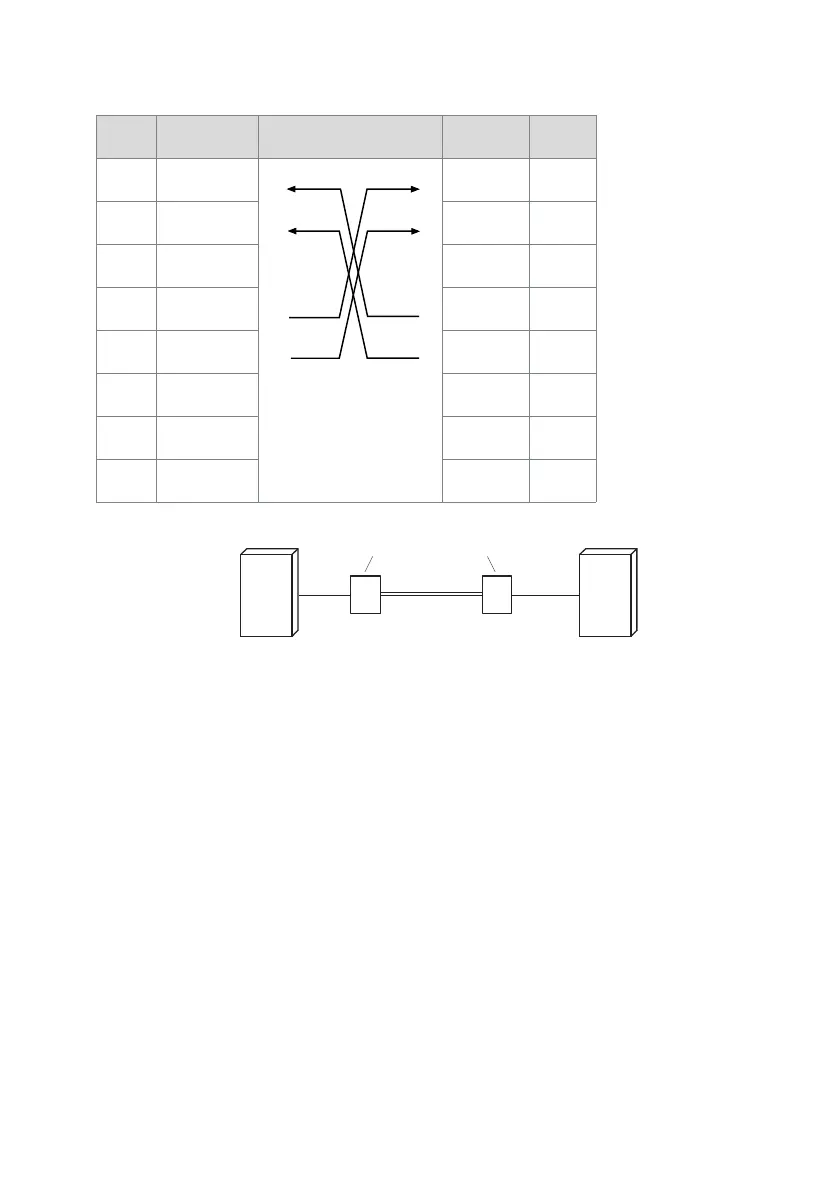

Tab. 45 Cabling for primary rate access PRI, networked with copper line
Fig. 38 Primary rate interface, networked with transmission equipment
RJ45
Pin
PRI PINX 1
signal
Cable cores
Crossed patch cable
PRI PINX 2
signal
RJ45
Pin
1RxA RxA 1
2RxB RxB 2
3— — 3
4TxA TxA 4
5TxB TxB 5
6— — 6
7— — 7
8— — 8
PINX 1
PINX 2
PRI
PRI
max.
200 m
max.
200 m
Transmission facilities
