Mitel 430 - Page 116

Installation
116
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016

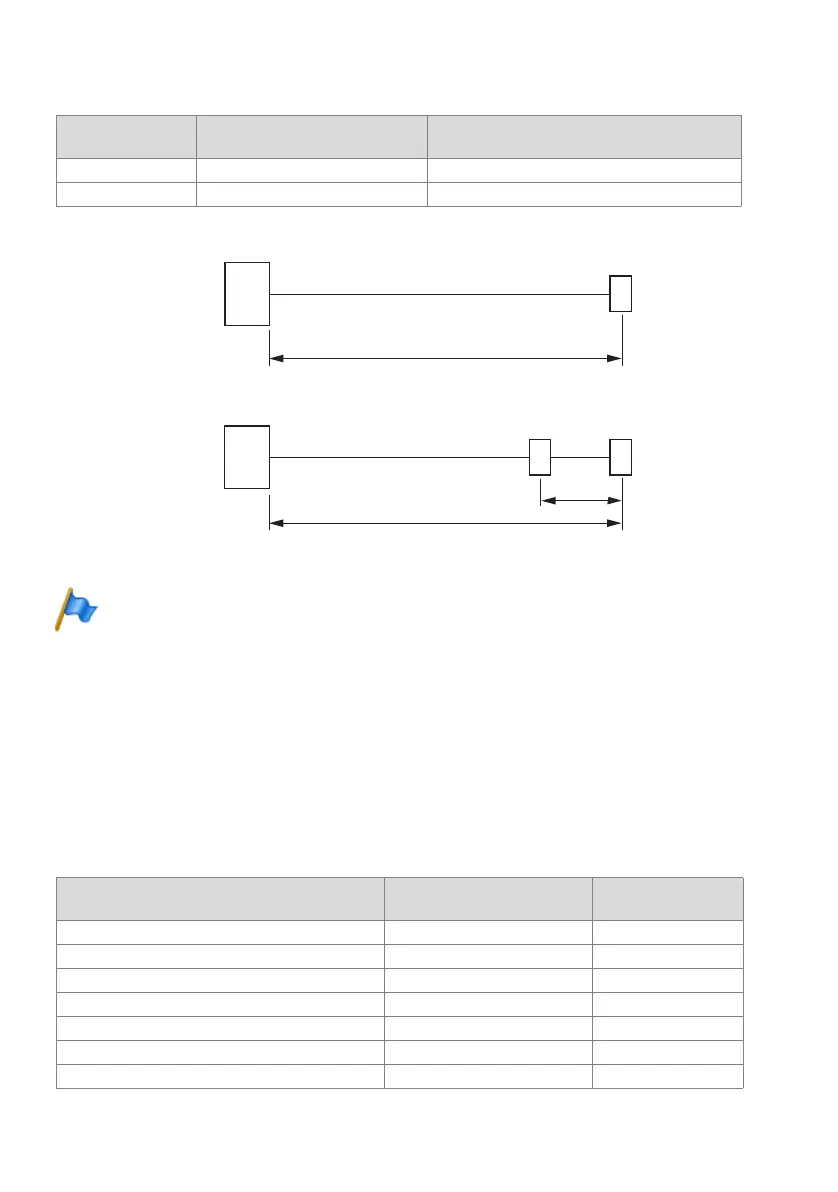

Tab. 51 DSI-AD2 bus length and number of phones
Fig. 42 DSI-AD2 bus
Notes
The total length of the cables from the communication server to the system phone must not be
less than 10 m.
Restrictions
The maximum length of an DSI-AD2 bus is further restricted by:
• the maximum power requirements of the connected system phones and their sup-
plementary equipment. In this context the SB-4+ and SB-8 DECT radio units are
also considered as system phones.
• the line resistance (depending on the line length and wire diameter)
Tab. 52 Maximum power requirements of the system phones on the DSI bus
Number of phones Total length of DSI-AD2 bus
Distance between the 1st and 2nd ones Connec-
tion point (without connection cable)
1 A: max. 1200 m –
2 B: max. 1200 m C: max. 10 m
System phone
1)
Socket
Max. power input
[mW]
MiVoice 5360
2)
DSI-AD2 interface 900
MiVoice 5361 DSI-AD2 interface 1220
3)
MiVoice 5370 DSI-AD2 interface 1220
3)
MiVoice 5380 DSI-AD2 interface 1340
3)
MiVoice 5370, MiVoice 5380 with power supply unit DSI-AD2 interface 0
Expansion key module MiVoice M530 MiVoice 5370 300
Expansion key module MiVoice M530 MiVoice 5380 500
A
B
C
2. Connection
point
1. Connection
point
1. Connection
point
Communica-
tion server
Communica-
tion server
