Installation
137
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016

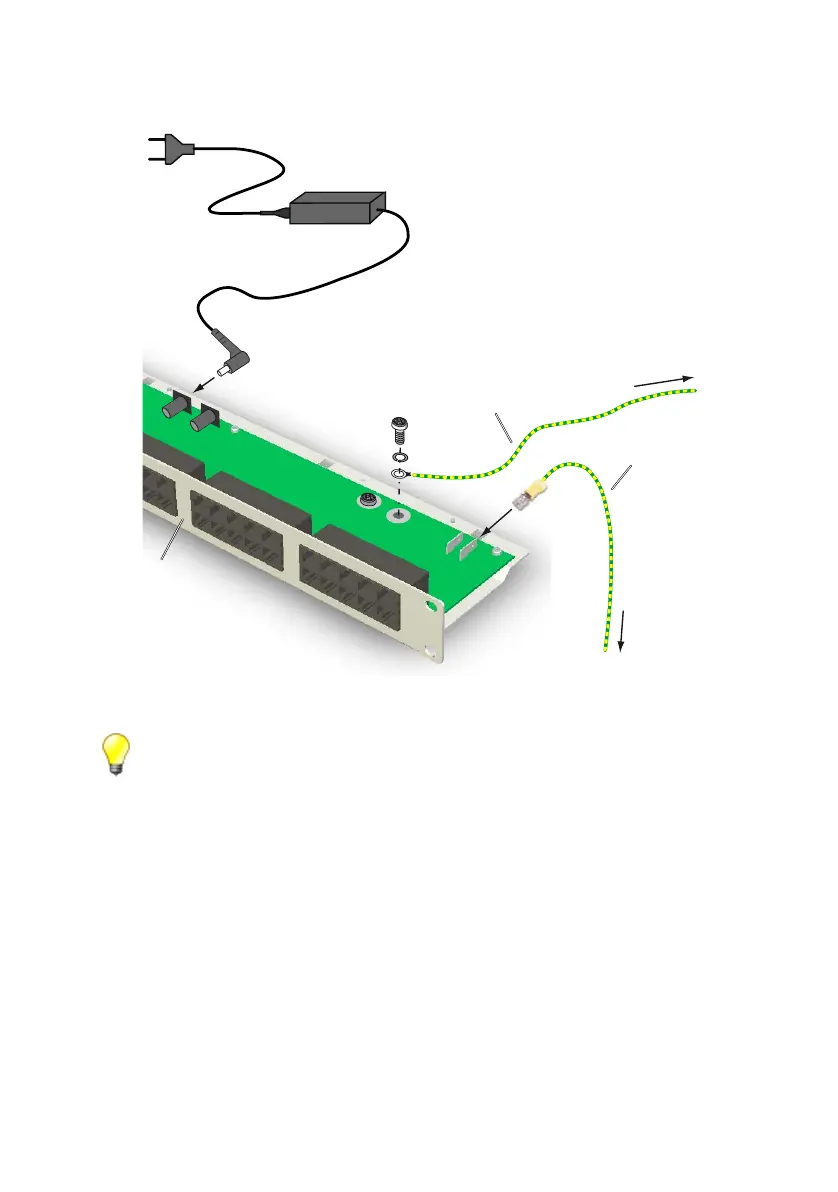

Fig. 61 Connection of an EFOP fan-out-panel
Tip
Use the same mains socket to connect the power supply of the communication server and the
power supply of the EFOP fan-out-panel to the mains power. This prevents an unwanted
switchover in the event of a mains failure on the EFOP fan-out-panel only.
EFOP
To the
communica-
tion server
Power supply
Mains power
To the earth
connection
Stranded copper
yellow/ green
4,0 mm
2
unprotected
Copper wire yellow/ green
2,5 mm
2
protected
4,0 mm
2
unprotected
