Installation
158
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016
[1] X = 200: Minimum distance if the radio units are connected to the same communication server (synchronous)
X = 2000:Minimum distance if the radio units are not connected to the same communication server (not synchro-
nous)
Make sure the minimum distances are observed

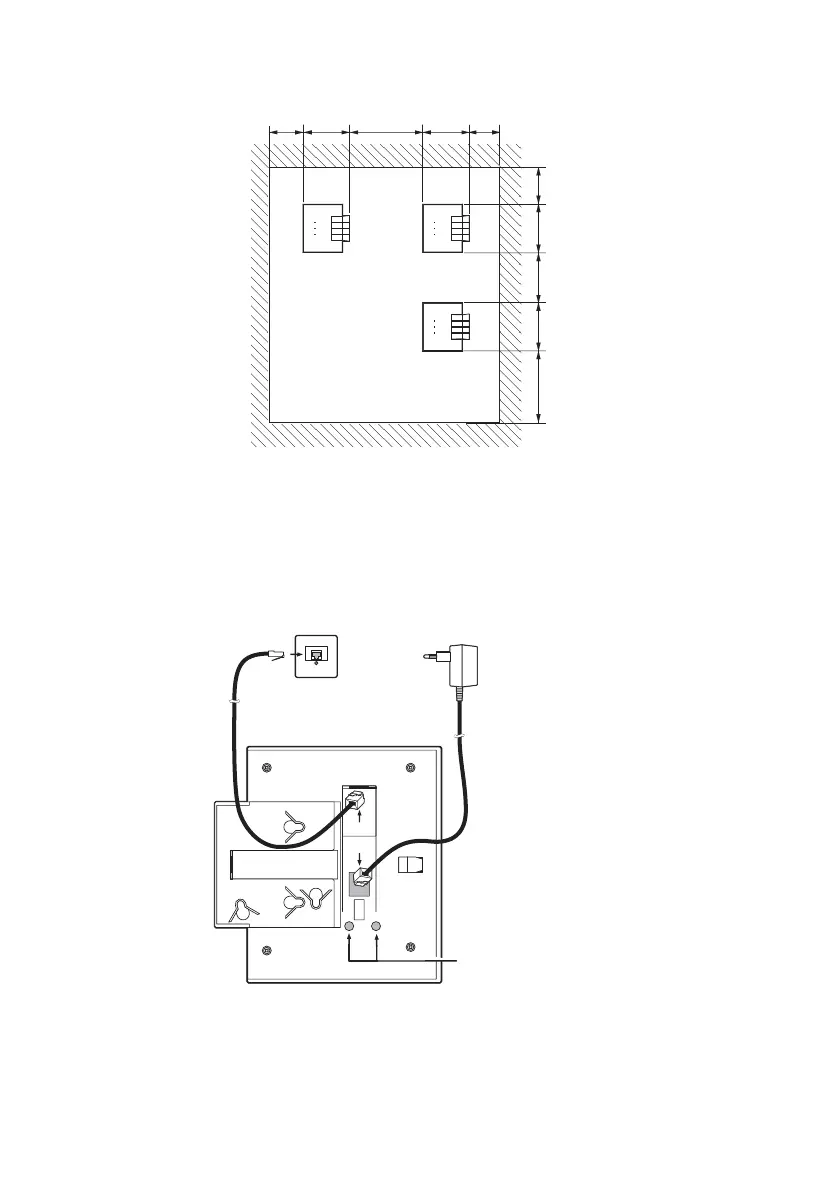

Fig. 72 Installation distances
Connecting the radio unit
Fig. 73 Underside of the radio units with connection points
100
165
X [1]
165
100
100
170
170
100 X [1]
All dimensions in mm
Sockets, external antennas
( SB-8ANT only)
Socket 2
Socket 1
DSI interface
115/230 VAC
(optional)
