Installation
94
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016

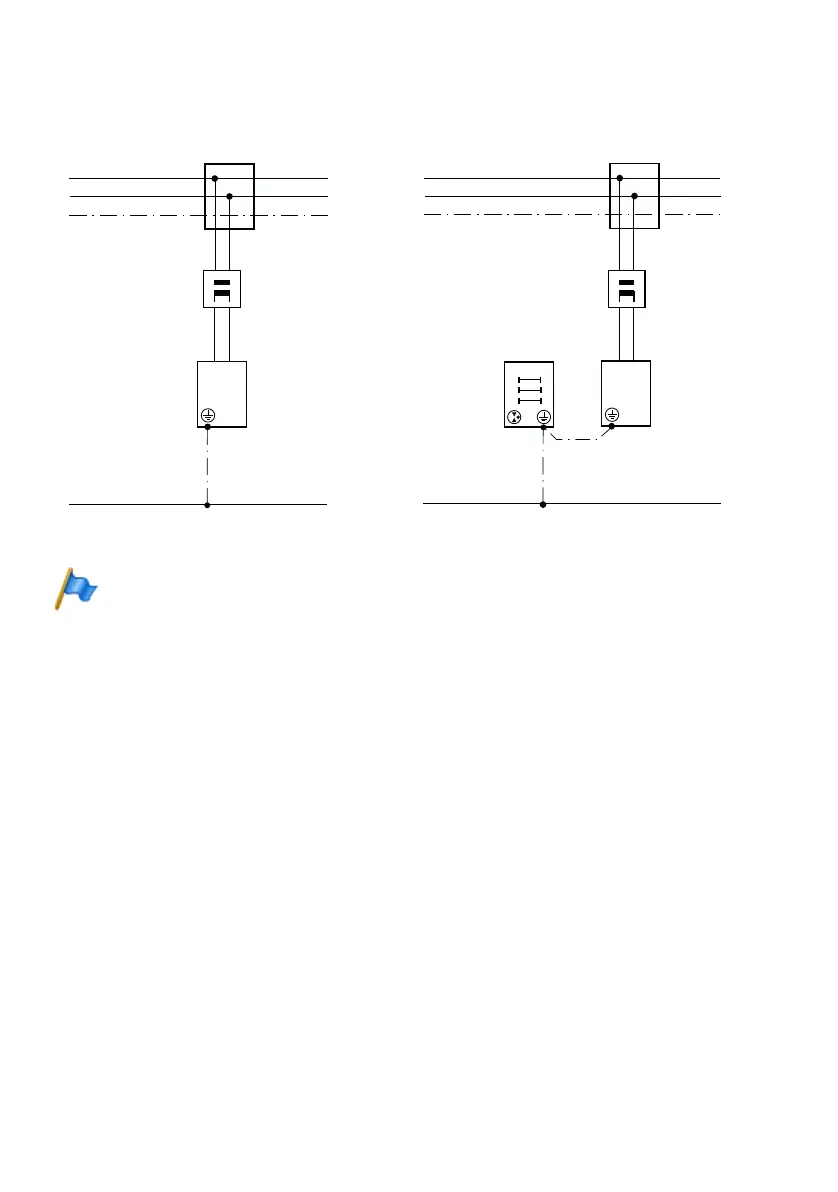

Fig. 20 Earthing of the communication server in the case of an indirect cabling and direct cabling
Note
In the case of an indirection connection make sure that the communication server’s earthing
wire does not form any earth loops with the earthed cable screenings of the installation cables
leading up to the (main) distribution frame. The cables should be kept as short as possible and
laid out in parallel.
Mitel
415/430
Mitel
415/430
Power supply
Power supply
Indirect connection
Direct connection
Copper wire yellow/ green
2,5 mm2 protected 4,0
mm2 unprotected
Copper wire yellow/ green
2,5 mm2 protected 4,0
mm2 unprotected
(Main)
distribution
board
Building earth
Building earth
Protective wire
Protective wire
Socket-outlet
Socket-outlet
Mains power
Mains power
