PROTOCOL-SPECIFIC INFORMATION
2) Right click on “Add-On Instructions” in
the controller organizer view and select
“Import Add-On Instruction”. Browse and
import the AC/DC drive profile add-on
instruction. Refer to Figure 51.
3) Double click “Controller Tags” in the
controller organizer view and select the
“Edit Tags” tab at the bottom.
4) Create the tags shown in Figure 52.

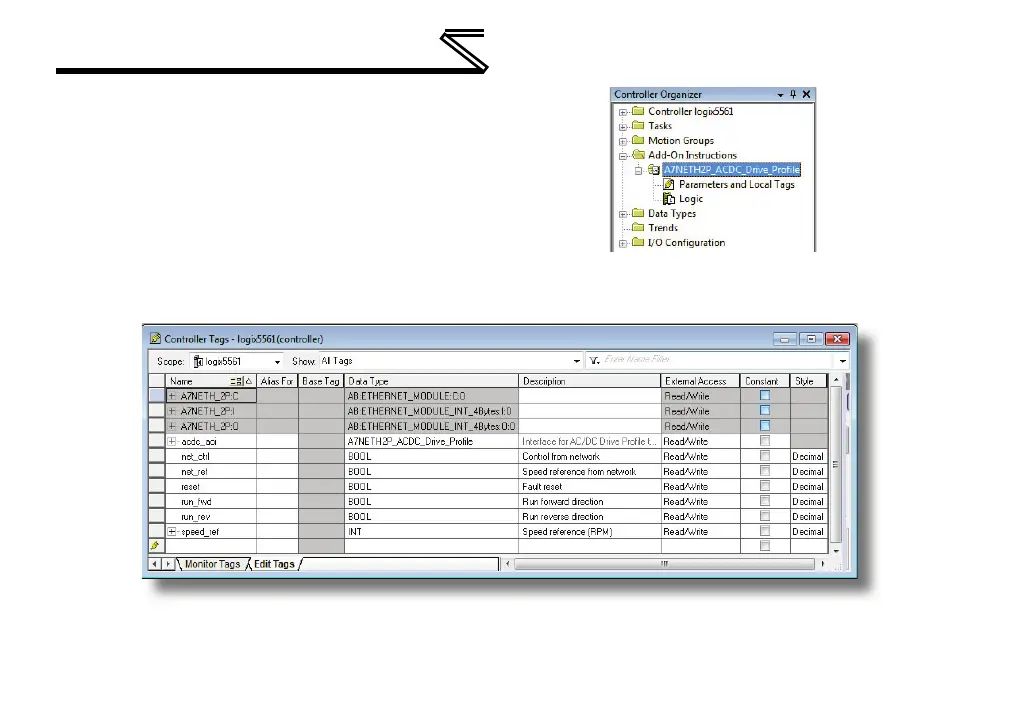

Figure 51: AC/DC Drive Profile Add-On Instruction
Figure 52: Create AC/DC Drive Profile AOI Tags
