FX3U Series Programmable Controllers

User’s Manual - Hardware Edition

130

6 Examination of System Configuration

6.9 Example of System Configuration and System Modification

6.9.3 Re-examination of suitability for configuration

When the main unit is short of 5V DC or 24V DC current, use an input/output powered extension

unit.

Reexamine the system configuration using an input/output powered extension unit.

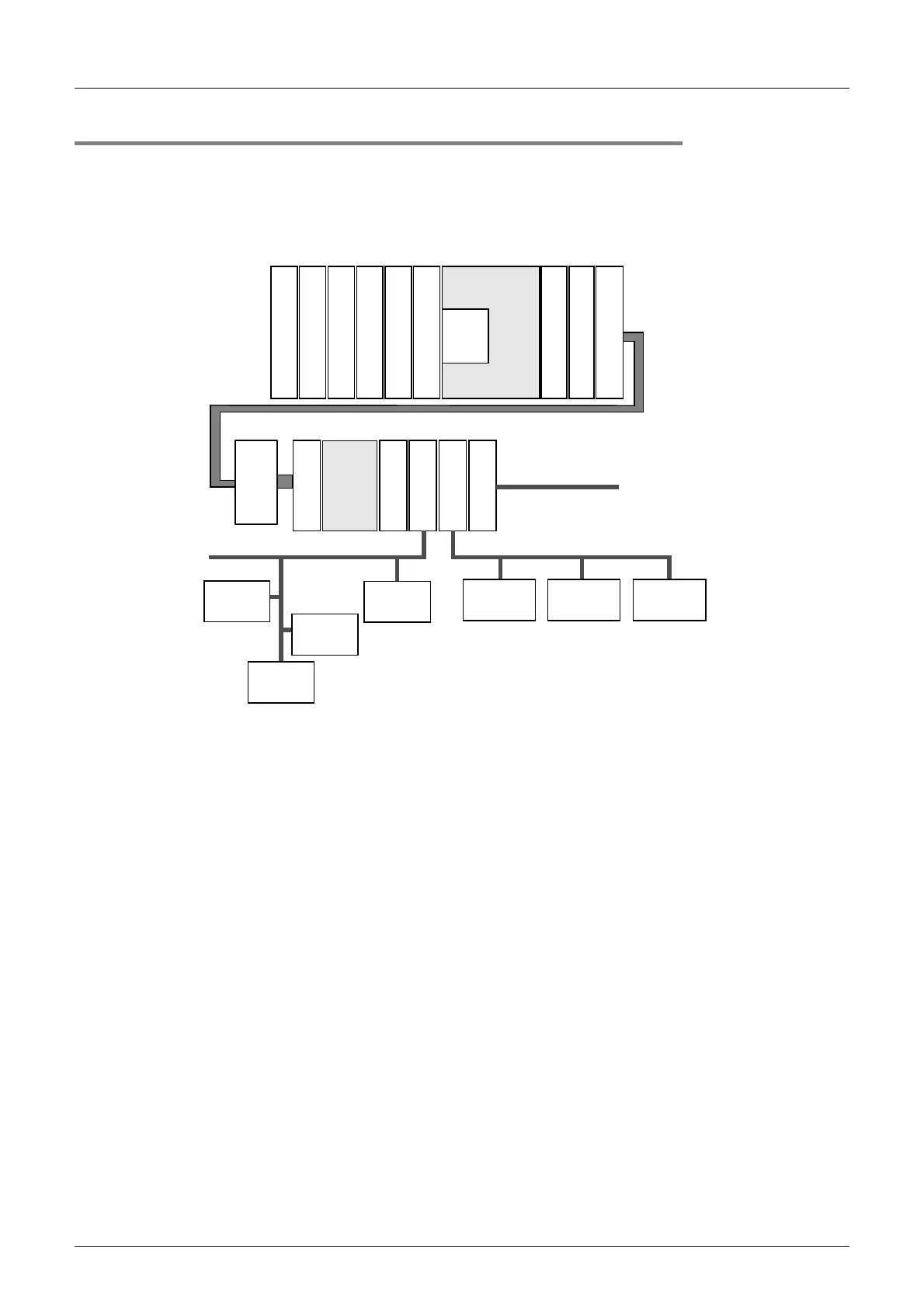

Example of reexamined system configuration

-CNV-

32ER

-ES/UL

-10PG

-2LC

-64CL-M

-16CCL-M

-32CCL

Extension cable

-48MR/ES

-1HC

-16EYT-ESS/UL

-16EX-ES/UL

-4HSX-ADP

232-BD

-2HSY-ADP

-485ADP(-MB)

-4AD-ADP

Power

supply

adapter

8 output

points

4 input

points

4 input

points

CC-Link/LT

Remote

device

station

Remote I/O

station

Remote

device

station

CC-Link

To CC-Link

master station
