18.2 Extension Power Supply Unit
18.2.1 FX3U-1PSU-5V

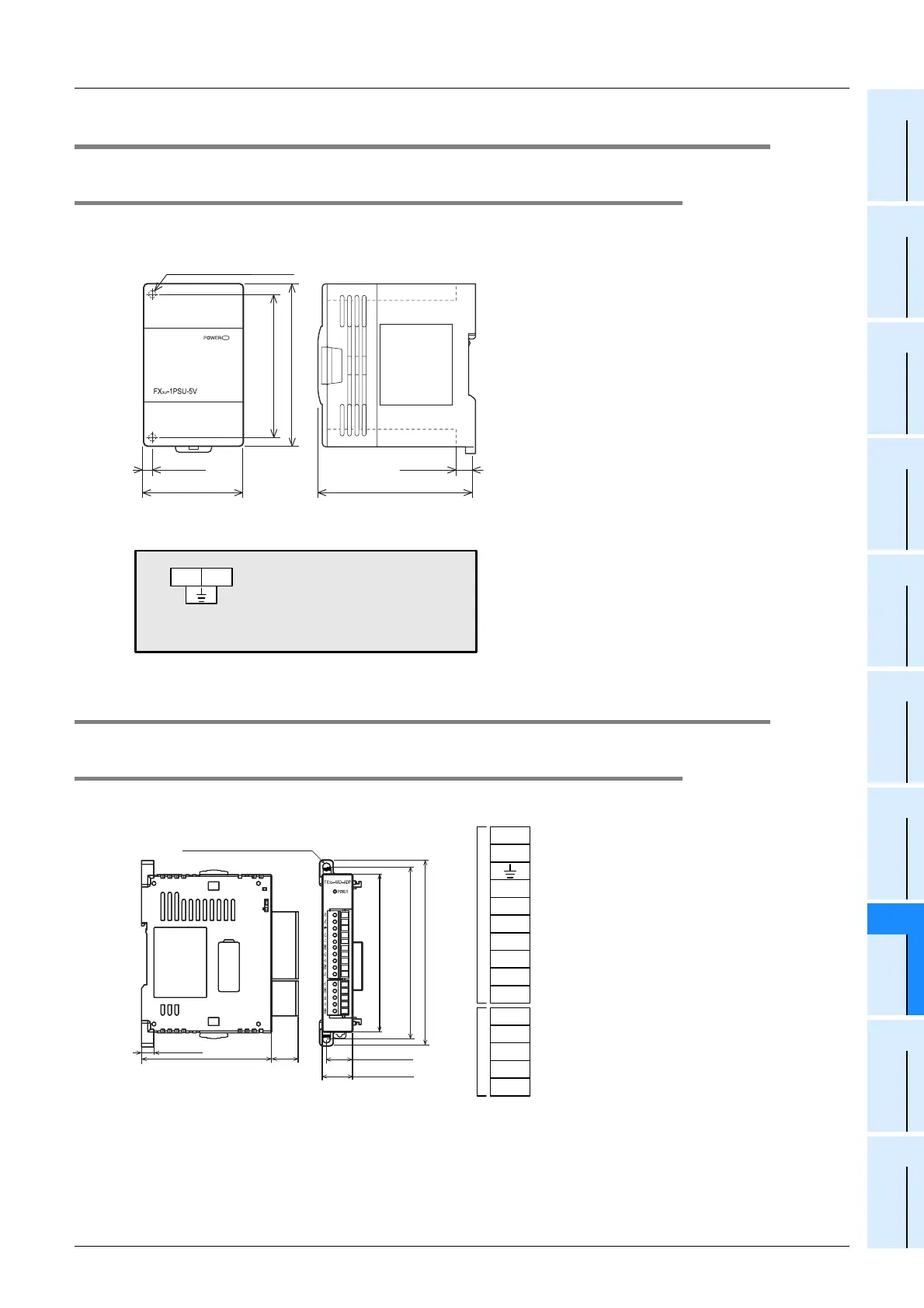

External Dimensions
•MASS(Weight): 0.3kg (0.66lbs)
•Installation: 35mm (1.38") wide DIN rail
or screws
•Accessories: Extension cable (55mm
(2.16")),
Dust Proof sheet,
Manual supplied with product
•Terminal block: M3 screws
Terminal Layout
18.3 Special Adapters
18.3.1 FX3U-4AD-ADP
External Dimensions, Terminal Layout
•MASS(Weight): 0.1kg (0.22lbs)
•Installation: 35 mm (1.38") wide DIN rail
or screws
•Accessories:
Manual supplied with product
•Terminal block: European type
2-φ4.5 mounting holes
55(2.17")
87(3.43")
80(3.15")
(mouning hole pitch)
90(3.55")
4(0.16")
Unit:mm (inches)
9(0.36")
L N
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2-φ4.5 mounting holes
24+
24-
V1+
I1+
COM1
V2+
I2+
COM2
V3+
I3+
COM3
V4+
I4+
COM4
10
poles
5
poles
