FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
356

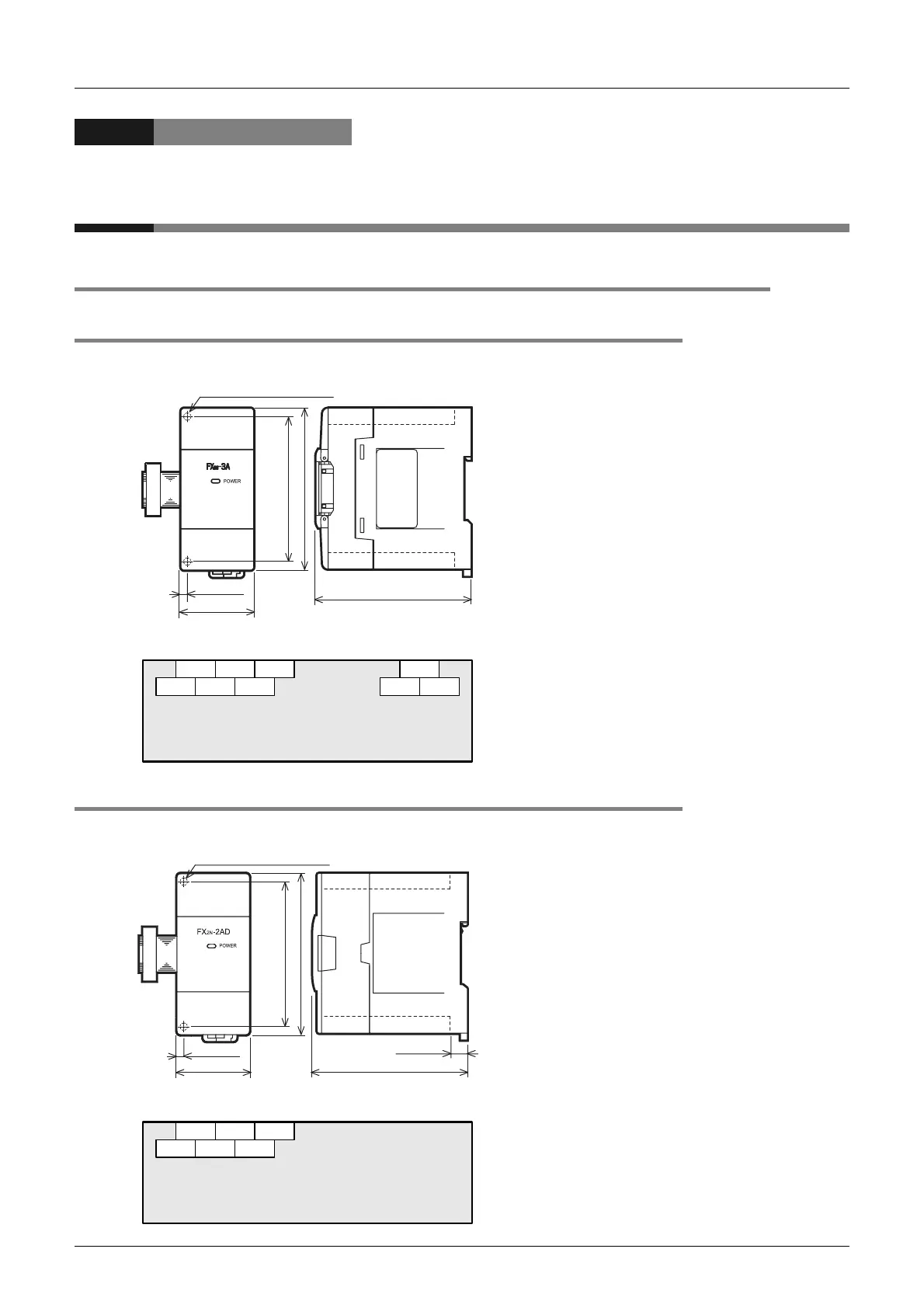

18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.1 Special Function Units/Blocks
18. Other Extension Devices and Optional Units
(External Dimensions and Terminal Arrangement)
18.1 Special Function Units/Blocks
18.1.1 FX0N-3A
External Dimensions
•MASS(Weight): 0.2kg (0.44lbs)
•Installation: 35 mm (1.38") wide DIN rail
or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
18.1.2 FX2N-2AD
External Dimensions
•MASS(Weight): 0.2kg (0.44lbs)
•Installation: 35 mm (1.38") wide DIN rail
or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
43(1.7")
2-φ4.5 mounting holes
IIN2VIN2
VIN1 IIN1 COM1
COM2 VOUT
IOUT COM
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
43(1.7")
2-φ4.5 mounting holes
IIN2VIN2
VIN1 IIN1 COM
COM
