16 FX2N-8/16E*-*(Input/Output Extension Blocks)

16.12 FX2N-8EYT-H (Transistor Output)

High-Speed

Counters

Output Wiring

Wiring for

Various Uses

Test Run,

Maintenance,

Troubleshooting

IInput/Output

Powered

Extension Units

Input/Output

Extension

Blocks

Extension

Power Supply

Unit

Other Extension

Units and

Options

Display Module

Terminal Block

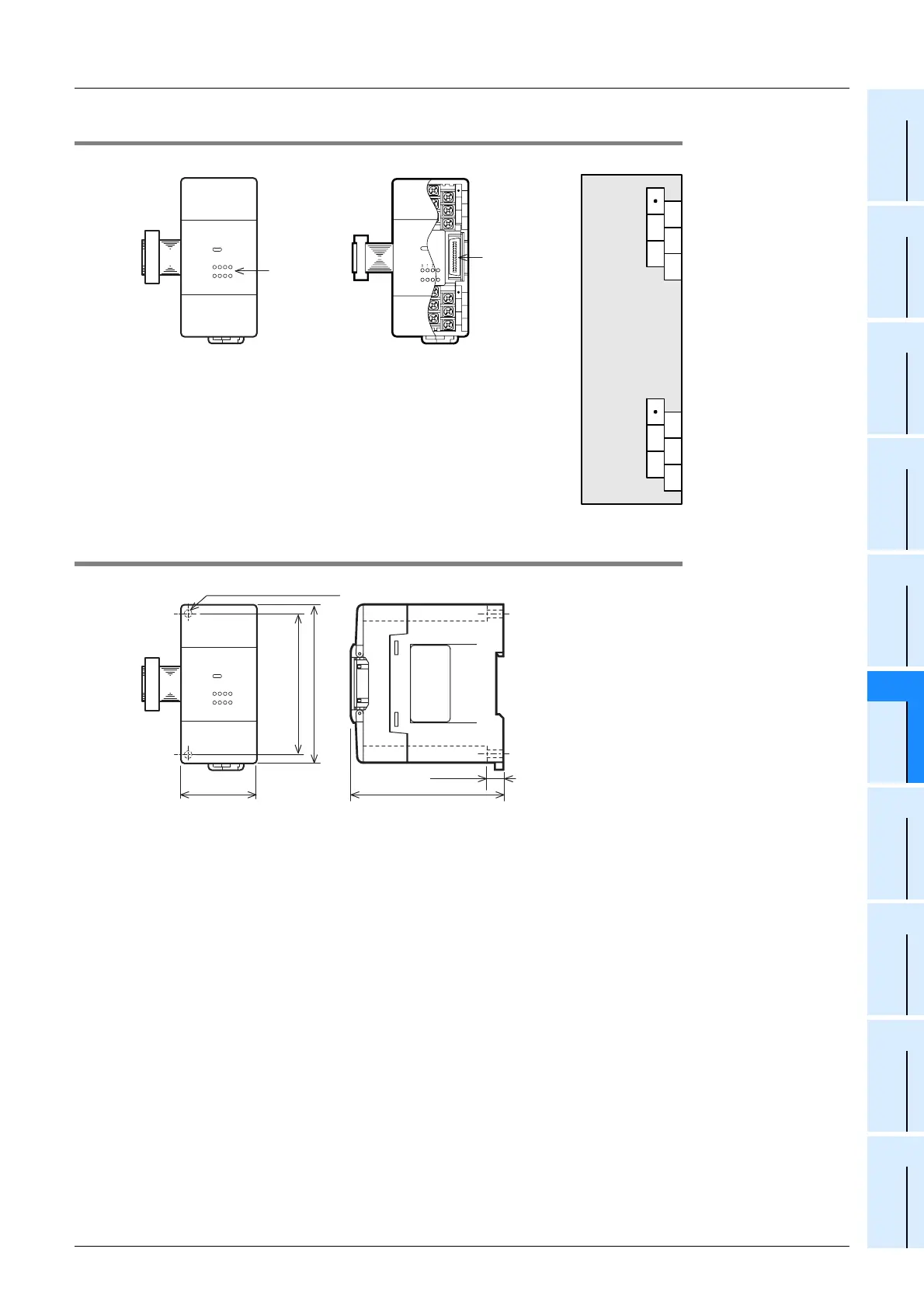

16.12.2 Parts identification and terminal arrangement

16.12.3 External dimensions

OUT

FX2N-8EYT-H

POWER

7654

With cover

Output

indicator

lamps

(LED lamps)

Without cover

Rear line

extension

connector

FX2N-

COM1

COM2

OUT

654

COM1

COM2

-8EYT-H

FX2N-8EYT-H

POWER

7654

OUT

43(1.7")

87(3.43")

80(3.15")

(mounting hole pitch)

90(3.55")

Unit:mm (inches)

9(0.36")

2-φ4.5 mounting holes
