FX3U Series Programmable Controllers

User’s Manual - Hardware Edition

254

13 Examples of Wiring for Various Uses

13.2 Digital Switch [DSW Instruction (FNC 72)/BIN Instruction (FNC 19)]

13.2.2 When BIN instructions are used

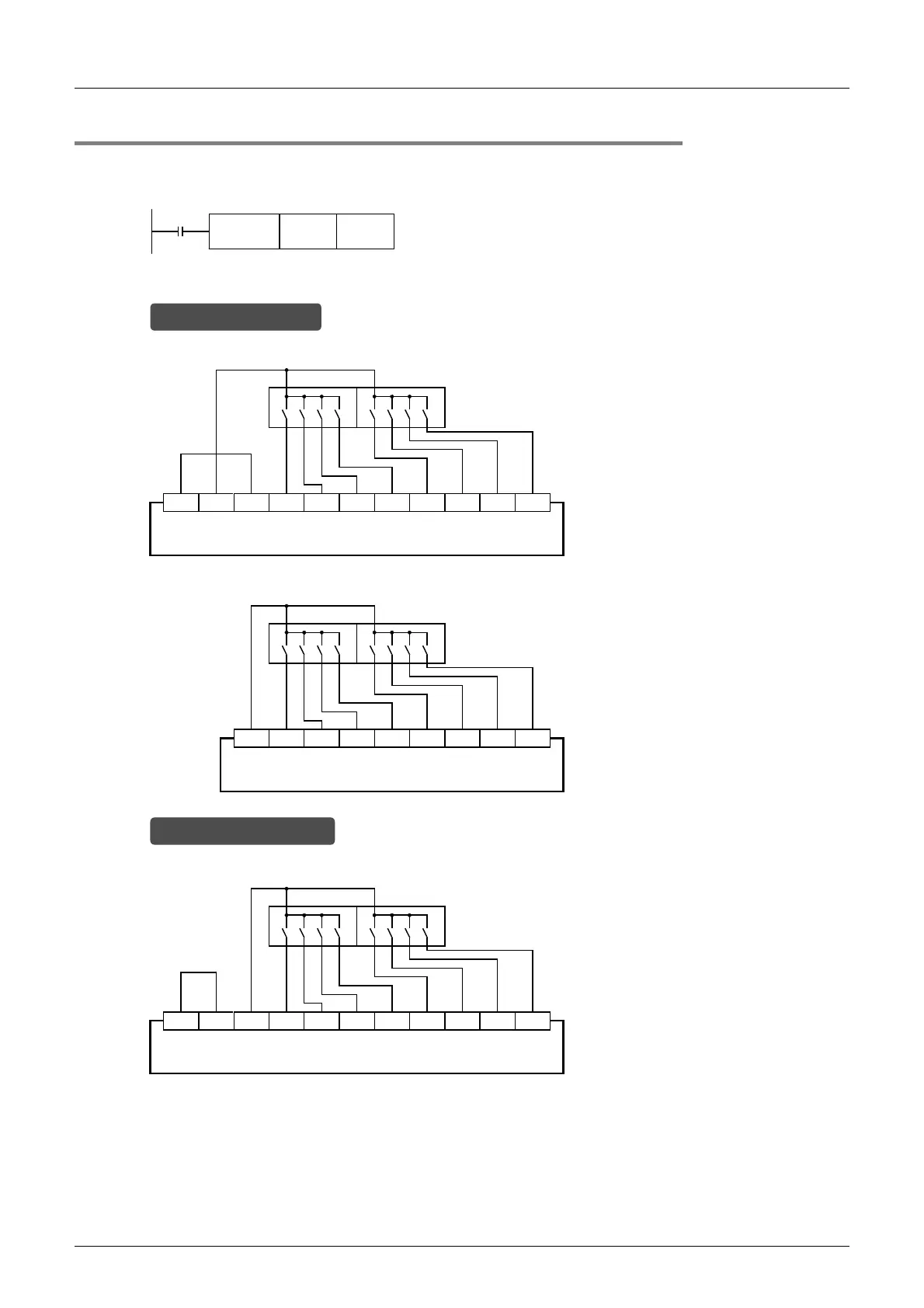

Examples of wiring for capturing values from a 2-digit digital switch to the data register D102 are given below.

Example of program

Examples of wiring

M8000

K2X010 D102BIN

When a sink and source input type unit is used

24V X010 X011 X012 X013 X015X014 X016 X017

12481248

0VS/S

When a sink input type unit is used

COM X010 X011 X012 X013 X015X014 X016 X017

12481248

Main unit and input/output powered extension units

Input/output powered extension units

In case of sink wiring

Main unit and input/output powered extension units

When a sink and source input type unit is used

24V X010 X011 X012 X013 X015X014 X016 X017

12481248

0VS/S

In case of source wiring
