18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.8 Display Module
18.8 Display Module
18.8.1 FX3U-7DM

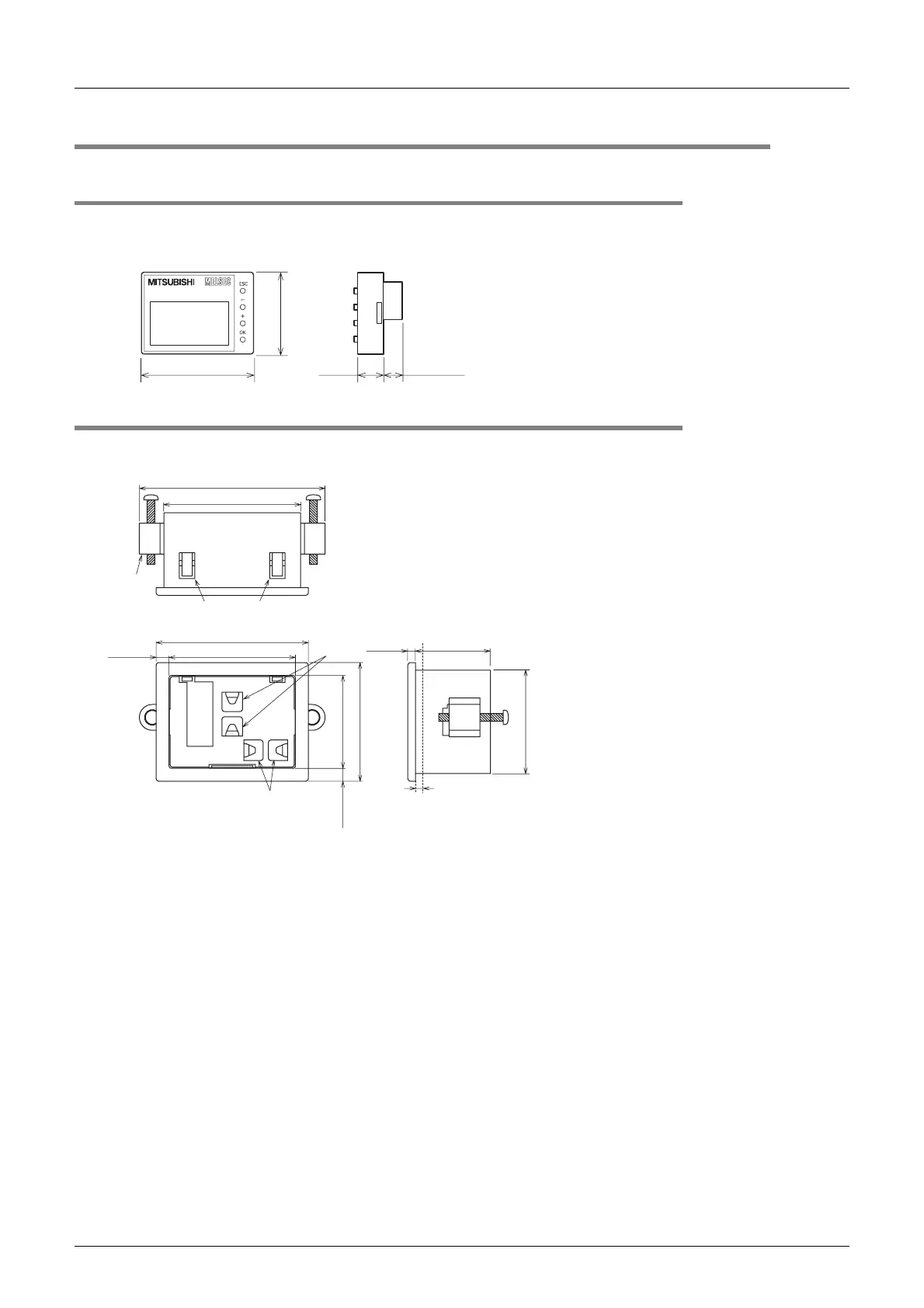

External Dimensions
•MASS(Weight): 20g (0.05lbs)
•Accessories: Display module mounting top
cover,
Manual supplied with product
18.8.2 FX3U-7DM-HLD
External Dimensions
•MASS(Weight): 20g (0.05lbs)
•Accessories: PLC cover,
Mounting bracket × 2 pieces,
Tightening bolt
(M4 × 25) × 2 pieces,
Extension cable with ferrite
core (1.4m(4’7")),
Clamp A × 5 pieces,
Clamp B × 1 piece,
Cable tie × 1 piece,
Manual supplied with product
35 (1.38")
48 (1.89")
11.5
(0.46")
Approx.
8.5 (0.34")
Unit:mm (inches)
70 (2.76")
53 (2.09")
59 (2.33")
28 (1.11")
4
(0.16")
49 (1.93")
36 (1.42") 46 (1.82") 40 (1.58")
5 (0.2")
5 (0.2")
Panel thickness must be
between 1 and 5 mm
(0.04" and 0.19").
Guides
Mounting
bracket
Display module fixing hooks
Guides
Unit:mm (inches)
