16 FX2N-8/16E*-*(Input/Output Extension Blocks)
16.11 FX2N-8EYT, FX2N-16EYT and FX2N-16EYT-C (Transistor Output)
FX2N-16EYT-C
When an output (Y) number is assigned, 8 points on side A will be used for the lower output numbers, and 8
points on side B will be used for the higher output numbers.

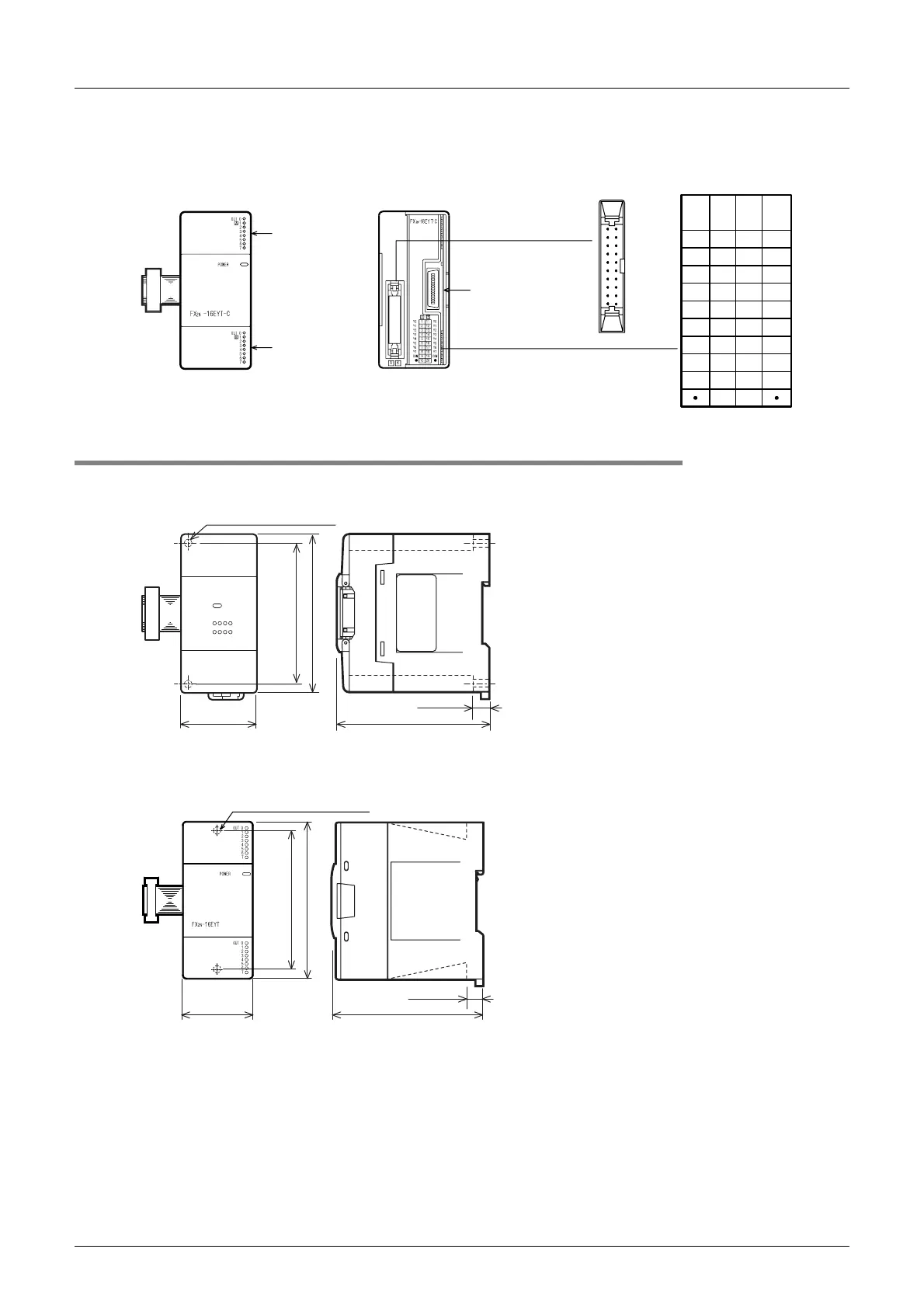

16.11.3 External dimensions
FX2N-8EYT
FX2N-16EYT
Y0
Y1
Y2
Y3
Y4
Y5
Y7
Y6
COM
Side
A
1
2
3
4
5
6
8
7
9
No.
10
11
12
13
14
15
16
18
17
19
No.
20
Y0
Y1
Y2
Y3
Y4
Y5
Y7
Y6
COM
Side
B
Connector type
Terminal arrangement
With cover
Output indicator
lamps
(LED lamps)
Output indicator
lamps
(LED lamps)
Without cover
Rear line
extension
connector
FX2N-8EYT
POWER
0 1 23
7654
OUT
43(1.7")
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
9(0.36")
2-φ4.5 mounting holes
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
9(0.36")
40(1.58")
2-φ4.5 mounting holes
