FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
364
18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.1 Special Function Units/Blocks

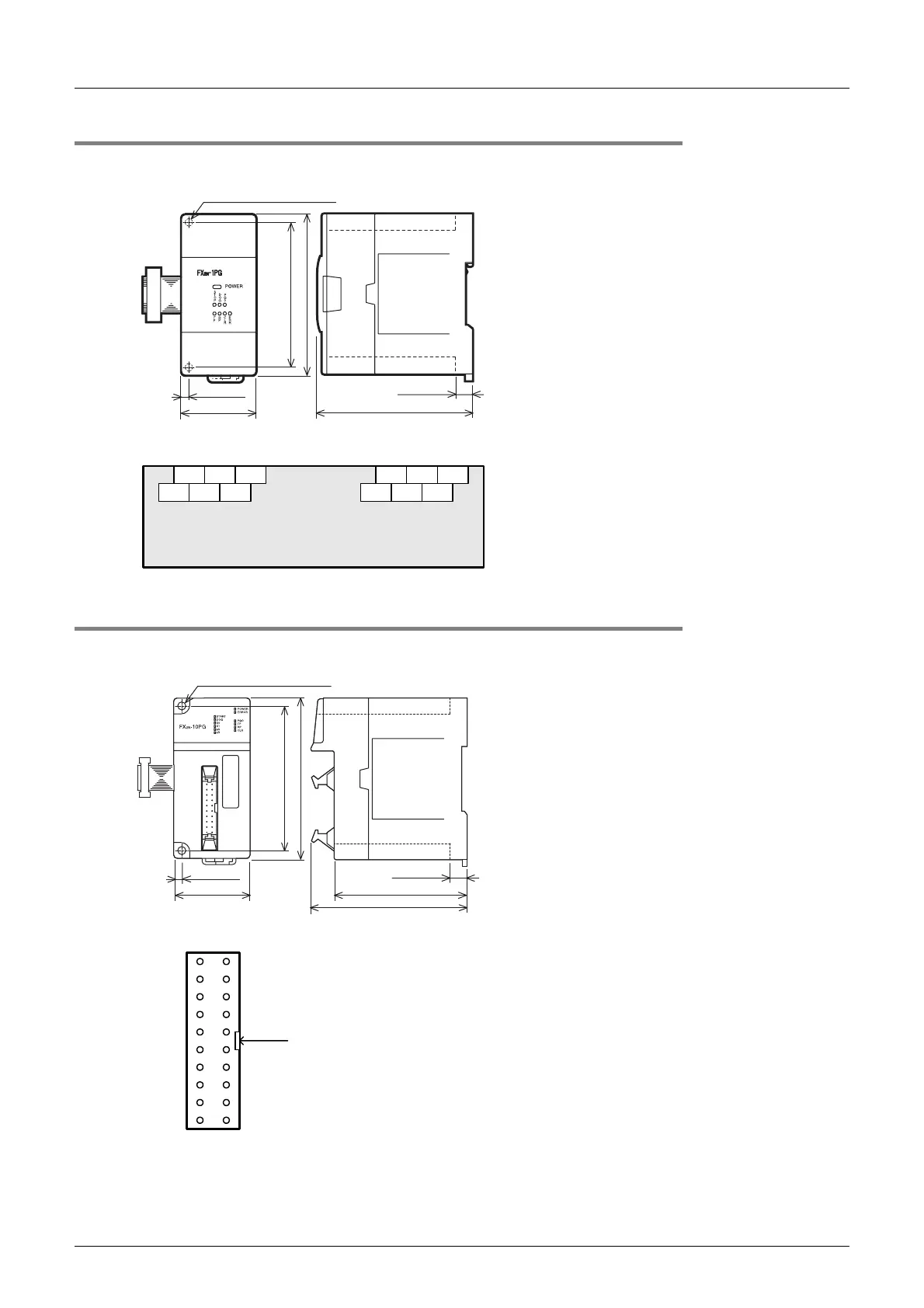

18.1.17 FX2N-1PG(-E)
External Dimensions
•installation: 35mm (1.38") wide DIN rail
or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
18.1.18 FX2N-10PG
External Dimensions
•MASS(Weight):0.2kg (0.44lbs)
•Installation: 35mm (1.38") wide DIN rail
or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Connector: 20-Pin
•The extension cable is already connected to
the extension block
Terminal Layout
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
43(1.7")
2-φ4.5 mounting holes
VIN
COM0
RP PG0+
PG0-
CLR
STOP
COM1
S/S
DOG
S/SFP
74(2.92")
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
43(1.7")
2-φ4.5 mounting holes
VIN-
FP-
RP-
PG0-
CLR-
φ A-
φ B-
START
S/S
X1
VIN+
FP+
RP+
PG0+
CLR+
φ A+
φ B+
DOG
S/S
X0
Notch
