FX3U Series Programmable Controllers

User’s Manual - Hardware Edition

342

16 FX2N-8/16E*-*(Input/Output Extension Blocks)

16.9 FX2N-8EYT-ESS/UL, FX2N-16EYT-ESS/UL (Transistor Output)

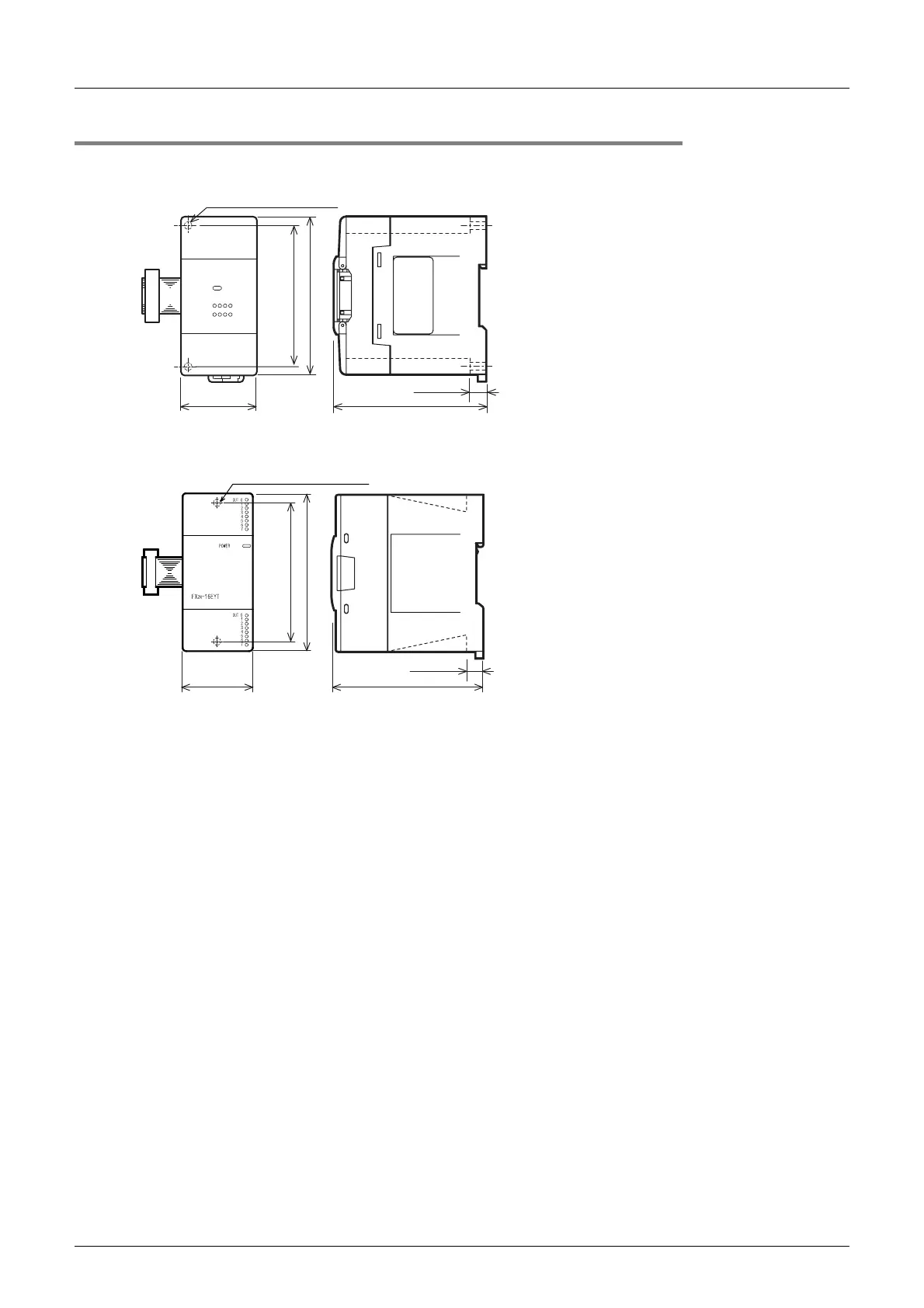

16.9.3 External dimensions

FX2N-8EYT-ESS/UL

FX2N-16EYT-ESS/UL

FX2N-8EYT-ESS

POWER

7654

OUT

43(1.7")

87(3.43")

80(3.15")

(mounting hole pitch)

90(3.55")

Unit:mm (inches)

9(0.36")

2-φ4.5 mounting holes

87(3.43")

80(3.15")

(mounting hole pitch)

90(3.55")

Unit:mm (inches)

9(0.36")

40(1.58")

2-φ4.5 mounting holes
