FX3U Series Programmable Controllers

User’s Manual - Hardware Edition

326

16 FX2N-8/16E*-*(Input/Output Extension Blocks)

16.4 FX2N-8EX-ES/UL, FX2N-16EX-ES/UL (24V DC Sink/Source Input)

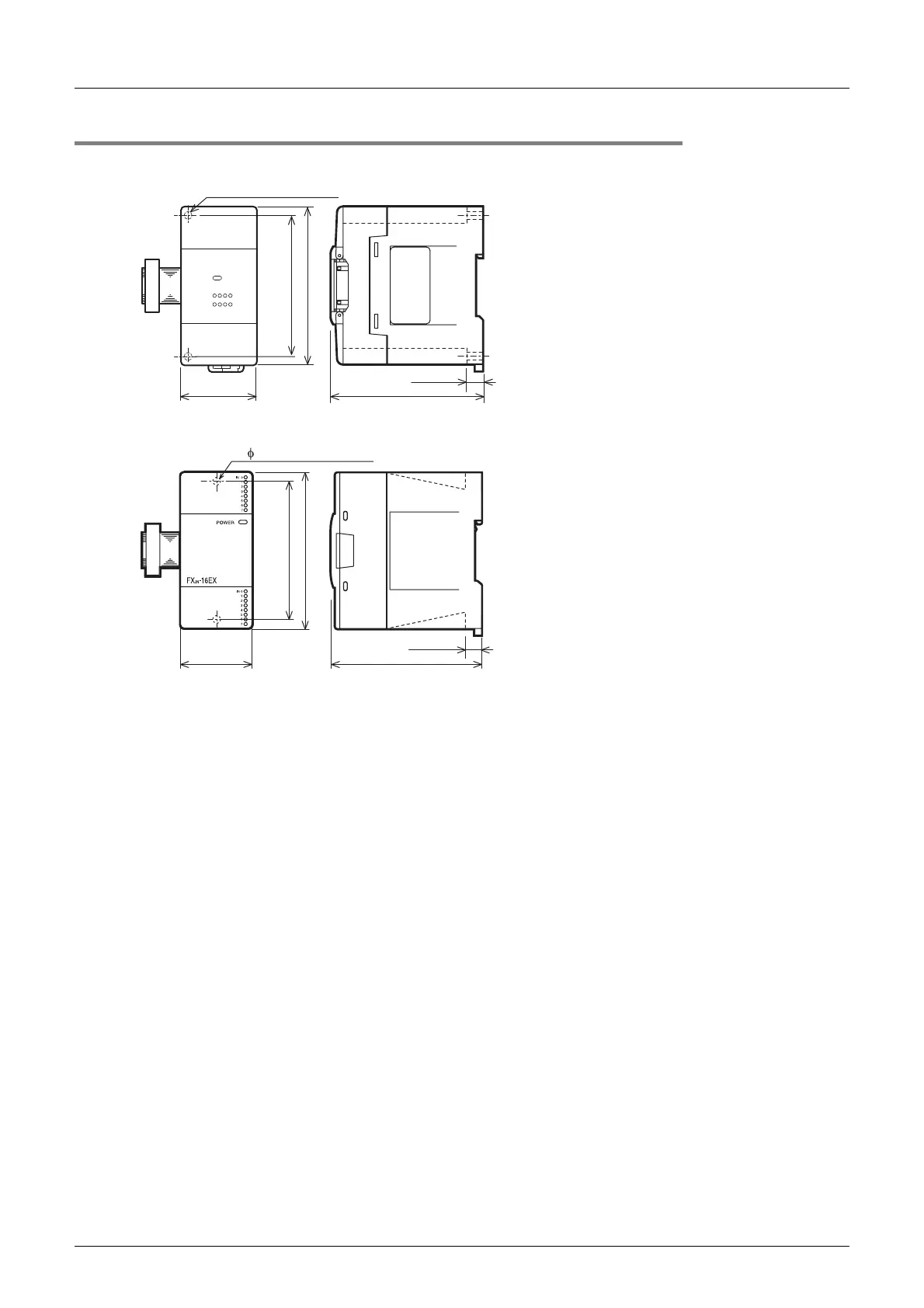

16.4.3 External dimensions

FX2N-8EX-ES/UL

2N-16EX-ES/UL

FX2N-8EX-ES

POWER

7654

43(1.7")

Unit:mm (inches)

2-φ4.5 mounting holes

80(3.15")

(mounting hole pitch)

90(3.55")

87(3.43")

9(0.36")

87(3.43")

80(3.15")

(mounting hole pitch)

90(3.55")

Unit:mm (inches)

9(0.36")

40(1.58")

2- 4.5 mounting holes
