Mitsubishi FX3U-4HSX-ADP - Fx 3 U -485-Bd; Fx -8 Av-Bd; Fx -Cnv-Bd

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
377
18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.4 Expansion Board
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

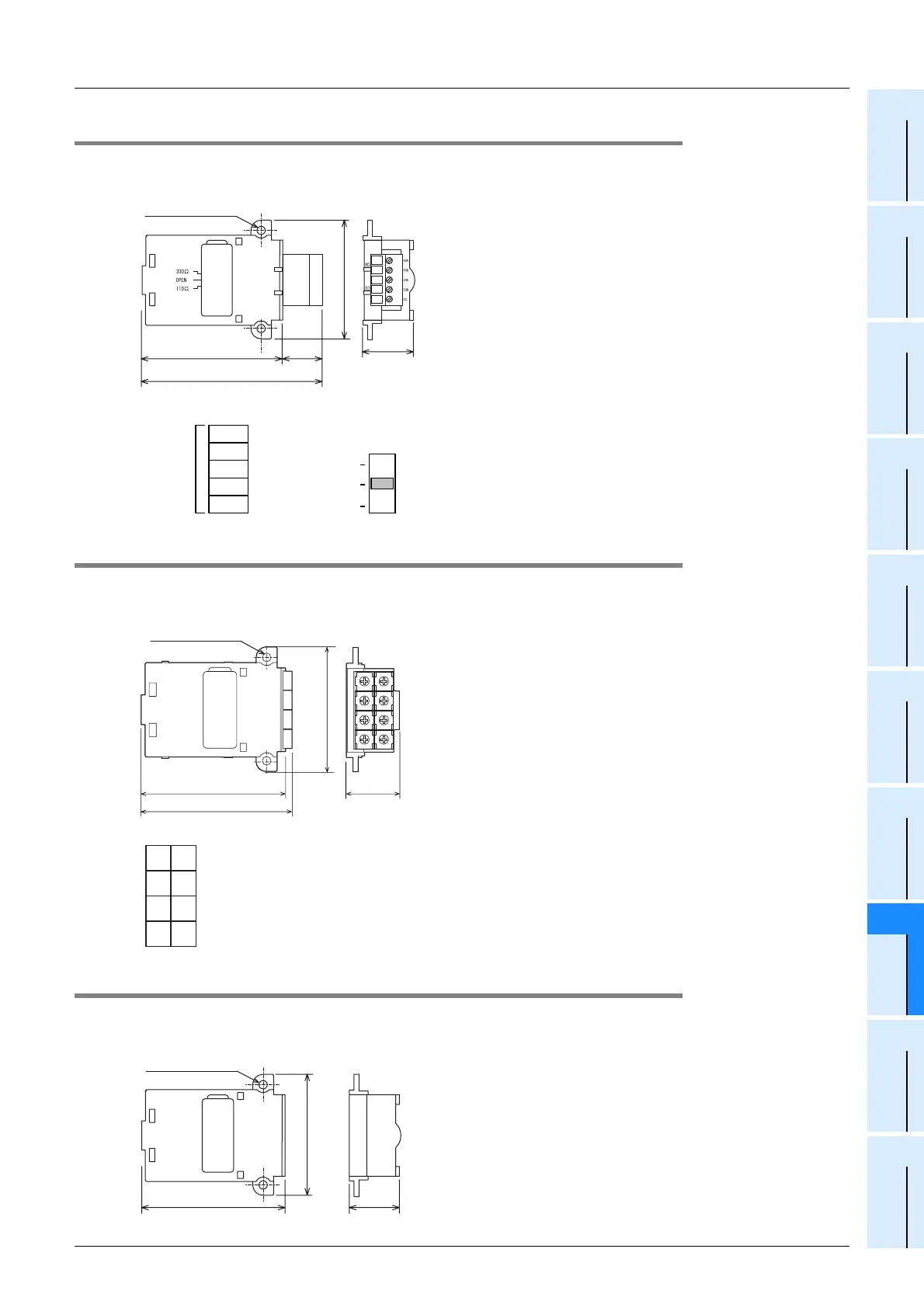

18.4.4 FX3U-485-BD
External Dimensions
•MASS(Weight): 20g (0.05lbs)
•Accessories: Two M3 tapping screws (for
installation of board),
Label for indication of link
station number,
Manual supplied with product
•Terminal block: European type
•Terminal resistance:330Ω/110Ω, built-in
Terminal Layout
18.4.5 FX3U-8AV-BD
External Dimensions
•MASS(Weight): 20g (0.05lbs)
•Accessories: Two M3 tapping screws (for
installation of board),
Trimmer layout label,
Manual supplied with product
Trimmer Layout
18.4.6 FX3U-CNV-BD
External Dimensions
•MASS(Weight): 10g (0.03lbs)
•Accessories: Two M3 tapping screws (for
installation of board),
Manual supplied with product
53.5(2.11") 15.5
(0.62")
69.0(2.72")
46.1(1.82")
Unit:mm (inches)
19.6
(0.78")
2-φ3.2
mounting holes
RDA
RDB
SDA
SDB
SG
5 poles
110
Ω
Terminal resistance
setting switch
330
Ω
OPEN
55.9(2.20")
53.5(2.11") 19.7
(0.78")
46.1(1.82")
2-φ3.2
mounting holes
Unit:mm (inches)
VR0
VR1
VR2 VR3
VR4 VR5
VR6 VR7
53.5(2.11")
46.1(1.82")
Unit:mm (inches)
19.6
(0.78")
2-φ3.2
mounting holes
