Mitsubishi FX3U-4HSX-ADP User Manual

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
375
18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.3 Special Adapters
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

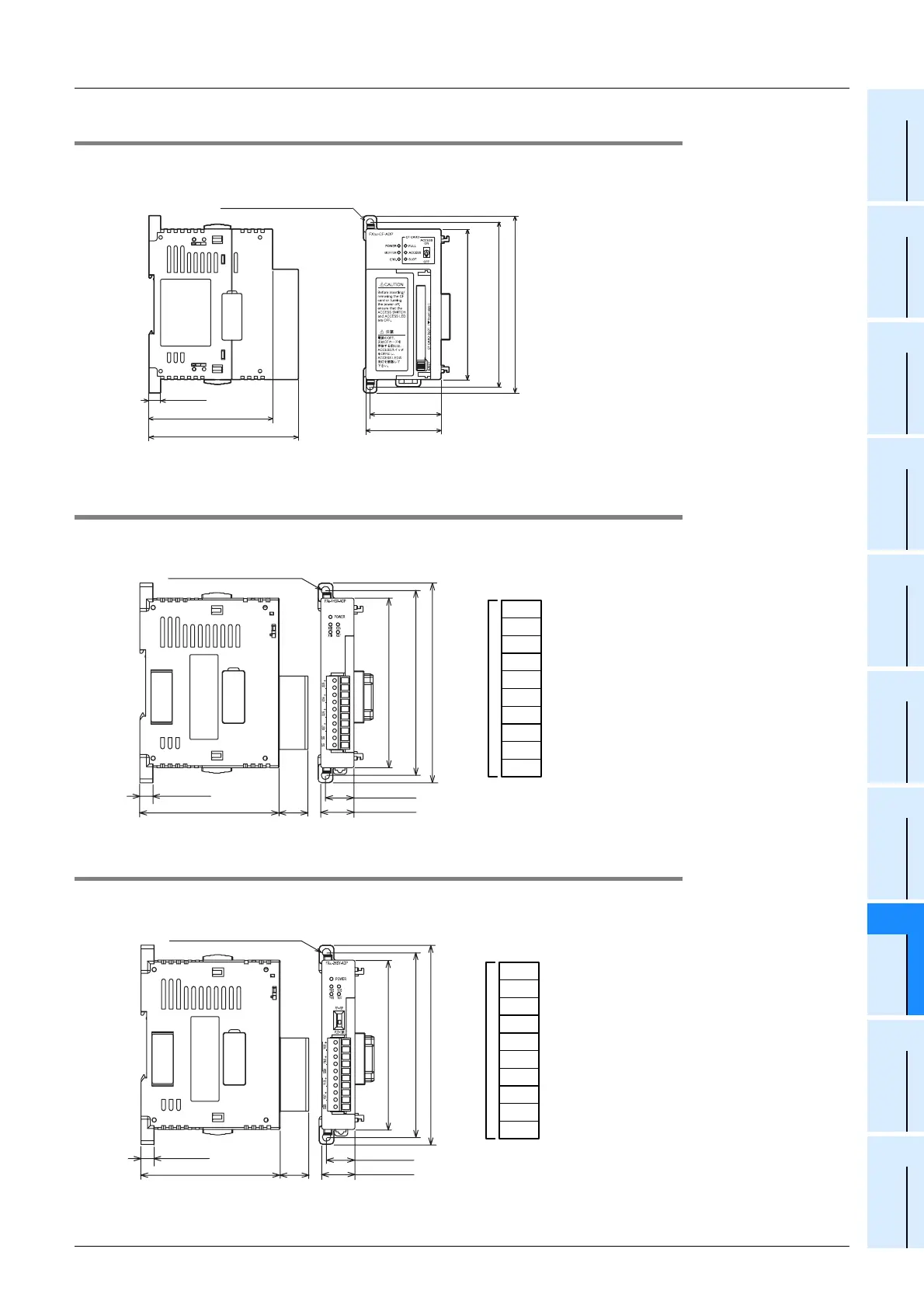

18.3.9 FX3U-CF-ADP
External Dimensions, Terminal Layout
•MASS(Weight): 0.3kg (0.66lbs)
(CF card not attached)
•Installation: 35 mm (1.38") wide DIN rail
or screws
•Accessories:
FX 2NC -100MPCB Power
supply cable [1m(3’3
" )]
Dust proof protection sheet
Manual supplied with product
18.3.10 FX3U-4HSX-ADP
External Dimensions, Terminal Layout
•MASS(Weight): 80g (0.18lbs)
•Installation: 35 mm (1.38") wide DIN rail
or screws
•Accessories:
Manual supplied with product
•Terminal block: European type
18.3.11 FX3U-2HSY-ADP
External Dimensions, Terminal Layout
•MASS(Weight): 80g (0.18lbs)
•Installation: 35 mm (1.38") wide DIN rail
or screws
•Accessories:
Manual supplied with product
•Terminal block: European type
•Switch: Output form switching
between PLS•EDIR and
FP•ERP
7(0.28")
89.5(3.53")
90(3.55")
98(3.86")
(mounting hole pitch)
106(4.18")
45(1.78")
42.5(1.68")
74(2.92")
Unit:mm (inches)
2-φ4.5 mounting holes
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2-φ4.5 mounting holes
X0/3+
X0/3-
X1/4-
X2/5+
X2/5-
X6/7+
X6/7-
SG
10
poles
X1/4+
SG
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2-φ4.5 mounting holes
Y0/2+
Y0/2-
Y4/6-
SGA
Y1/3+
Y1/3-
Y5/7+
SGB
10
poles
Y4/6+
Y5/7-
