13 Examples of Wiring for Various Uses
13.6 Seven Segment with Latch [SEGL Instruction (FNC 74)/BCD Instruction (FNC 18)]
13.6.2 When BCD instructions are used

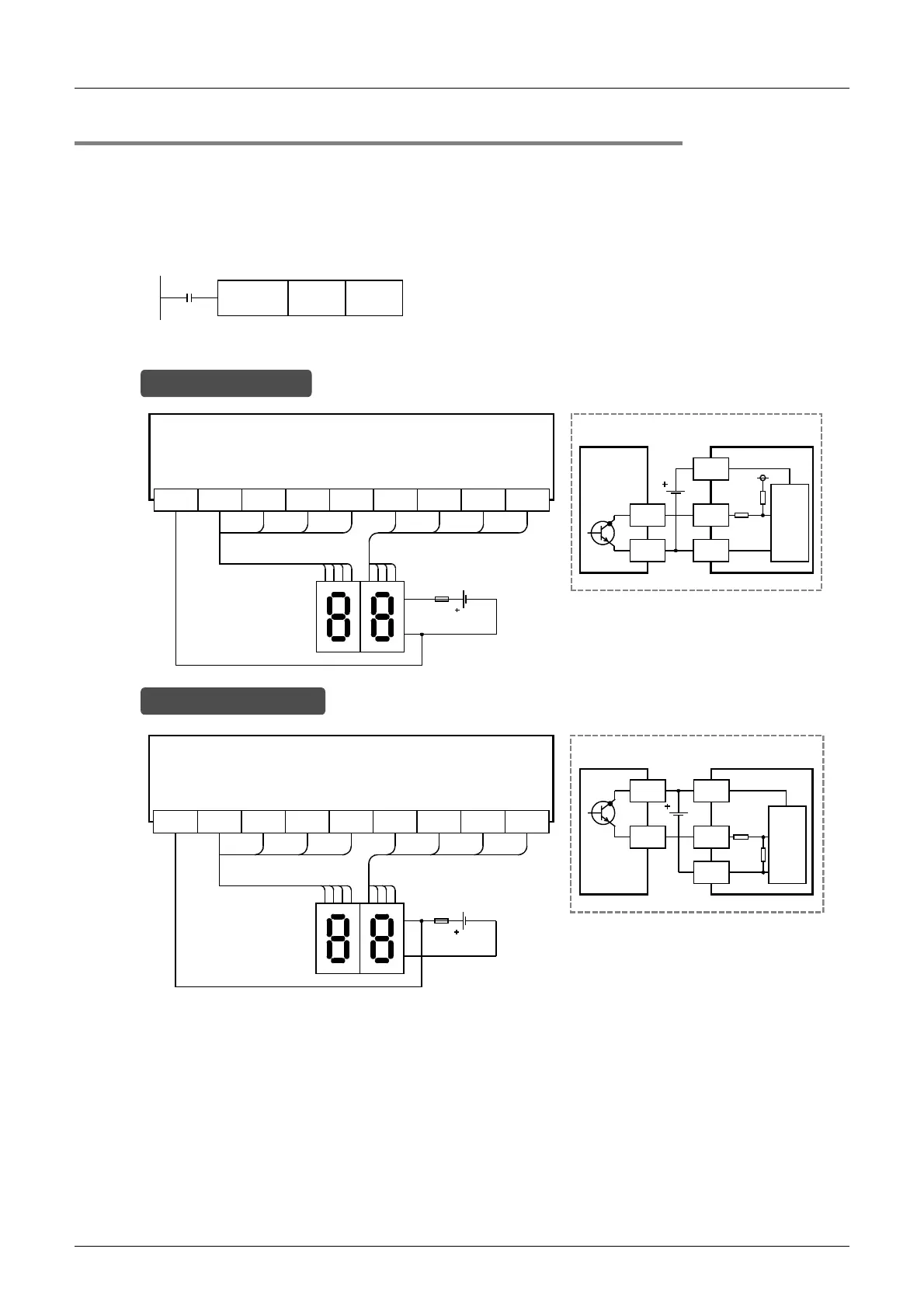

This subsection gives examples of wiring for displaying the current value of D100 on the 2-digit 7-segment
display.
1. Main Unit
Example of program
Example of wiring
M8000
D100 K2Y010BCD
Y010COM3 Y011 Y012 Y013 Y014 Y015 Y016 Y017
12481248
8421 8421
Transistor output (sink)
Main unit (Ex: FX
3U-32MT/ES)
Signal
-
Internal
circuit
7-segment display
+
Y
COM1
PLC
7-segment display to be used for sink
wiring (in case of transistor output)
In case of sink wiring
Y010+V2 Y011 Y012 Y013 Y014 Y015 Y016 Y017
12481248
8421 8421
Transistor output (source)
Signal
-
7-segment display
+
Y
PLC
+V0
7-segment display to be used for source
wiring (in case of transistor output)
Main unit (Ex: FX
3U-32MT/ESS)
Internal
circuit
In case of source wiring
