13 Examples of Wiring for Various Uses
13.6 Seven Segment with Latch [SEGL Instruction (FNC 74)/BCD Instruction (FNC 18)]
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block
2. Input/output powered extension units

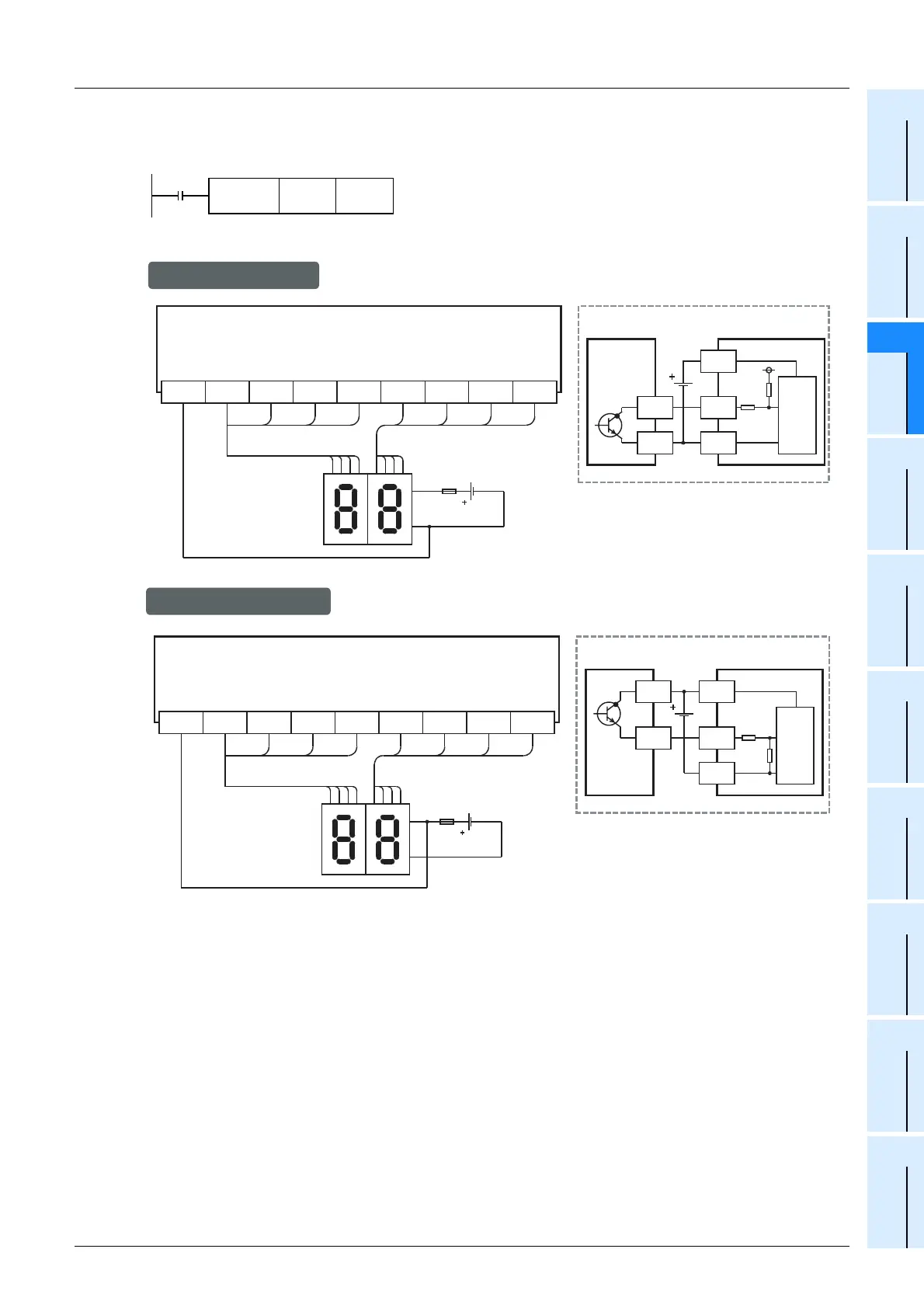

Example of program
Examples of wiring
M8000
D100 K2Y020BCD
Y020COM1 Y021 Y022 Y023 Y024 Y025 Y026 Y027
12481248
8421 8421
Transistor output (sink)
Input/output powered extension unit
FX
2N-32ET
FX
2N-48ET
Signal
-
7-segment display
+
Y
COM1
PLC
7-segment display to be used for sink
wiring (in case of transistor output)
Internal
circuit
In case of sink wiring
Y020+V0 Y021 Y022 Y023 Y024 Y025 Y026 Y027
12481248
8421 8421
Transistor output (source)
Signal
-
7-segment display
+
Y
PLC
+V0
7-segment display to be used for source
wiring (in case of transistor output)
Input/output powered extension unit
FX
2N-32ET-ESS/UL
FX
2N-48ET-ESS/UL
Internal
circuit
In case of source wiring
