FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
360
18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.1 Special Function Units/Blocks

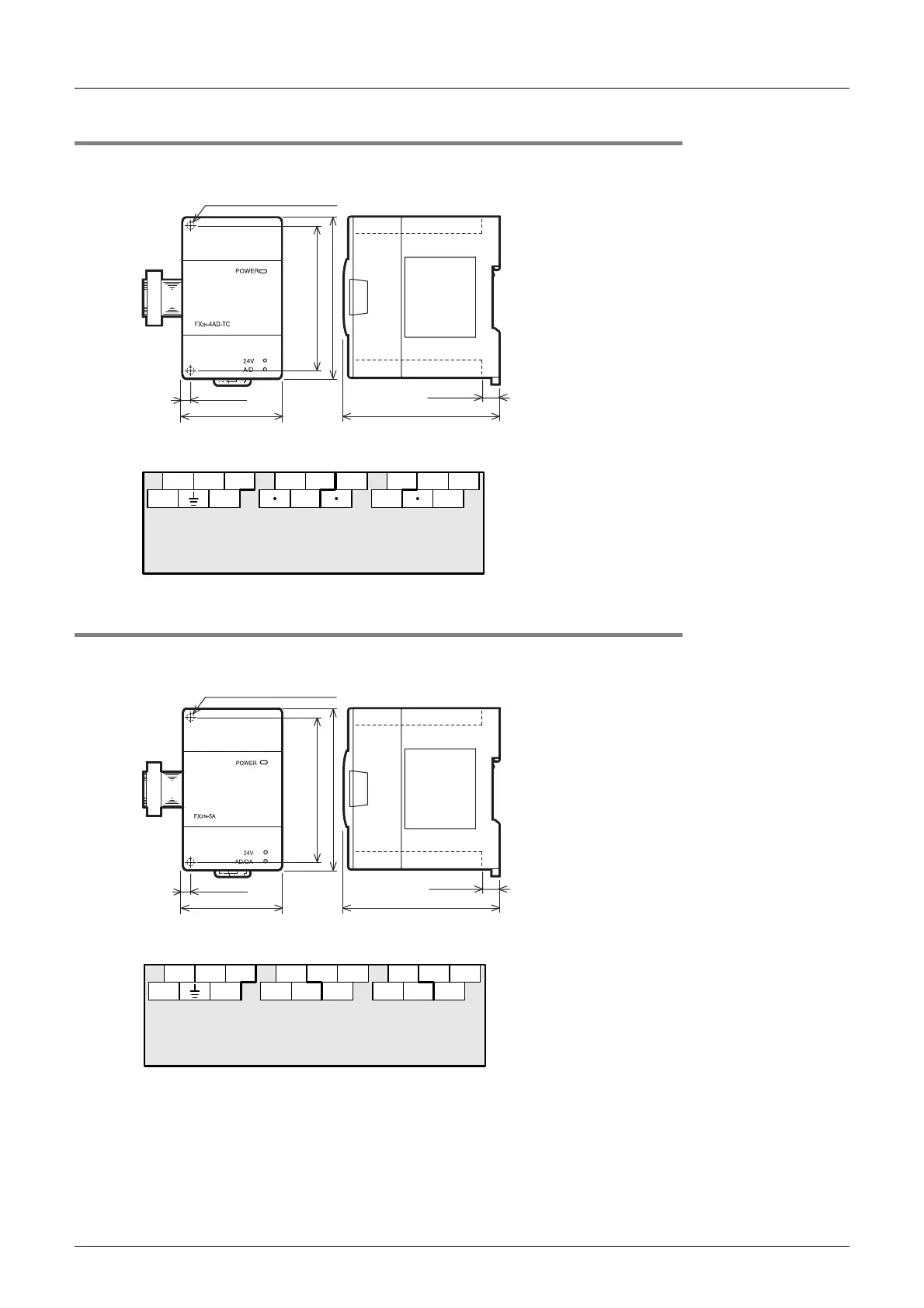

18.1.9 FX2N-4AD-TC
External Dimensions
•MASS(Weight): 0.3kg (0.66lbs)
•Installation: 35 mm (1.38") wide DIN rail
or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
18.1.10 FX2N-5A
External Dimensions
•MASS(Weight): 0.3kg (0.66lbs)
•Installation: 35 mm (1.38") wide DIN rail
or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-φ4.5 mounting holes
24+
24- SLD L-
L+
SLD L- SLD
L+ L+
L- SLD L-
L+
CH1 CH2 CH3 CH4
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-φ4.5 mounting holes
24+
24- V+ I+
VI-
VI- V+ I+
I+ V+
VI- V+ I+
VI-
OUT IN1 IN2 IN3
V+ VI- I+
IN4
