Mitsubishi FX3U-4HSX-ADP User Manual

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
369
18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.1 Special Function Units/Blocks
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

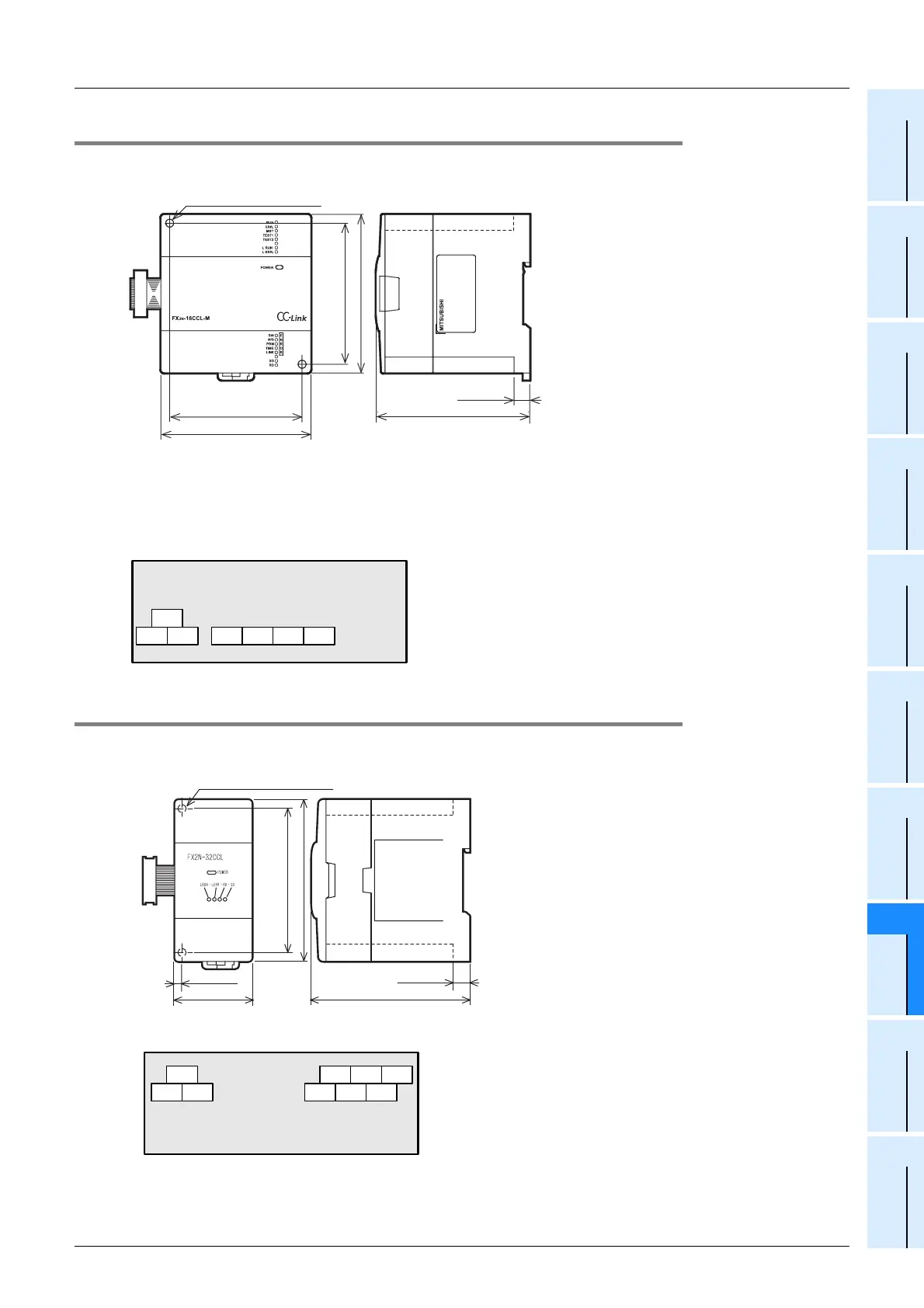

18.1.26 FX2N-16CCL-M
External Dimensions
•MASS(Weight): 0.4kg (0.88lbs)
•Installation: 35mm (1.38") wide DIN rail
or screws
•Accessories: Label for indication of special
unit/block number,
Terminal resistor:
2 resistors for CC-Link
dedicated cable/2 resistors
for CC-Link dedicated high-
performance cable,
Manual supplied with product
•Terminal block: M3 screw for power supply
terminal
M3.5 screw for signal
terminal
•The extension cable is already connected to
the extension block
Terminal Layout
18.1.27 FX2N-32CCL
External Dimensions
•MASS(Weight): 0.2kg (0.44lbs)
•Installation: 35mm (1.38") wide DIN rail
or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
75(2.96")
(mounting hole pitch)
9(0.36")
85(3.35")
2-φ4.5 mounting holes
24+
24-
SLDFG DG DA DB
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
43(1.7")
2-φ4.5 mounting holes
DA DB SLD
DA DB DG
24+
24-
FG
