FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
433
19 FX3U-7DM (Display Module)
19.23 User Message Display Function
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

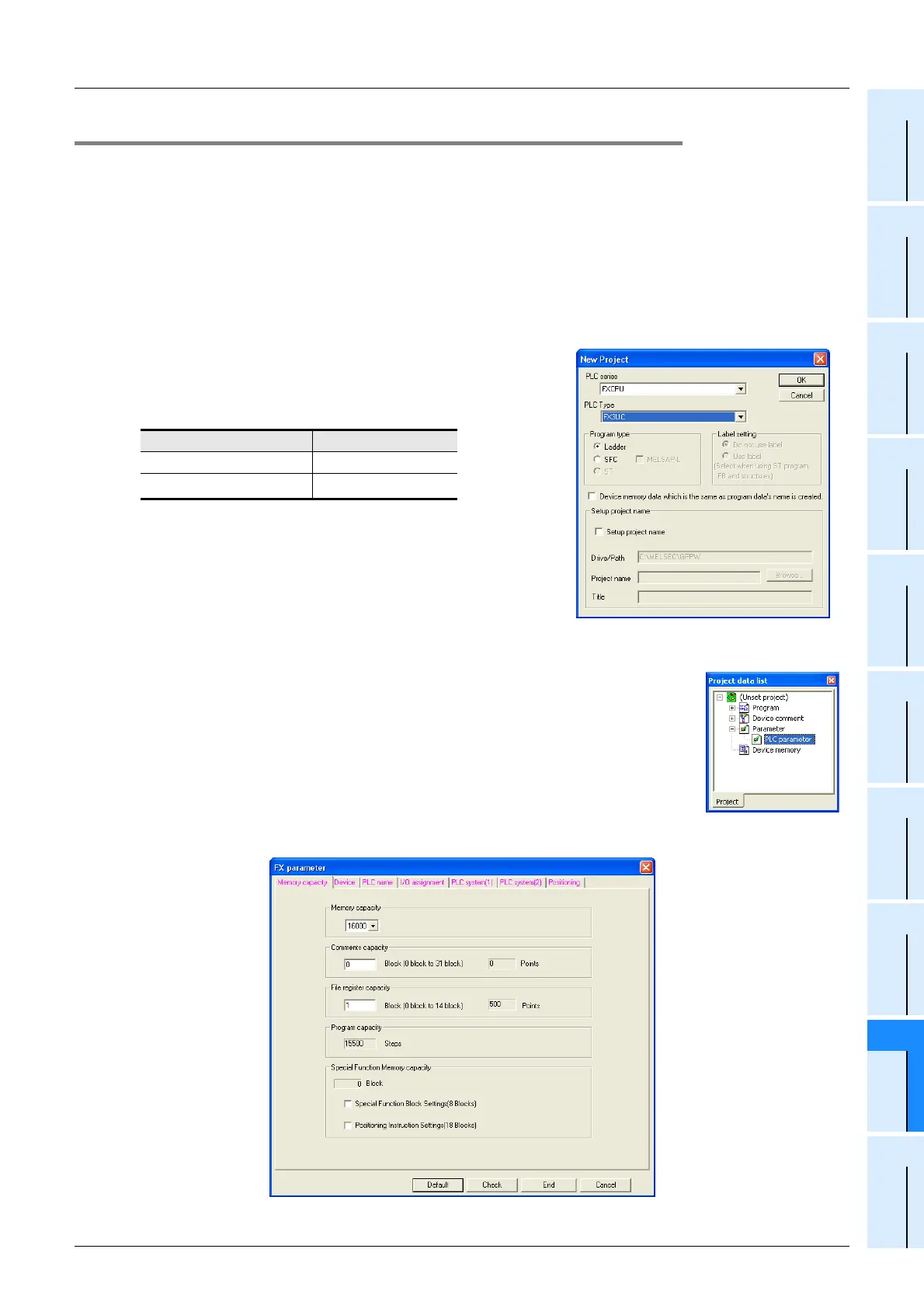

19.23.7 Character data input procedure
User messages are entered and assigned to file registers in advance, using GX Developer.
Messages are displayed by a file register → data register transfer, with the message being created in place of
the numeric values, etc.
32 data register points are assigned to each message.
1 Starting GX Developer
To start up GX Developer, click the Windows
®
[Start] button, then click [Programs] - [MELSOFT
Application] - [GX Developer].
2 Setting The PLC Model Name
Set the "PLC series" and the "PLC Type" settings as
shown below.
*1. For Ver. 8.18U to 8.24A of GX Developer, the PLC type
is FX3UC.
3 Parameter Settings
To specify the parameter settings, select "PLC parameter" from the project
data list.
If the project data list does not display, click the toolbar’s [Display] - [Project
data list] items.
Click the "Memory capacity" tab to perform file register assignments.
Required Setting Items Setting Content
PLC series FXCPU
PLC Type
FX3U(C)
*1
