FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
373
18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.3 Special Adapters
11
High-Speed
Counters
12
Output Wiring
13
Wiring for
Various Uses
14
Test Run,
Maintenance,
Troubleshooting
15
IInput/Output
Powered
Extension Units
16
Input/Output
Extension
Blocks
17
Extension
Power Supply
Unit
18
Other Extension
Units and
Options
19
Display Module
20
Terminal Block

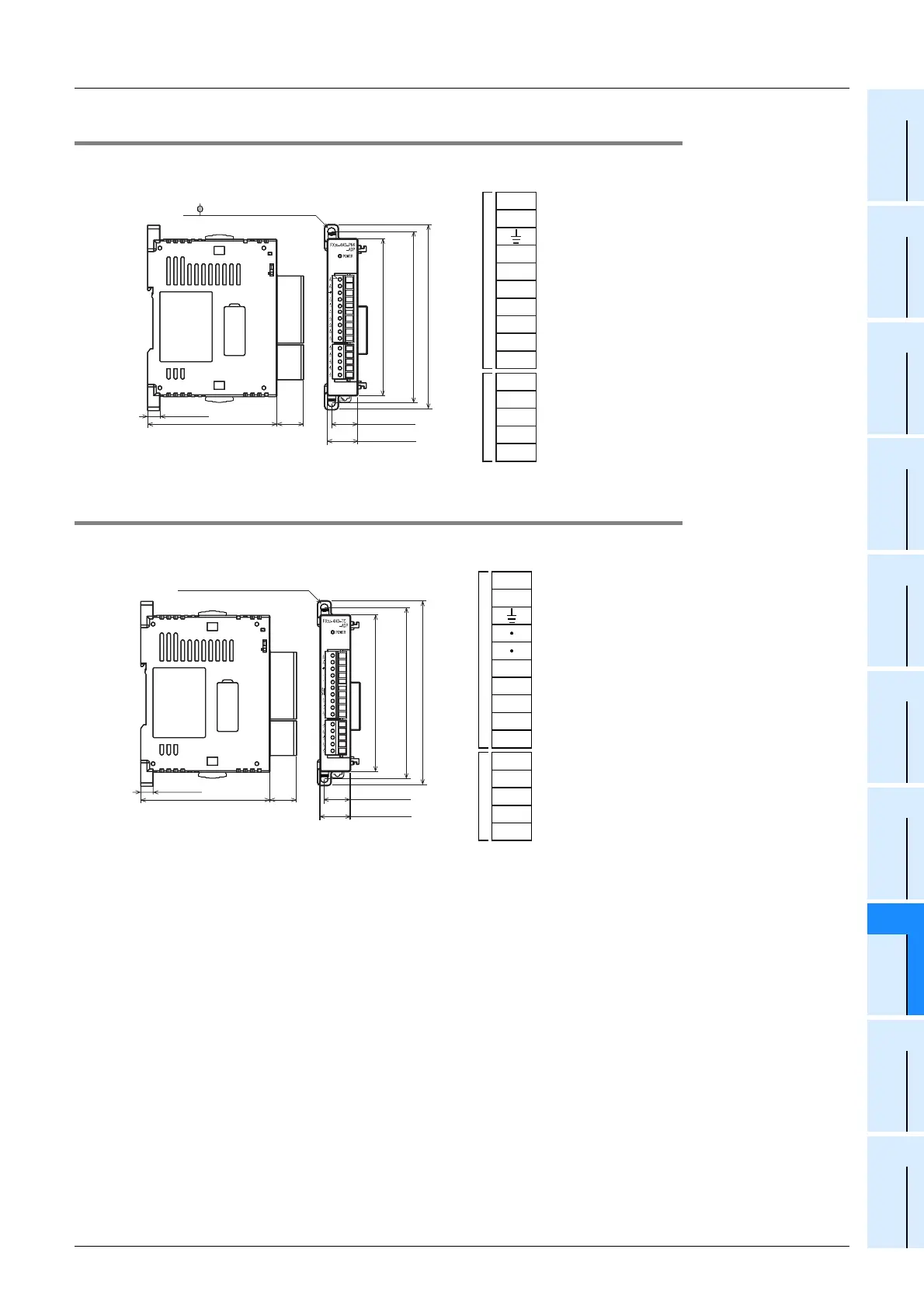

18.3.5 FX3U-4AD-PNK-ADP
External Dimensions, Terminal Layout
•MASS(Weight): 0.1kg (0.22lbs)
•Installation: 35 mm (1.38") wide DIN rail
or screws
•Accessories:
Manual supplied with product
•Terminal block: European type
18.3.6 FX3U-4AD-TC-ADP
External Dimensions, Terminal Layout
•MASS(Weight): 0.1kg (0.22lbs)
•Installation: 35 mm (1.38") wide DIN rail
or screws
•Accessories:
Manual supplied with product
•Terminal block: European type
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2- 4.5 mounting holes
24+
24-
L1+
L1-
I1-
L2+
L2-
I2-
L3+
L3-
I3-
L4+
L4-
I4-
10
poles
5
poles
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2-φ4.5 mounting holes
10
poles
5
poles
24+
24-
L1+
L1-
L2+
L2-
L3+
L3-
L4+
L4-
J-type
J-type
