62
4 Specifications, External Dimensions and Terminal Layout (Main Units)
4.4 Output Specifications
FX3U Series Programmable Controllers
User’s Manual - Hardware Edition

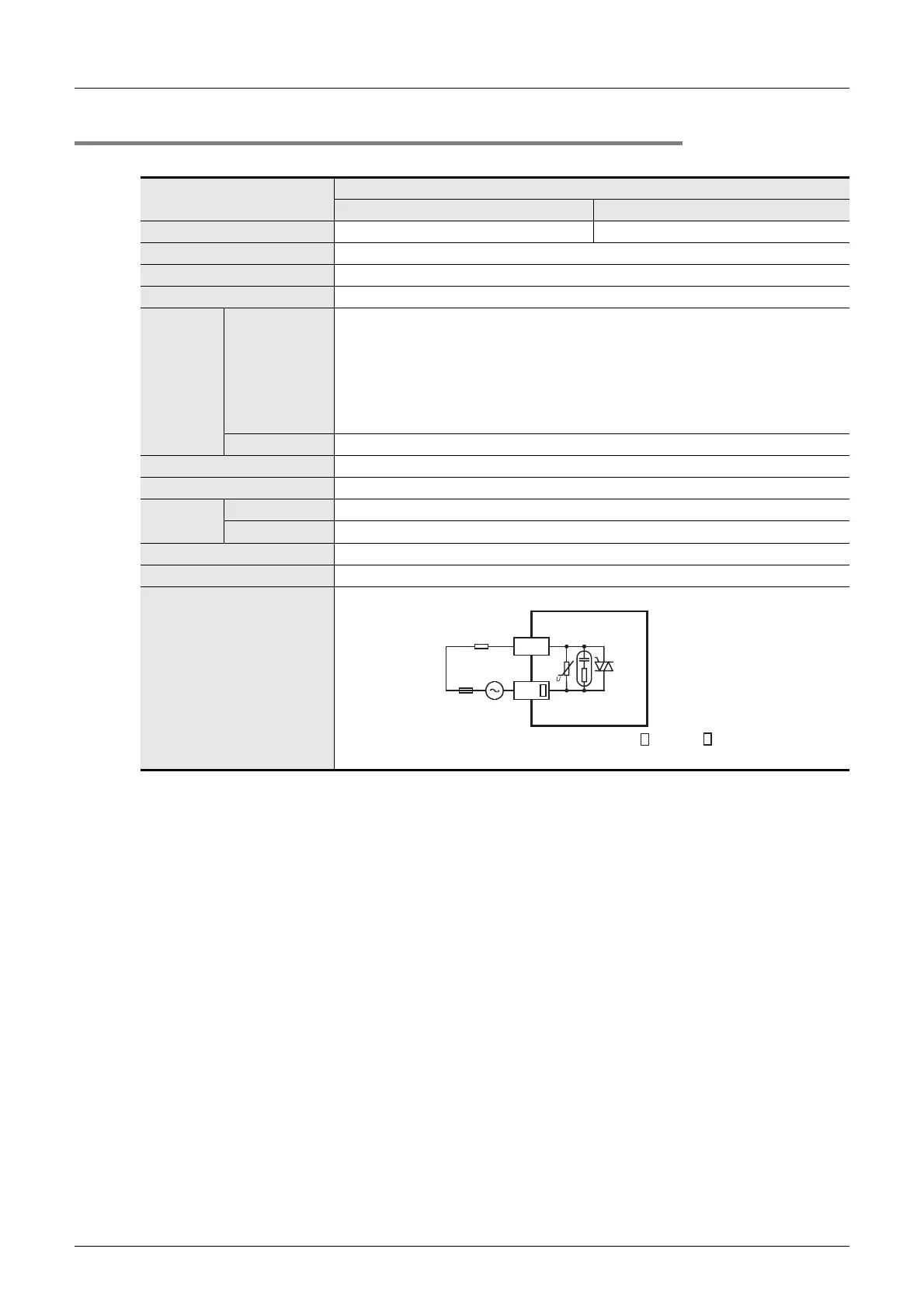

4.4.5 Triac output type
Item
Triac output specifications
FX3U-32MS/ES FX3U-64MS/ES
Number of output points
16 points 32 points
Connecting type Removable terminal block (M3 screw)
Output type Triac output (SSR)
External power supply 85 to 242V AC
Max. load
Resistance load
0.3 A / point
The total load current of resistance loads per common terminal should be the
following value.
→ For details on the common terminal for each model,
refer to the terminal block layout.
• 4 output points/common terminal: 0.8 A or less
• 8 output points/common terminal: 0.8 A or less
Inductive load 15VA/100V AC, 30VA/200V AC
Open circuit leakage current 1 mA/100V AC, 2 mA/200V AC
Min. load 0.4VA/100V AC, 1.6VA/200V AC
Response
time
OFF→ON 1 ms or less
ON→OFF 10 ms or less
Circuit insulation Photo-thyristor insulation
Display of output operation LED on panel lights when photo-thyristor is driven.
Output circuit configuration
Load
Fuse
External
power supply
Y
COM
common number applies to the of [COM ].
To Next Page
