FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
370
18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.1 Special Function Units/Blocks
18.1.28 FX3U-64CCL

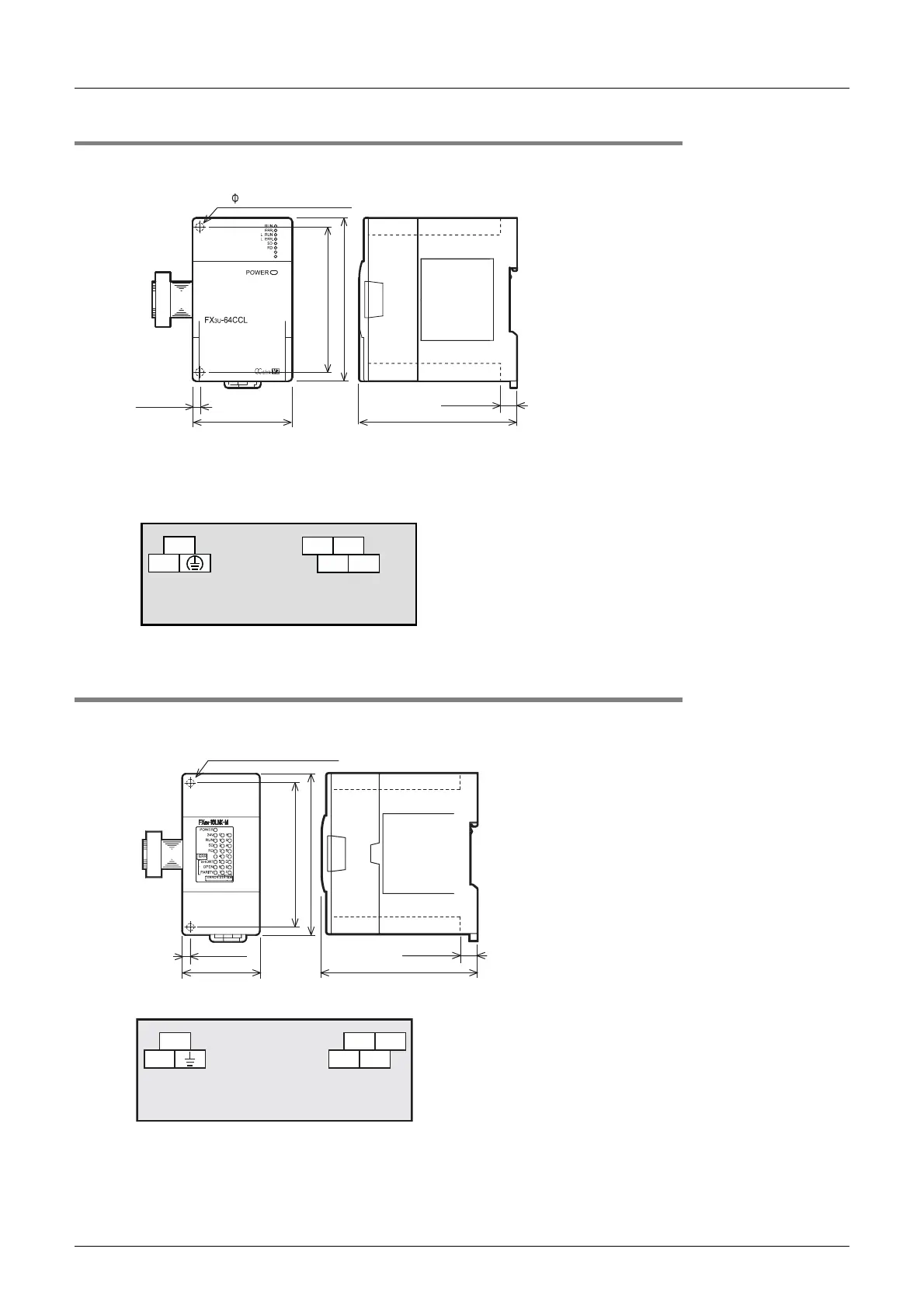

External Dimensions
•MASS(Weight): 0.3kg (0.66lbs)
•Installation: 35mm (1.38") wide DIN rail
or screws
•Accessories: Label for indication of special
unit/block number,
Dust Proof sheet,
Manual supplied with product
•Terminal block: M3 screws for power supply
terminal, CC-Link connection
terminal,
M3.5 screws for CC-Link
connection terminal block
mounting screws (black)
•The extension cable is already connected to
the extension block
Terminal Layout
18.1.29 FX2N-16LNK-M
External Dimensions
•Installation: 35mm (1.38") wide DIN rail
or screws
•Accessories: Label for indication of special
unit/block number,
Manual supplied with product
•Terminal block: M3 screws
•The extension cable is already connected to
the extension block
Terminal Layout
4.5 mounting holes
2-
Unit:mm (inches)
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
4(0.16")
9(0.36")
55(2.17")
24+
24-
DG SLD
DA DB
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
43(1.7")
2-φ4.5 mounting holes
24+
24-
DATA
RUNA
DG
RUNB
