16 FX2N-8/16E*-*(Input/Output Extension Blocks)
16.7 FX2N-8EX-UA1/UL (100V AC Input)
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

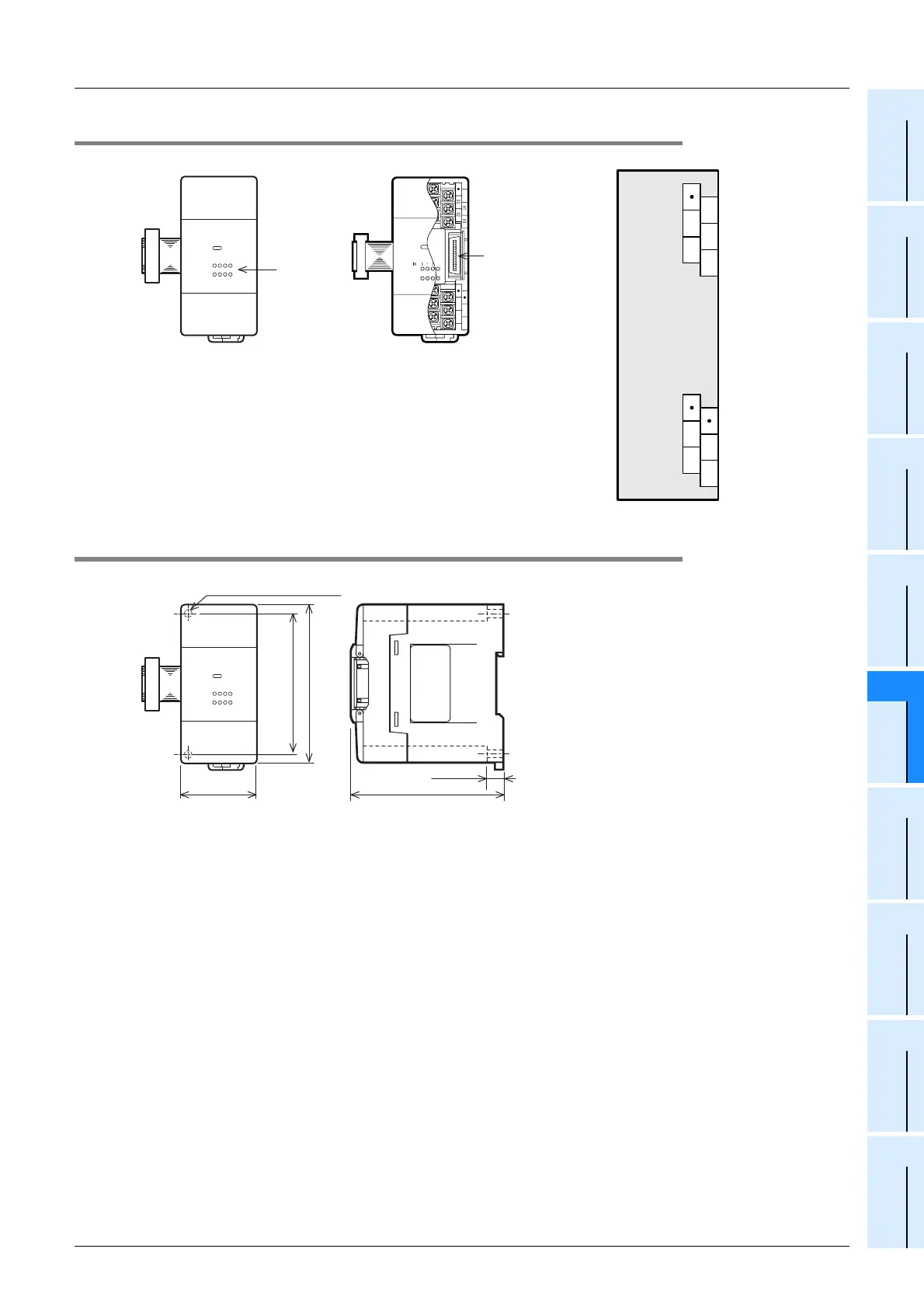

16.7.2 Parts identification and terminal arrangement
16.7.3 External dimensions
IN
FX2N-8EX-UA1
POWER
0 1 23
7654
With cover
Input
indicator
lamps
(LED lamps)
Without cover
Rear line
extension
connector
FX2N-
COM
X5
X7
X4
X6
654
COM
X0
X1
X2
X3
X4
X5
X6
X7
FX 2N -8EX-UA1/UL
IN
FX2N-8EX-UA1
POWER
0 1 23
7654
43(1.7")
Unit:mm (inches)
2-φ4.5 mounting holes
80(3.15")
(mounting hole pitch)
90(3.55")
87(3.43")
9(0.36")
