FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
144
8 Installation In Enclosure

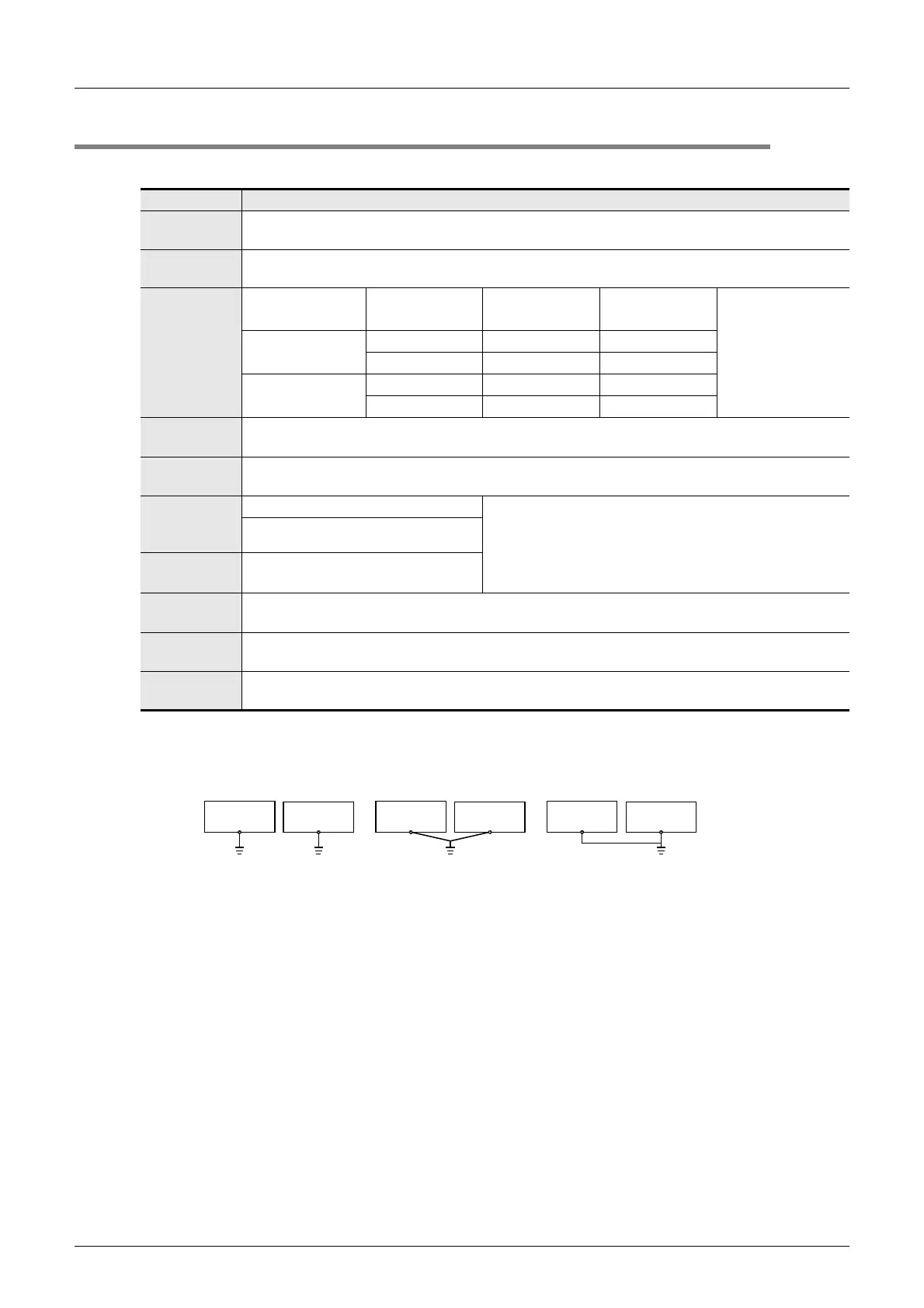

8.1 Generic Specifications
8.1 Generic Specifications
*1. The criterion is shown in IEC61131-2.
*2. Ground the PLC independently or jointly.
→ Refer to Section 9.4.
*3. For more information on the dielectric withstand voltage test and the insulation resistance test of the
terminals of each product, refer to the following subsection.
→ Refer to Subsection 4.1.1.
*4. Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the
PLC.
Item Specification
Ambient
temperature
0 to 55°C (32 to 131°F) when operating and -25 to 75°C (-13 to 167°F) when stored
Ambient
humidity
5 to 95%RH (no condensation) when operating
Vibration
resistance
*1
Frequency
(Hz)
Acceleration
(m/s
2
)
Half amplitude
(mm)
Sweep Count for X,
Y, Z: 10 times
(80 min in each
direction)
When installed on
DIN rail
10 to 57 − 0.035
57 to 150 4.9 −
When installed
directly
10 to 57 − 0.075
57 to 150 9.8 −
Shock
resistance
*1
147 m/s
2
Acceleration, Action time: 11ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise
resistance
By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 µs, rise time of 1 ns and period of
30 to 100 Hz
Dielectric
withstand
voltage
*3
1.5kV AC for one minute
Between each terminals and ground terminal
500V AC for one minute
Insulation
resistance
*3
5MΩ or more by 500V DC megger
Grounding
Class D grounding (grounding resistance: 100 Ω or less)
<Common grounding with a heavy electrical system is not allowed.>
*2
Working
atmosphere
Free from corrosive or flammable gas and excessive conductive dusts
Working
altitude
<2000m
*4
PLC
Other
equipment
Shared grounding
Good condition
Common grounding
Not allowed
Independent grounding
Best condition
PLC
Other
equipment
PLC
Other
equipment
