FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
57
4 Specifications, External Dimensions and Terminal Layout (Main Units)
4.3 Input Specifications
1
Introduction
2
Features and
Part Names
3
Product
Introduction
4
Specifications
5
Version and
Peripheral
Devices
6
System
Configuration
7
Input/Output
Nos., Unit Nos.
8
Installation
9
Preparation and
Power Supply
Wiring
10
Input Wiring

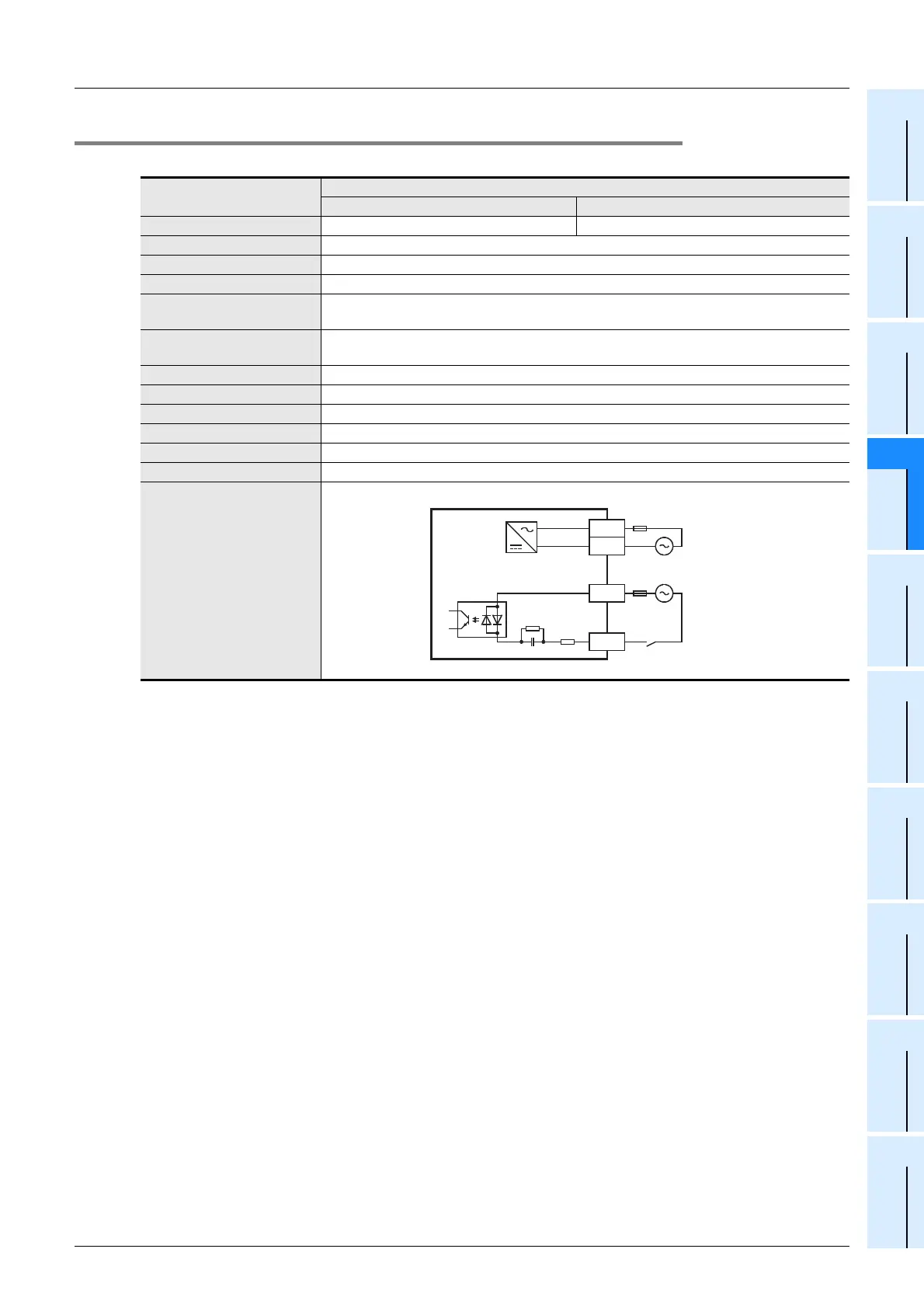

4.3.2 100V AC input type
→ For handling of 100V AC input, refer to Subsection 10.3.2.
Item
Specifications
FX3U-32MR/UA1 FX3U-64MR/UA1
Input points 16 points 32 points
Connection type Removable terminal block (M3 screw)
Input form AC input
Input signal voltage 100 to 120V AC +10%, -15% 50/60Hz
Input impedance
Approx. 21kΩ/50Hz
Approx. 18kΩ/60Hz
Input signal current
4.7 mA/100V AC 50 Hz (70% or less when turned on simultaneously)
6.2 mA/110V AC 60 Hz (70% or less when turned on simultaneously)
ON input sensitivity current 3.8 mA or more
OFF input sensitivity current 1.7 mA or less
Input response time Approx. 25 to 30 ms (A high-speed receiving is improper)
Input signal form Contact input
Input circuit insulation Photo-coupler insulation
Indication of input operation LED on panel lights when input.
Input circuit diagram
*1 Input impedance
N
L
100 to 240V AC
100 to 120V AC
Fuse
X
COM
*1
