242

FX3U Series Programmable Controllers

User’s Manual - Hardware Edition

12 Output Wiring Procedures

12.3 External Wiring of Transistor Output (Sink/Source) Type

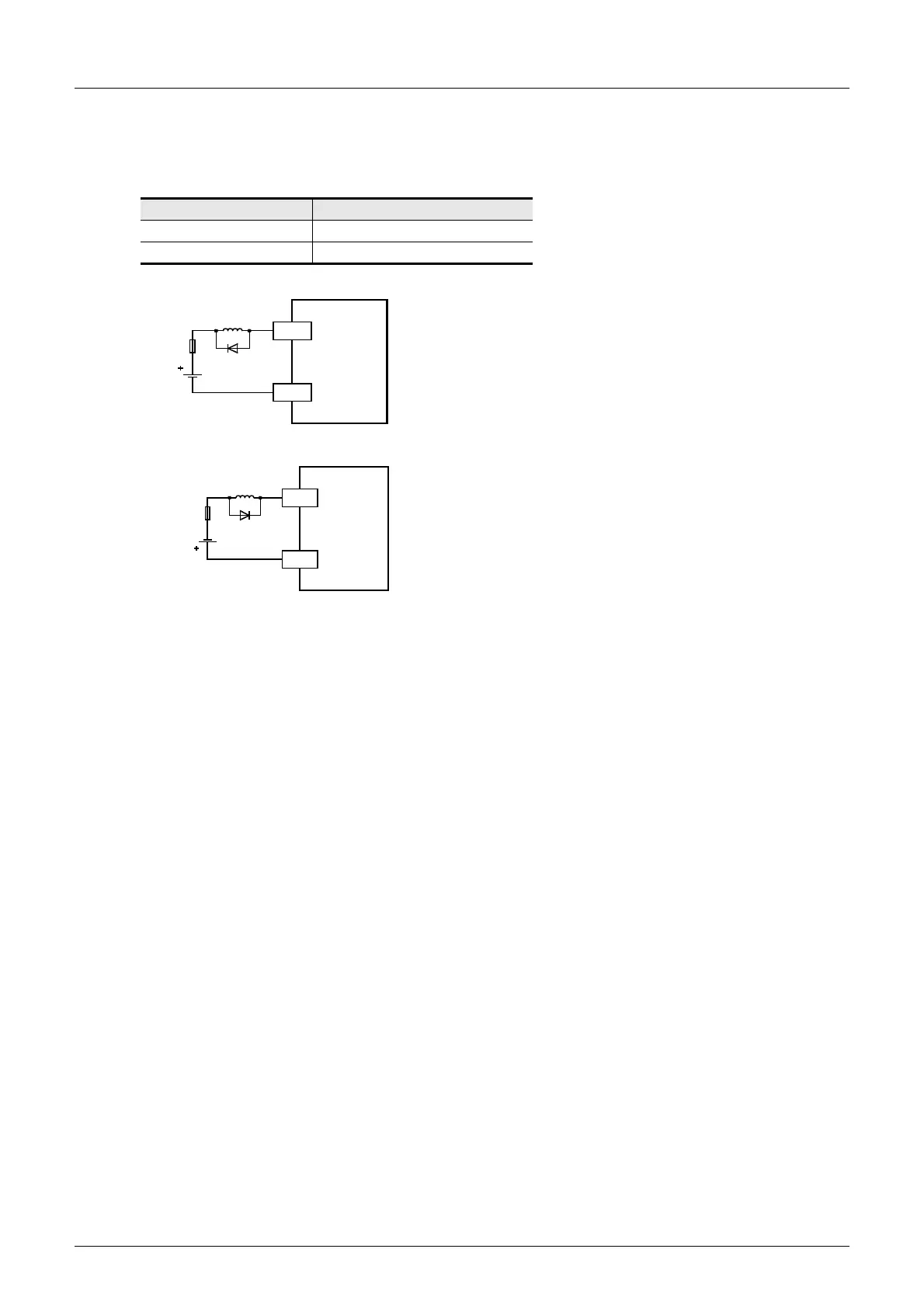

3. Contact protection circuit for inductive loads

When an inductive load is connected, connect a diode (for commutation) in parallel with the load as

necessary.

The diode (for commutation) must comply with the following specifications.

• External Wiring of Sink Output Type

• External Wiring of Source Output Type

Item Guide

Reverse voltage 5 to 10 times of the load voltage

Forward current Load current or more

PLC

COM1

Inductive

load

Fuse

PLC

+V0

Inductive

load

Fuse
