FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
12 Output Wiring Procedures

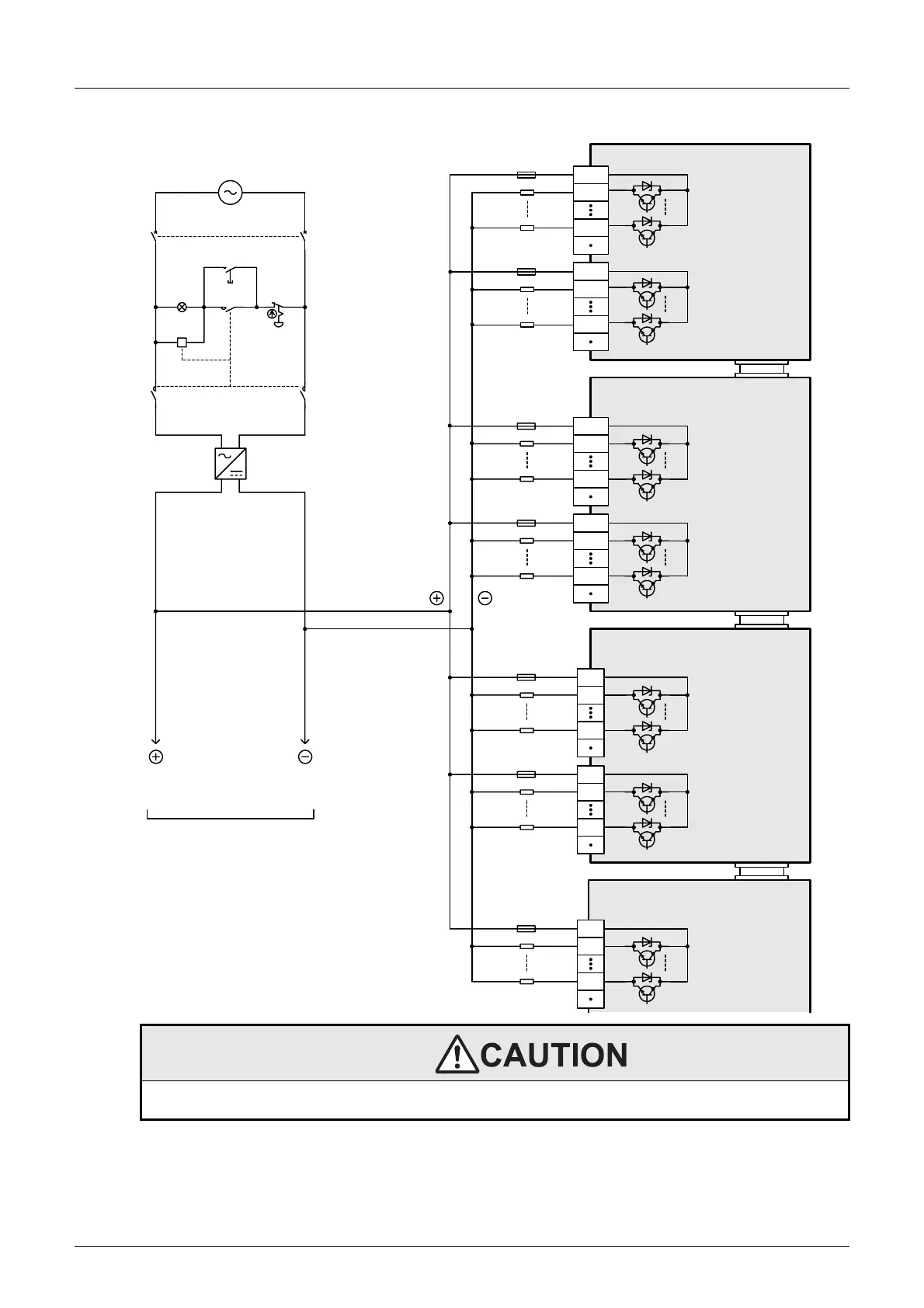

12.3 External Wiring of Transistor Output (Sink/Source) Type
2. Transistor output (source)
WIRING PRECAUTIONS
• Do not wire vacant terminals externally.
Doing so may damage the product.
Main unit
transistor output
(source)
Y0
+V0
Y7
Y0
+V1
Y7
Y0
+V0
Y7
Y0
+V1
Y7
Y0
+V0
Y7
AC power supply
100 to 240V
PL
Power ON
Emergency
stop
MC
MC
MC MC
DC power
supply
Power supply for load
connected to PLC output
For details on emergency
stop operation, refer to
"DESIGN PRECAUTIONS"
at "Safety Precautions" field.
Load
Load
Load
Load
Load
Output extension block
transistor output (source)
Input/output powered extension unit
transistor output (source)
Output extension block
transistor output (source)
* The output circuit of this PLC does not
have a built-in fuse.
Provide a fuse suitable to each load to
prevent blowout of the wires on the circuit
board caused by output element fracture
due to load short-circuiting.
Fuse*
Fuse*
Fuse*
Fuse*
Fuse*
Load
Fuse*
Fuse*
Load
Y0
+V0
Y3
Y4
+V1
Y7
Breaker
To Next Page
