Mitsubishi FX3U-4HSX-ADP User Manual

FX3U Series Programmable Controllers
User’s Manual - Hardware Edition
257
13 Examples of Wiring for Various Uses
13.4 Hexadecimal Input [HKY Instruction (FNC 71)]
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

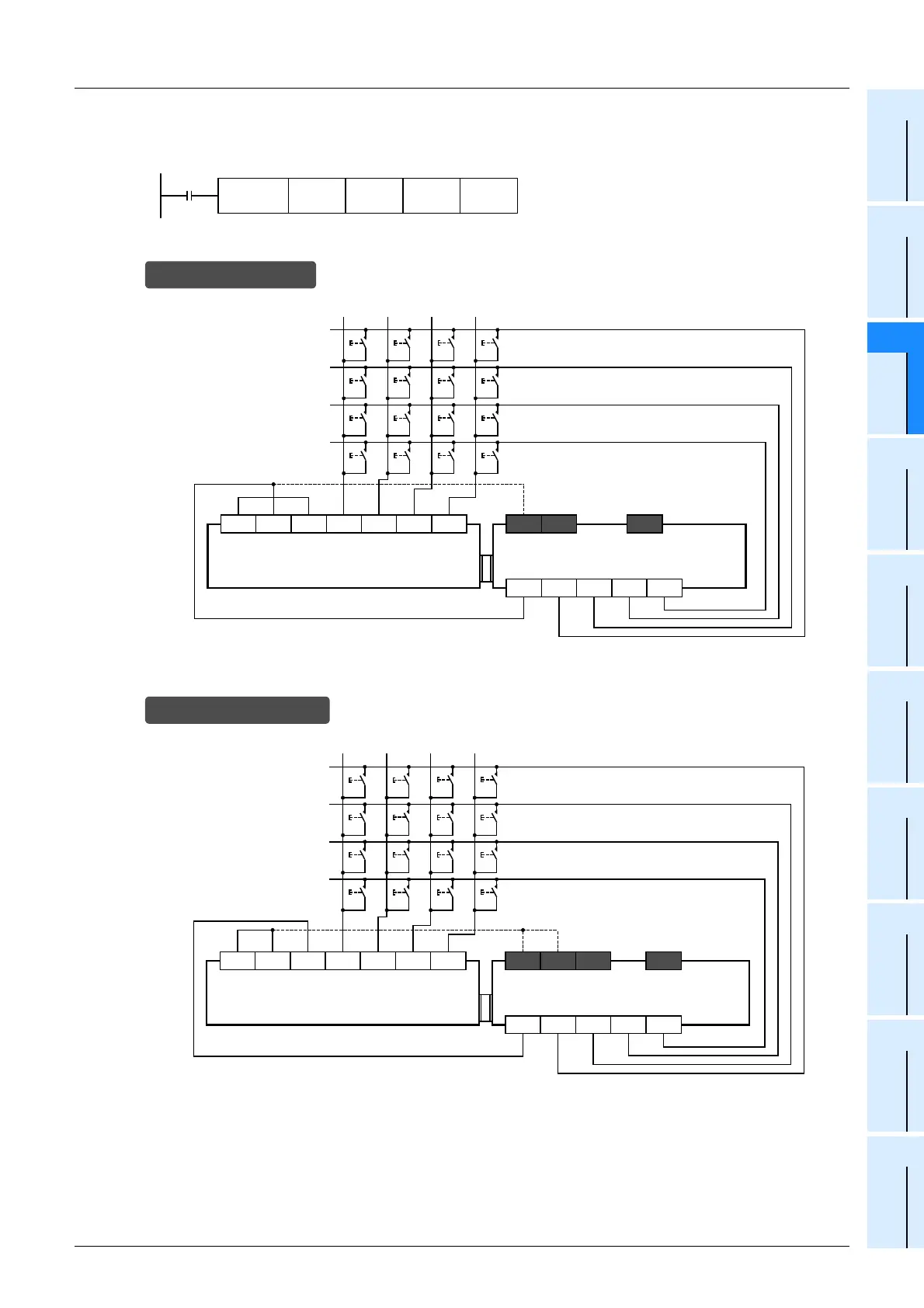

2. Main unit + input/output powered extension unit/block
Example of program
Examples of wiring
M8000
X010 Y050 D100 M0HKY
When the main unit and a transistor output (sink) type input/output powered extension unit/block are used
1248
X010 X011 X012 X01324V0VS/S
Y050 Y051 Y052 Y053
Transistor output (sink)
24+COM
COM1
Main unit
X
*1
External wiring
0 1 23
4567
89AB
C DEF
*2
*1 To use the input terminal (X) of the input/output powered extension unit, wire the terminal as shown by the dotted line.
*2 The terminals in the shaded areas are provided on input/output powered extension units (ex.: FX
2N-32ET).
Output extension blocks do not have the terminals.
Input/output powered extension unit/block
Output extension block
In case of sink wiring
When the main unit and a transistor output (source) type input/output powered extension unit/block are used
1248
X010 X011 X012 X01324V0VS/S
Y050 Y051 Y052 Y053
Transistor output (source)
0VS/S
+V0
Main unit
X
*1
24V
External wiring
0 1 23
4567
89AB
C DEF
*2
*1 To use the input terminal (X) of the input/output powered extension unit, wire the terminal as shown by the dotted line.
*2 The terminals in the shaded areas are provided on input/output powered extension units (ex.: FX
2N-32ET-ESS/UL).
Output extension blocks do not have the terminals.
Input/output powered extension unit/block
Output extension block
In case of source wiring
