13 Examples of Wiring for Various Uses
13.5 Input Matrix [MTR Instruction (FNC 52)]
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
IInput/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block
3. Input/output powered extension unit

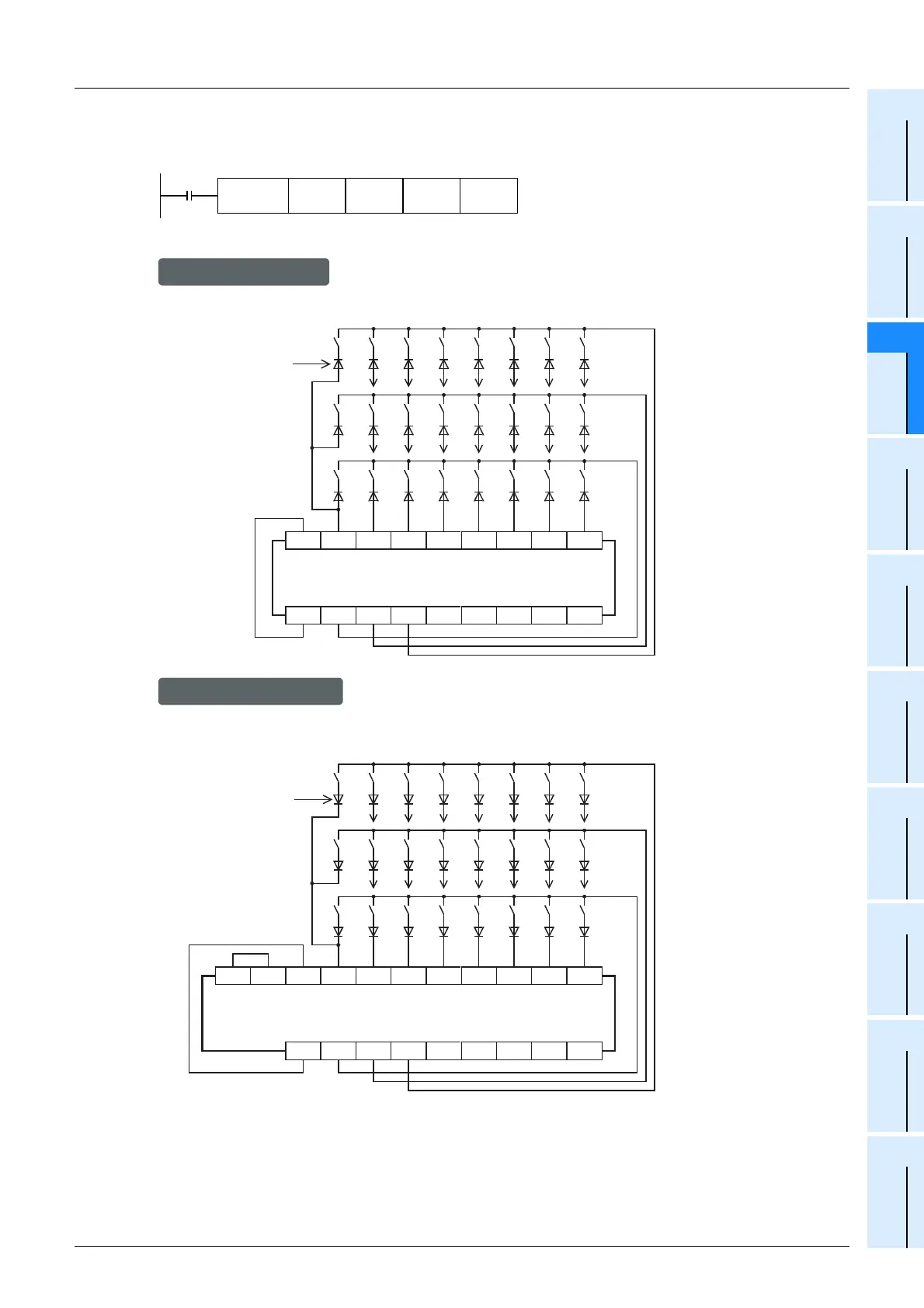

Example of program
Examples of wiring
M8000
X060 Y050 M30 K3MTR
COM X060
COM1
X061 X062 X063 X064 X065 X066 X067
Y050 Y051 Y052 Y053 Y054 Y055 Y056 Y057
Transistor output (sink)
M30 M31 M32 M33 M34 M35 M36 M37
M40 M41 M42 M43 M44 M45 M46 M47
X061 X062 X063 X064 X065 X066 X067
M50 M51 M52 M53 M54 M55 M56 M57
X061 X062 X063 X064 X065 X066 X067
FX2N-32ET
FX
2N-48ET
0.1A 50V
diode is
necessary.
Input/output powered extension unit
In case of sink wiring
When inputs are used for sink only and outputs are the transistor sink type in the used input/output
powered extension unit
24V X060
+V0
X061 X062 X063 X064 X065 X066 X067
Y050 Y051 Y052 Y053 Y054 Y055 Y056 Y057
Transistor output (source)
M30 M31 M32 M33 M34 M35 M36 M37
M40 M41 M42 M43 M44 M45 M46 M47
X061 X062 X063 X064 X065 X066 X067
M50 M51 M52 M53 M54 M55 M56 M57
X061 X062 X063 X064 X065 X066 X067
0.1A 50V
diode is
necessary.
0VS/S
FX2N-32ET-ESS/UL
FX
2N-48ET-ESS/UL
Input/output powered extension unit
In case of source wiring
When inputs are used for both sink and source and outputs are the transistor source type in the used
input/output powered extension unit
