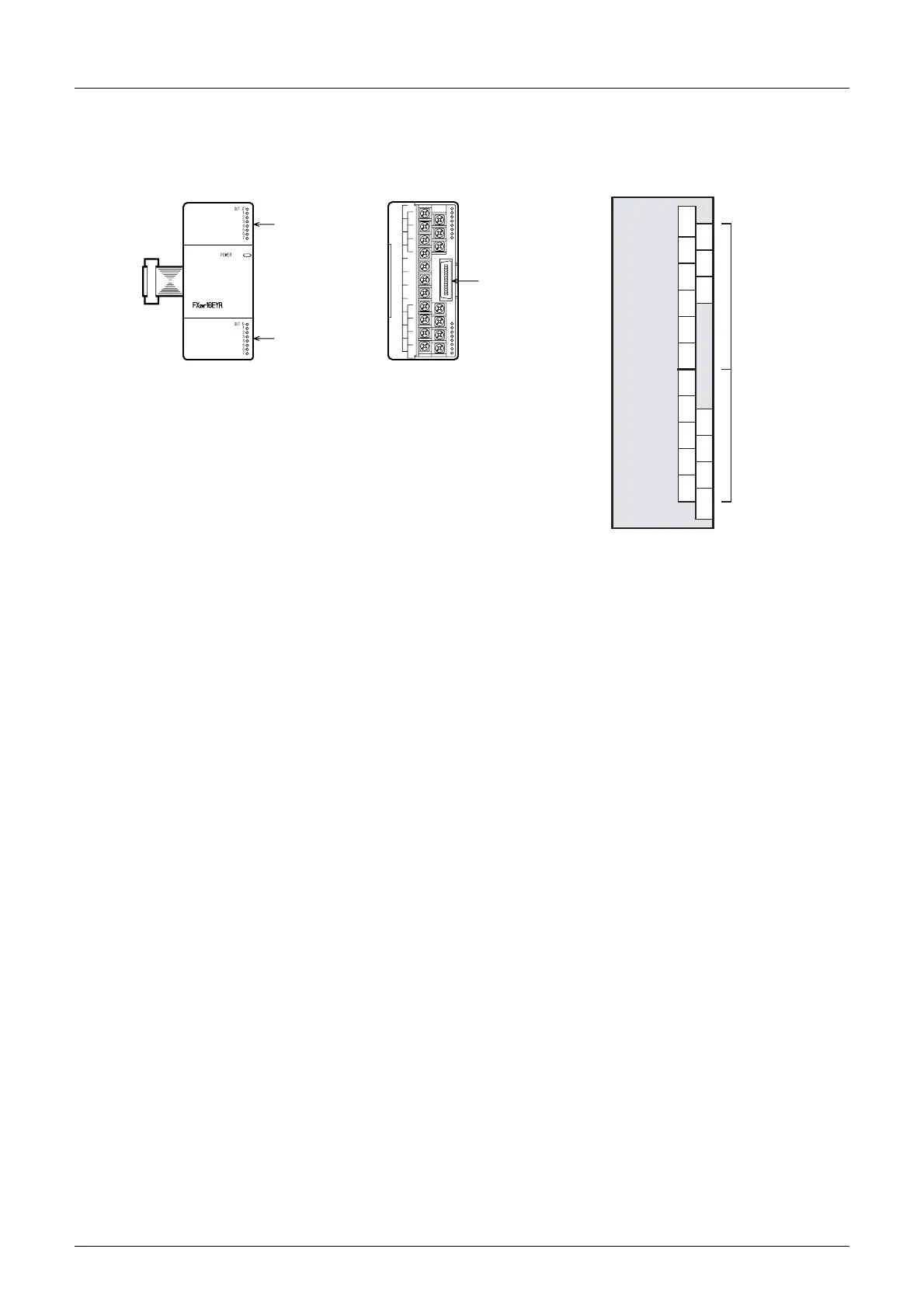

16 FX2N-8/16E*-*(Input/Output Extension Blocks)

16.8 FX2N-8EYR-ES/UL, FX2N-8EYR-S-ES/UL, FX2N-16EYR-ES/UL (Relay Output)

FX2N-16EYR-ES/UL

When an output (Y) number is assigned, 8 points on the upper side will be used for the lower output numbers,

and 8 points on the lower side will be used for the higher output numbers.

Y0 Y2 Y4 Y2 Y4 Y6

COM2

Y7Y5Y3Y1Y0Y7Y6Y5Y3Y1

COM1

With cover

Output indicator

lamps

(LED lamps)

Output indicator

lamps

(LED lamps)

Without cover

Rear line

extension

connector

COM1

Y5 Y7Y6 Y0 Y1

COM2

Lower

numbers

Higher

numbers

FX2N-16EYR-ES/UL
