5 Entering User Messages

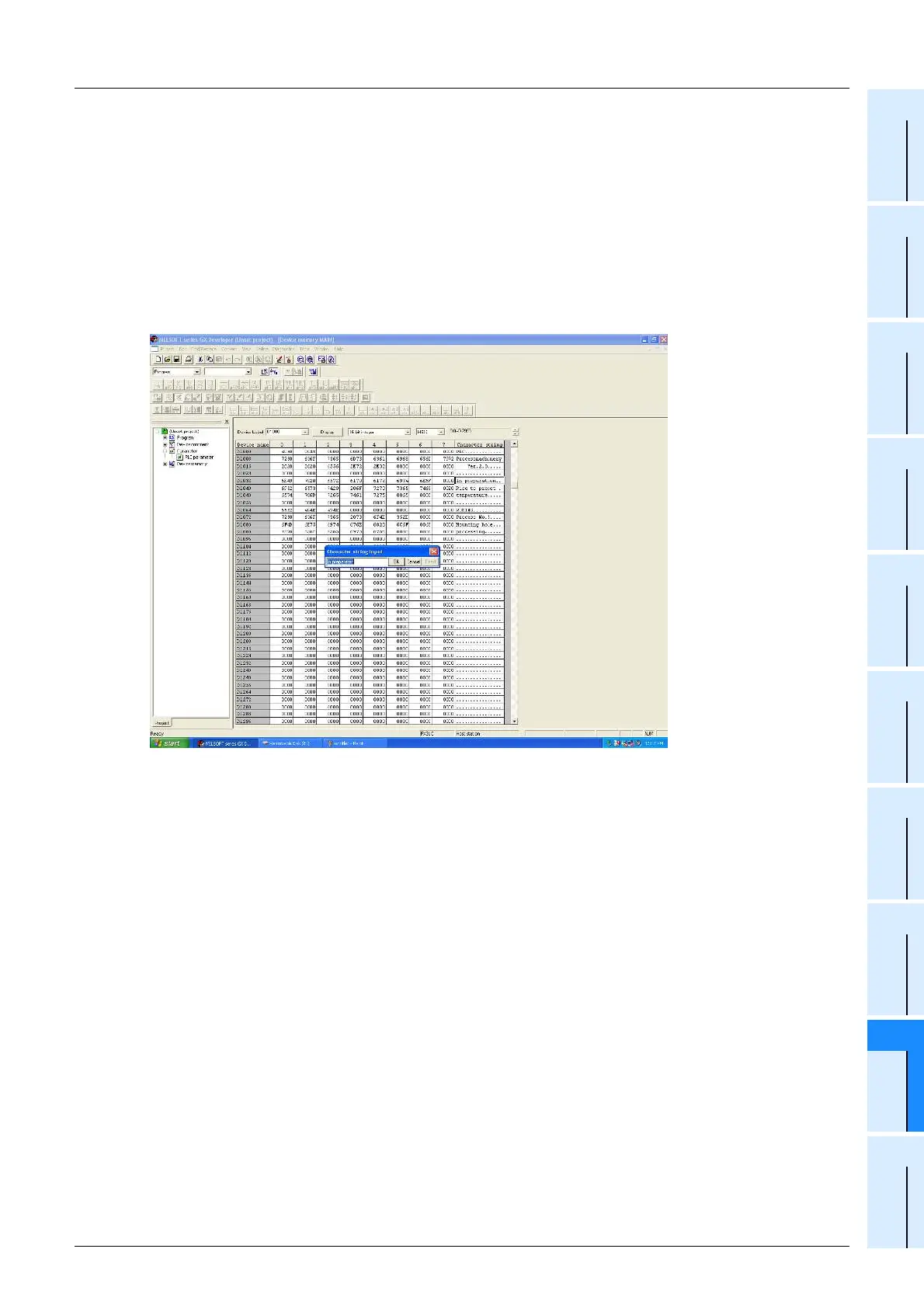

As shown in the illustration below, the dialog box for character string inputs is opened by double-
clicking on GX Developer’s character string display area or the data register display area.
When entering Japanese scripts (Chinese characters, etc.), data input automatically occurs in the
lower order
→ higher order sequence, and the input can therefore be used as it is at the display
module’s user message display.
The GX Developer screen’s character string shown below is for "program example 1".
→ Refer to Subsection 19.23.4 for "program example 1" details.
GX Developer character arrangement precautions:
A single line is comprised of 8 data registers.
To prevent garbled characters when a 2-byte character (shift JIS code) arrangement extends into the next
line, the system replaces those characters with 2 spaces.
([Ex] spaces display at the end of the 1st line and at the beginning of the 2nd line.)
The condition of the display module line must therefore be considered when entering the characters.
Moreover, the 1st character device should be specified for displaying a 1-line character input.
