4. Service Procedures - Replace Components - Creaser Module
154 Morgana DocuMaster MFC - Service Manual
Before you start:
• Remove the creaser module (See Section 4.10.1)
• Remove the RH side plate from the creaser module (See Section 4.10.2.1).
Step Action Procedure
1 Remove the front output-roller.
• Pull the front output-roller away
from the LH side plate and
release it from the bearing
housing.
2 Remove the rear output-roller.
• Remove the two screws that
attach the operating lever to the
operating lever hub (see Figure
4.157).
• Pull the rear output-roller away
from the LH side plate and
release it from the bearing
housing.

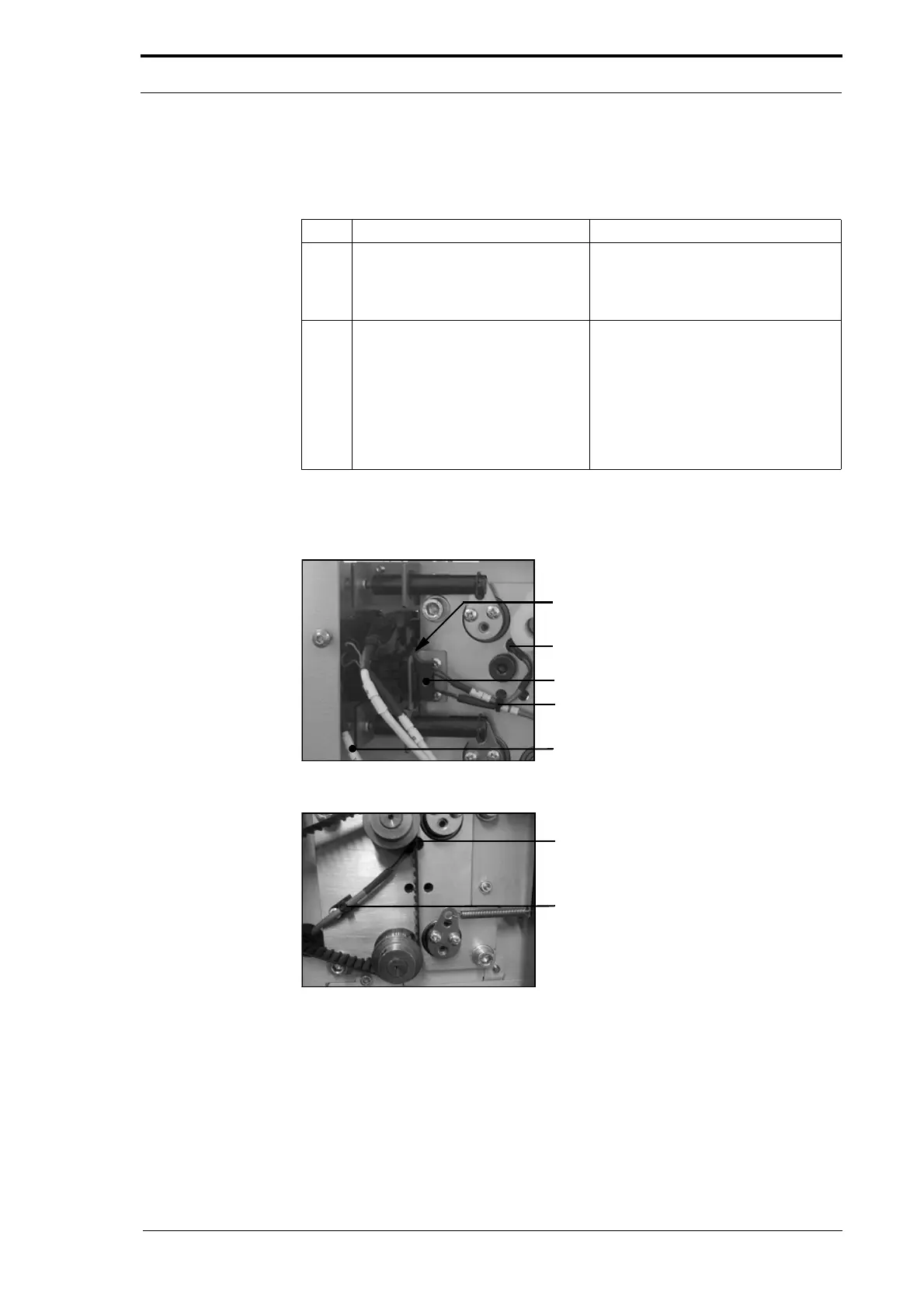

4.10.5 Replace the Jam Detector Assembly
Connector Bracket
Jam Detector Housing
Jam Detector Assembly Connector
Cable Tie
Jam Detector Cable
Figure 4.158 Jam Detector - LH Side Plate
Jam Detector Housing
Cable Tie
Figure 4.159 Jam Detector - RH Side Plate
