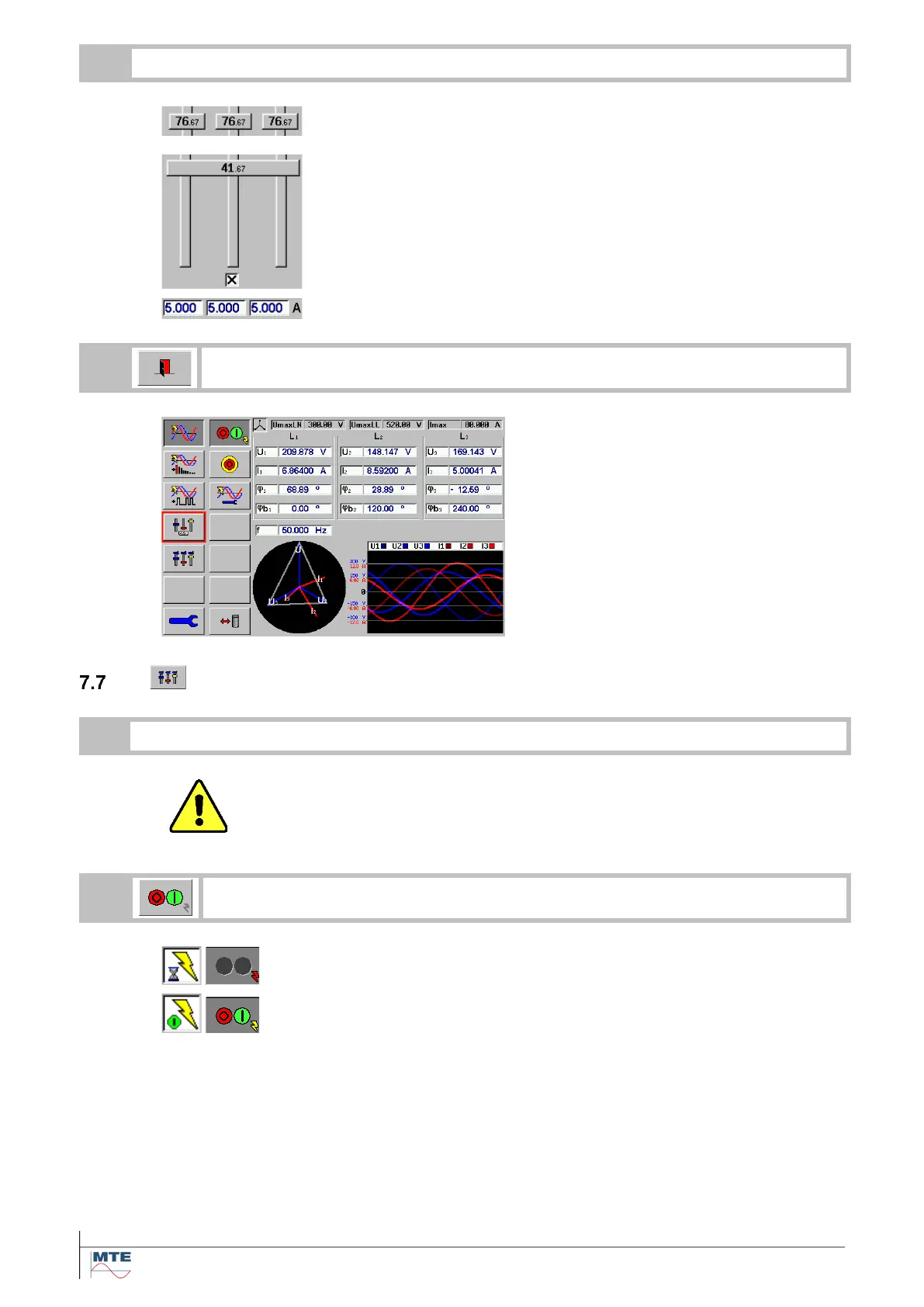

MTE PTS 400.3 PLUS - User Defined Slider Settings

PTS 400.3 PLUS Operation Manual_R02 Page 103/306
6
Set voltage U, current I and phase angle φ
The slides show the settings in relation to the settings U
max
and
I
max
in %. Each phase can be set individually.
The slides show the settings in relation to the settings U
max
and
I
max
in %. All phases can be linked together when the checkbox
is marked.
The actual measured values will be displayed.
7
Exit the screen
The settings are already active and the
measured values are displayed.
User defined slider settings
1
Check measuring setup and settings
Warning!
Check all connections in the test circuit.
Check the settings UmaxImax.
Check the settings UIφf.
2
Switch on the power source first
Status indication during ramping up voltage and current to the set value.
Status indication when the power source is switched ON
