PTS 400.3 PLUS Operation Manual_R02 Page 12/306

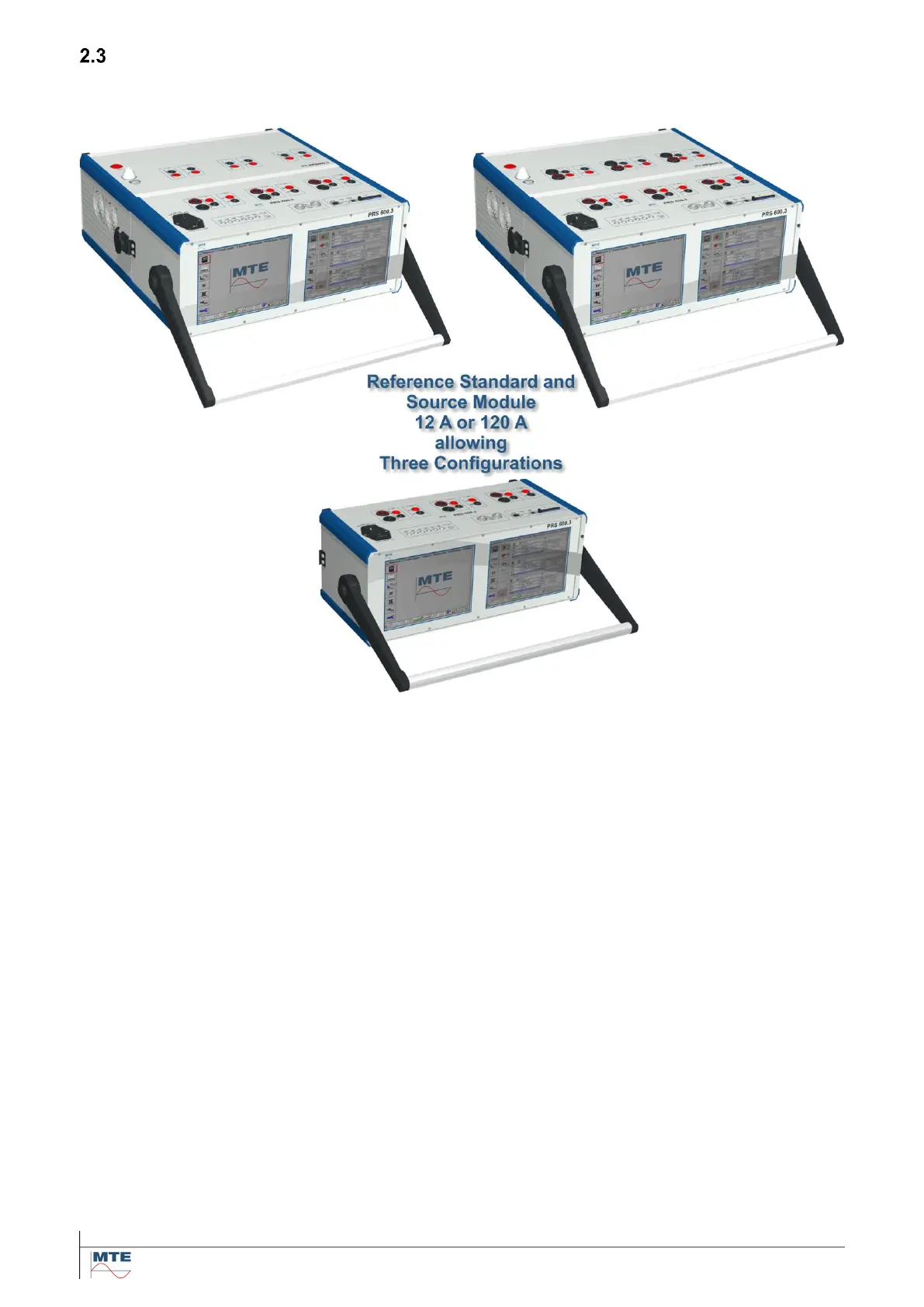

PTS 400.3 PLUS Portable Test System
The PTS 400.3 PLUS system consists of a reference standard PRS 600.3 of class 0.02% and a pro-
grammable power source PPS 400.3, which is available in two versions of up to 12 A or 120 A.
The PRS 600.3 serves as a control module for controlling the PPS 400.3 power source. Both modules
are easily assembled and controlled. The PRS 600.3 module automatically recognizes the module it is
connected to, therefore a reference meter PRS 600.3 may be simply and quickly upgraded with a
source PPS 400.3 thereby producing a one-position portable test system. Operation of the system may
begin immediately after connecting both modules.
The PPS 400.3 power source if used without the control module can be controlled and test values
retrieved via the serial interface RS 232 C. It is therefore possible to easily apply modules unchanged
into stationary test systems.
