6.6.1 Current transformer CT type dataset
Call edit actual object or load object file or create new object at the file
selection menu [6.1] to call the actual object menu.

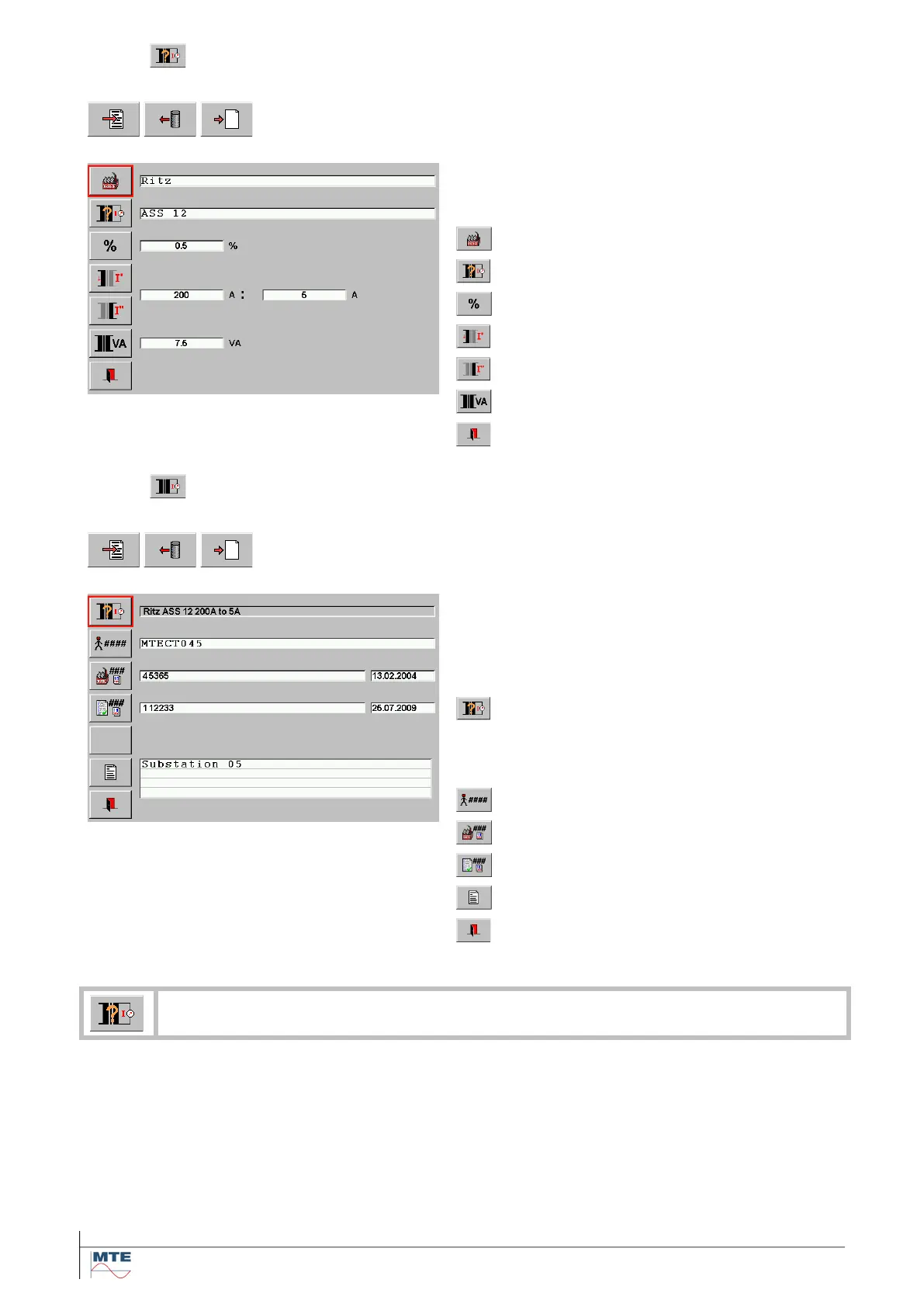

Actual CT type dataset menu
Enter or modify directly with virtual or external key-
board:
Manufacturer
Current transformer CT type
Accuracy class
Primary current
Secondary current
Nominal burden
Exit, back to calling menu
6.6.2 Current transformer CT dataset
Call edit actual object or load object file or create new object at the file
selection menu [6.1] to call the actual object menu.
Actual CT dataset
Object files for current transformer CT’s and cur-
rent transformer CT types can be loaded. The file
names of the actual loaded object files are shown
at:
Current transformer CT type
Enter or modify directly with virtual or external key-
board:
Owner number
Manufacturer number / Date
Certification number / Date
Comment to CT dataset
Exit, back to calling menu
Indications / settings
Load / edit object file
The file selection menu [6.1] is called with the object file directory:
CT Type Selections
For description of actual current CT type dataset see [6.6.1]
