17.2.14 Ratio measurement of voltage transformer with VoltLiteWire 40kV

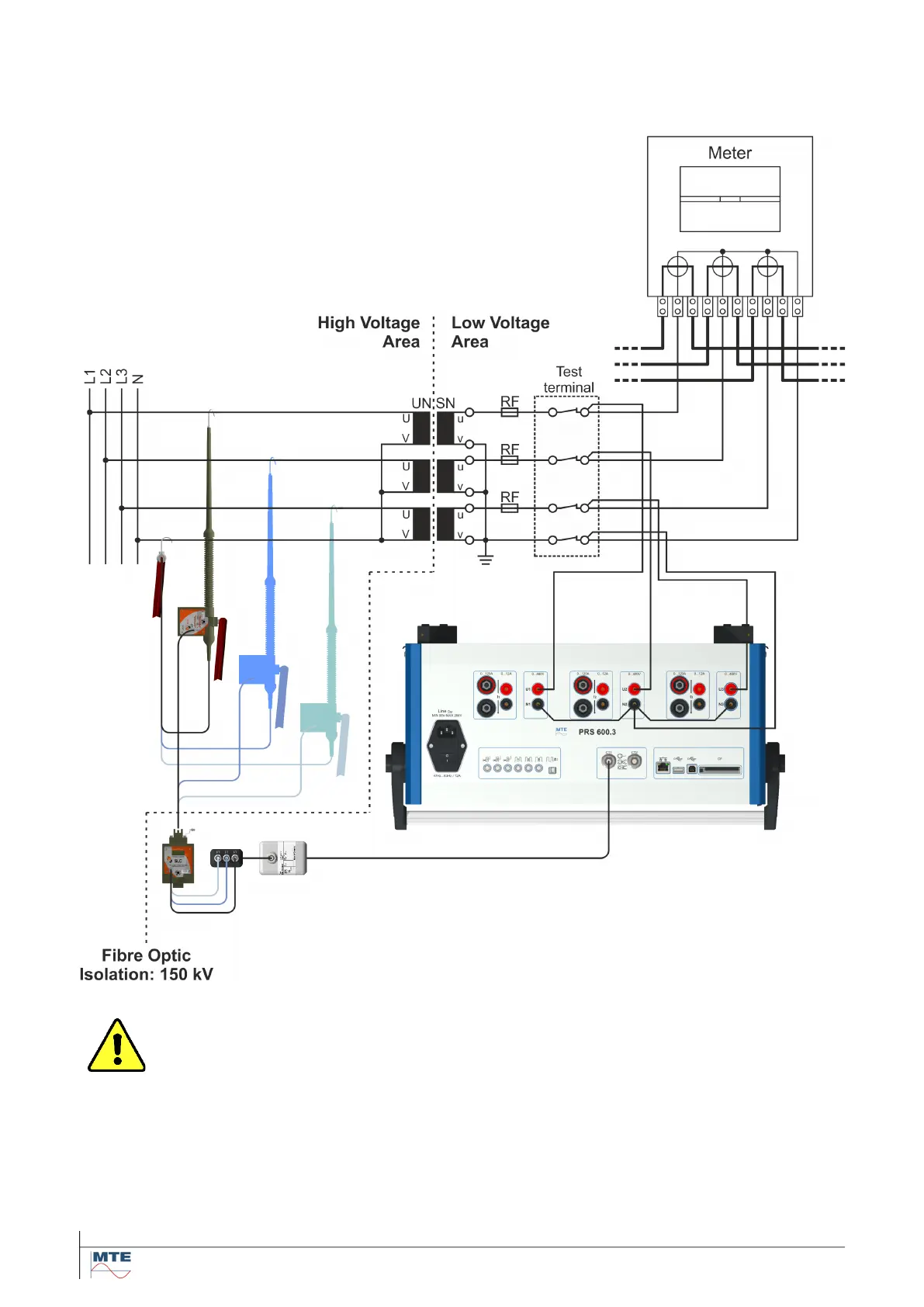

The connection example is shown for the test of the voltage instrument transformer of phase 1 of a
3-phase 4-wire installation. Check phases L2, L3 in the same way phase by phase (blue marked).
Attention! Regard the instructions for the use of the VoltLiteWire high voltage voltage
sensor and observe local safety regulations for measurements on high voltage poten-
tial.
