17.1.6 Testing of an installed transformer connected 3-wire meter up to 12A

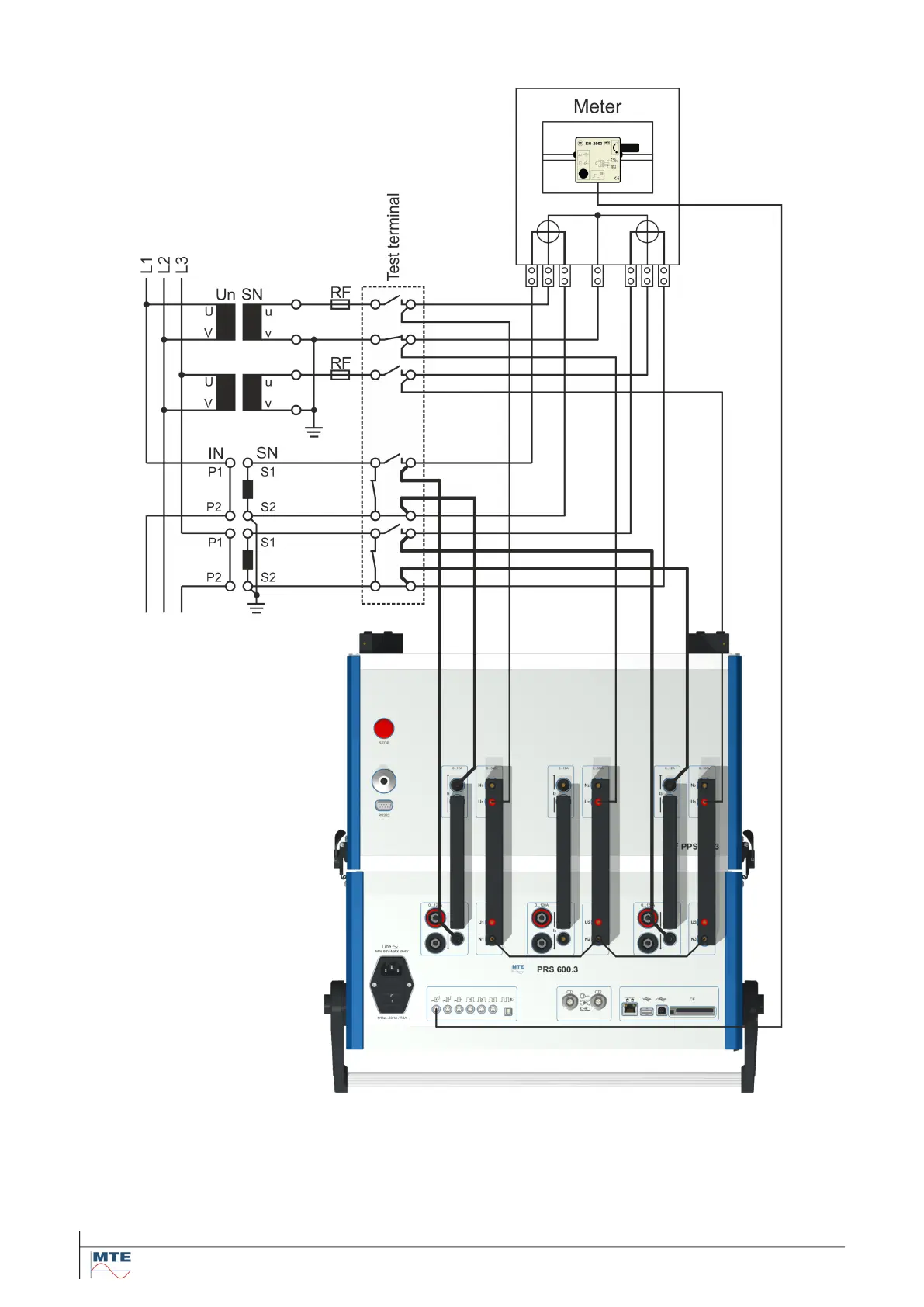

Connections to test terminals (see explanations in chapter 17.1.5)
