PTS 400.3 PLUS Operation Manual_R02 Page 92/306

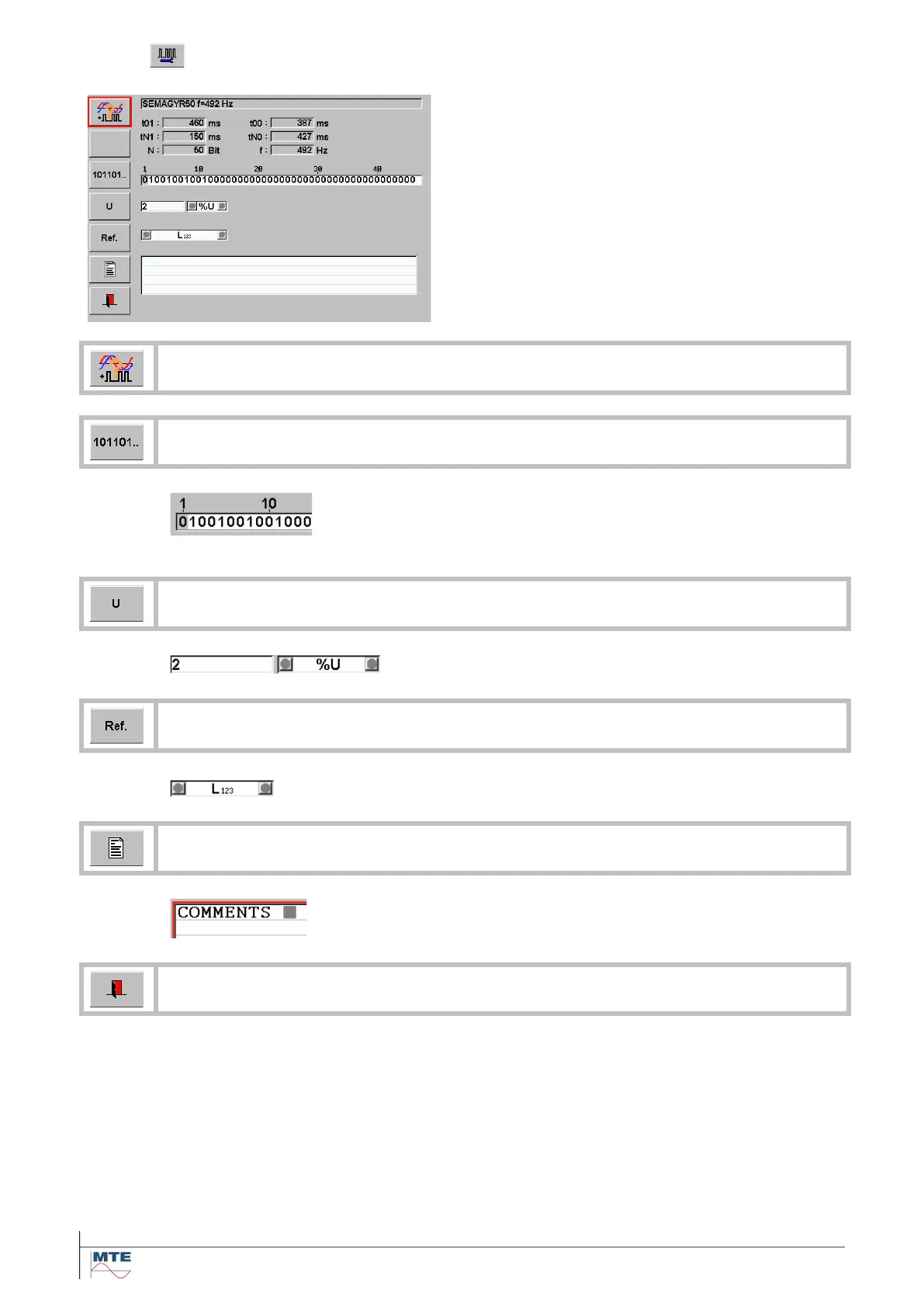

7.4.1 Setup of RCS telegram
Ripple Control telegram menu
This menu contains the following menus and func-
tions additional to the power source menu:
• Select/edit Ripple control telegram type
• Edit Ripple control telegram
• Edit Signal amplitude
• Edit Ripple control phases
• Edit Comments
• Exit
Select/edit telegram type settings from/to directory RCS Param Selections [7.4.2]
Edit Telegram
Input of the steering impulses (address bits and impulse bits). The
input field contains N impulse places.(e.g. N=50 for Semagyr,
N=10 for Decabit)
Edit Ripple control signal amplitude
Input of the signal amplitude either in %U or in V.
Edit Ripple control phases
The ripple control signal will be generated for the selected phases.
Edit Comment
Input of a text with up to 128 characters.
Exit and accept settings, back to calling menu.
