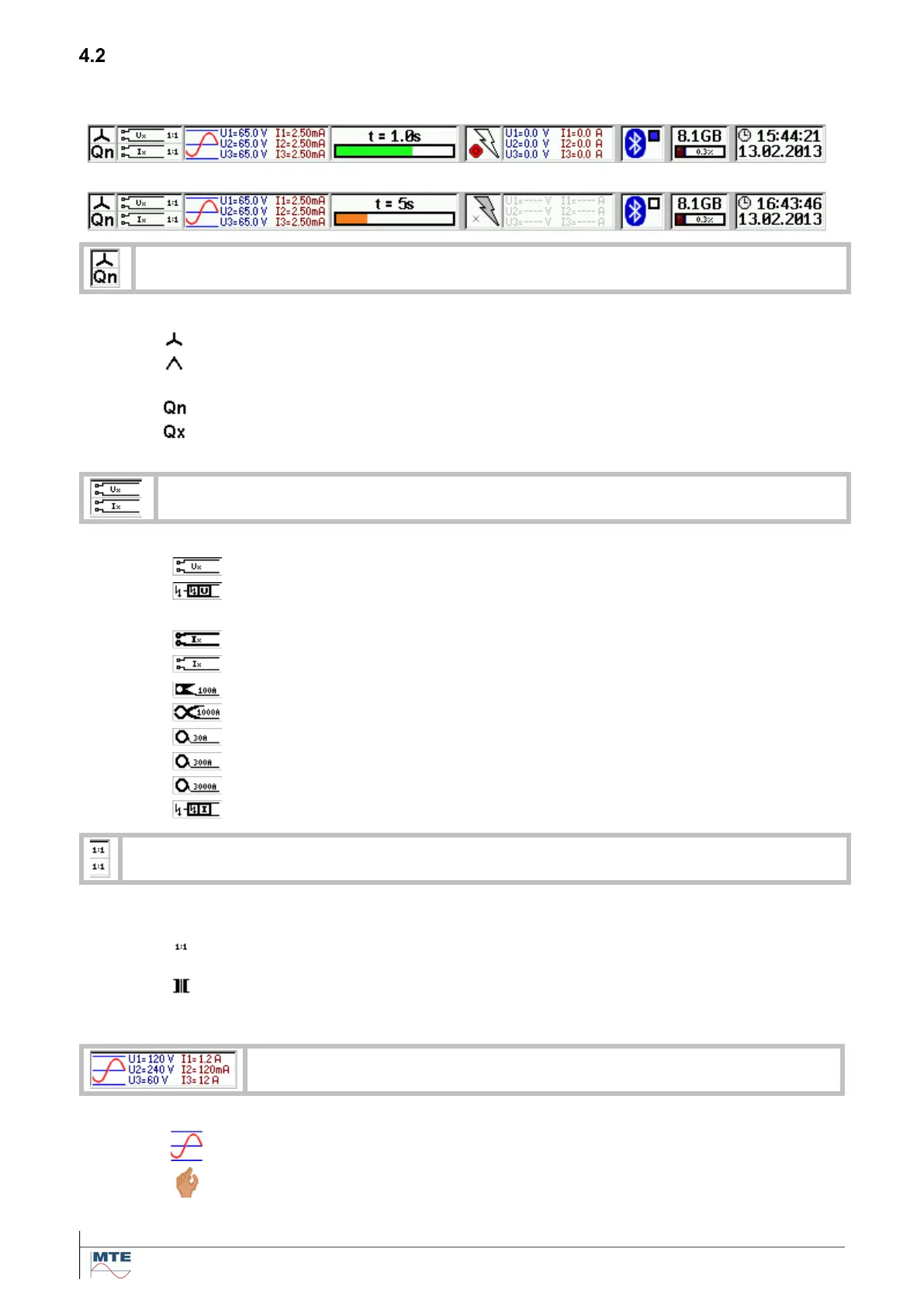

Status indications
At the bottom of the display different status indications of the instrument are visible.
Bluetooth ON, source control active
Bluetooth OFF, source control inactive, PQ time base active
Connection mode and reactive mode
Connection mode
4-wire mode
3-wire mode
Reactive mode
Natural (n) mode (90° phase shifters used)
Artificial or cross-connected (x) (phase - phase voltages with 90° phase shift
used)
Voltage and current measurement inputs
Voltage input type
Direct voltage inputs
Hotstick voltage input
Current input type
Direct current inputs 120A
Direct current inputs 12A
Current clamps 100A
Current clamps 1000A
FLEX 3000 / 30A
FLEX 3000 / 300A
FLEX 3000 / 3000A
Hotstick current input
Transformer factors
Status of activation of transformer factors for voltage inputs (upper symbol) and current
inputs (lower symbol).
Transformer factors disabled
The ratio is 1. All values are indicated as measured.
Transformer factors enabled
The displayed load values and energies and the ranges indicated in the status
section are multiplied with the ratios defined at reference meter settings [8.1].
Selection and indication of voltage and current ranges
Type
Automatic range selection
Manual range selection
