MTE PTS 400.3 PLUS - Preparation of Test Run; Work with Individual Meters and Test Sequences of Data Base; Work with Direct Entries for Meter and Test Sequence

PTS 400.3 PLUS Operation Manual_R02 Page 181/306
Test duration (t/n) defined for test step and input
Test type error with test mode imp, 50 impulses tested
Test type error with test mode time, 30 s tested
Test type energy with test mode energy in kWh, 0.1 kWh dosage

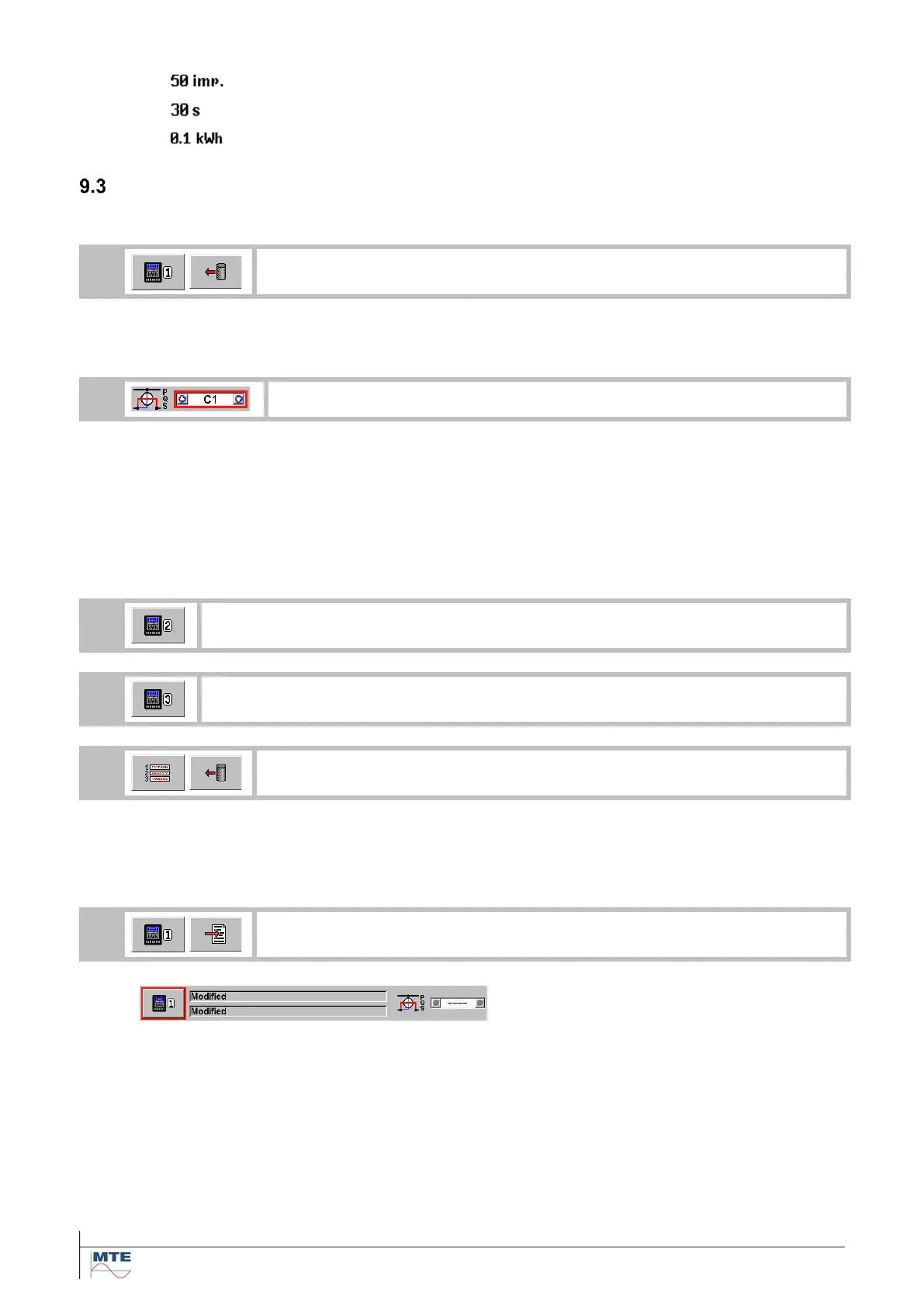

Preparation of test run
9.3.1 Work with individual meters and test sequences of data base
1
Load meter file for input 1 from data base
The meter and the meter type object file name are indicated in the two fields. Impulse output
selection becomes accessible.
2
Select impulse output of meter 1 to test
Select one of the meter constants Cx, Rx (C = Co: optical constant, R = Ce: electrical con-
stant) of the up to four measuring systems (x = 1,2,3,4) defined in the meter type linked to the
loaded meter.
For test sequences, where the copy from meter flag is set at least one meter constant (e.g.
C1) must be defined to run test steps or type error.
For test sequences with fix error measurement parameters and copy from meter flag not set,
the impulse output must not be selected.
3
Repeat steps 1 to 3 for input 2 (optional)
4
Repeat steps 1 to 3 for input 3 (optional)
5
Load test sequence file from data base
9.3.2 Work with direct entries for meter and test sequence
The example shows a minimum directly entered meter and test sequence definition to enable a test
run with input 1.
1
Input minimum meter settings for input 1
Select sub menus and activate edit actual
object until the meter menu is displayed.
Make at least one input (e.g. serial num-
ber). Go back with several exit FB’s until
setup menu is displayed again with entries
Modified at meter and meter type file
name.
