6.6.3 Potential transformer PT type dataset
Call edit actual object or load object file or create new object at the file
selection menu [6.1] to call the actual object menu.

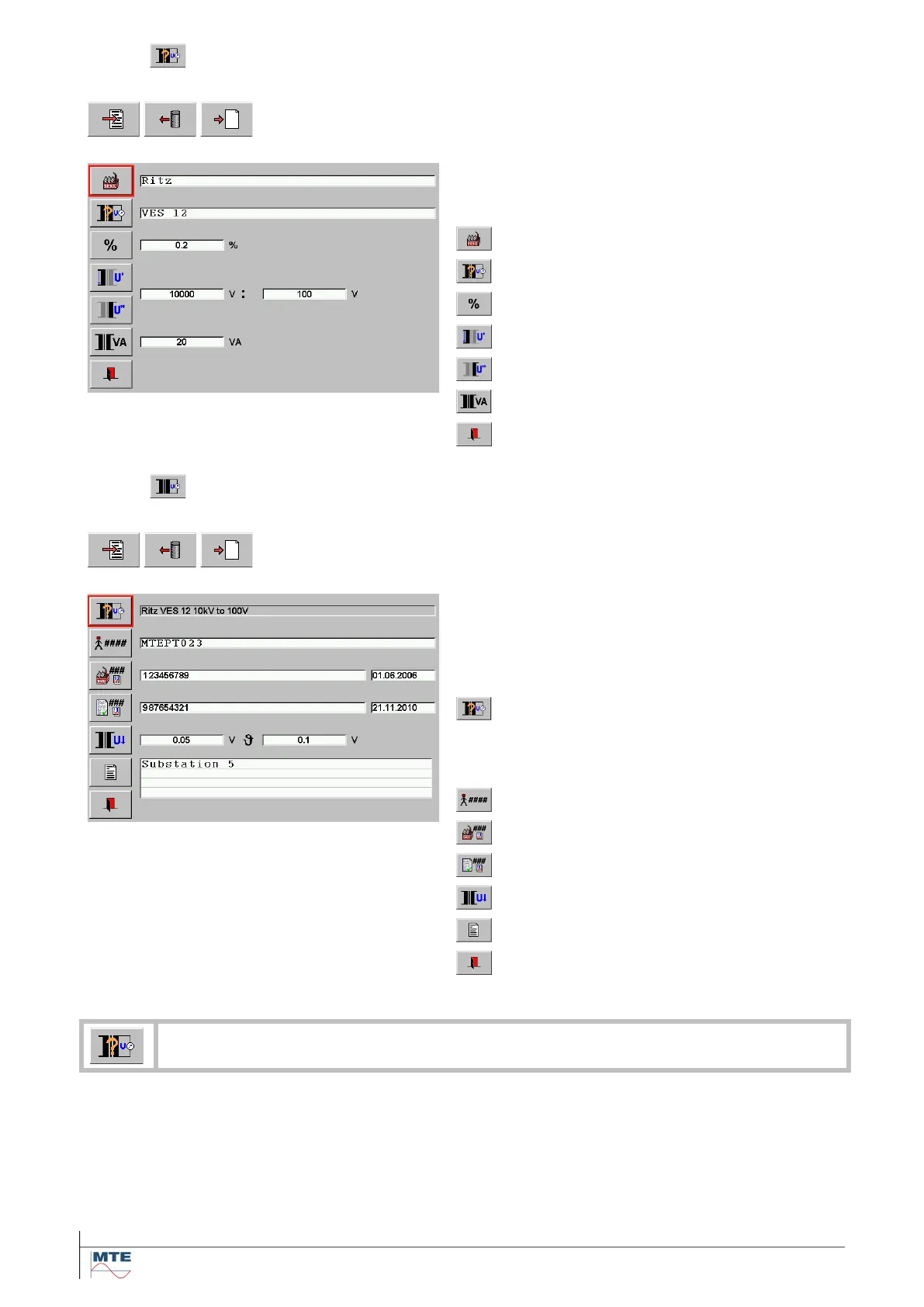

Actual PT type dataset
Enter or modify directly with keypad or external
keyboard for:
Manufacturer
Potential transformer PT type dataset
Accuracy class
Primary voltage
Secondary voltage
Nominal burden
Exit, back to calling menu
6.6.4 Potential transformer PT dataset
Call edit actual object or load object file or create new object at the file
selection menu [6.1] to call the actual object menu.
Actual PT dataset
Object files for potential transformer PT’s and po-
tential transformer PT types can be loaded. The file
names of the actual loaded object files are shown
at:
Potential transformer PT type
Enter or modify directly with keypad or external
keyboard for:
Owner number
Manufacturer number / Date
Certification number / Date
Voltage drop fuse / voltage drop total
Comment to CT dataset
Exit, back to calling menu
Indications / settings
Load / edit object file
The file selection menu [6.1] is called with the object file directory:
PT Type Selections
For description of actual potential PT type dataset see [6.6.3]
