8.1.4 Selection of current measurement inputs
This function serves to select the current input used, direct connection or different kinds of current
clamps or hotstick for measuring up to 2000A connected and automatically recognized at universal
sensor inputs CT1 or CT2.
One of the following inputs for current measure-
ment can be selected.
Direct inputs 12A
Direct inputs 120A
Current clamps 100A
Current clamps 1000A
FLEX 3000 / 30A
FLEX 3000 / 300A
FLEX 3000 / 3000A
Hotstick up to 2000A
No sensor connected
Exit
The selection is common for all three phases

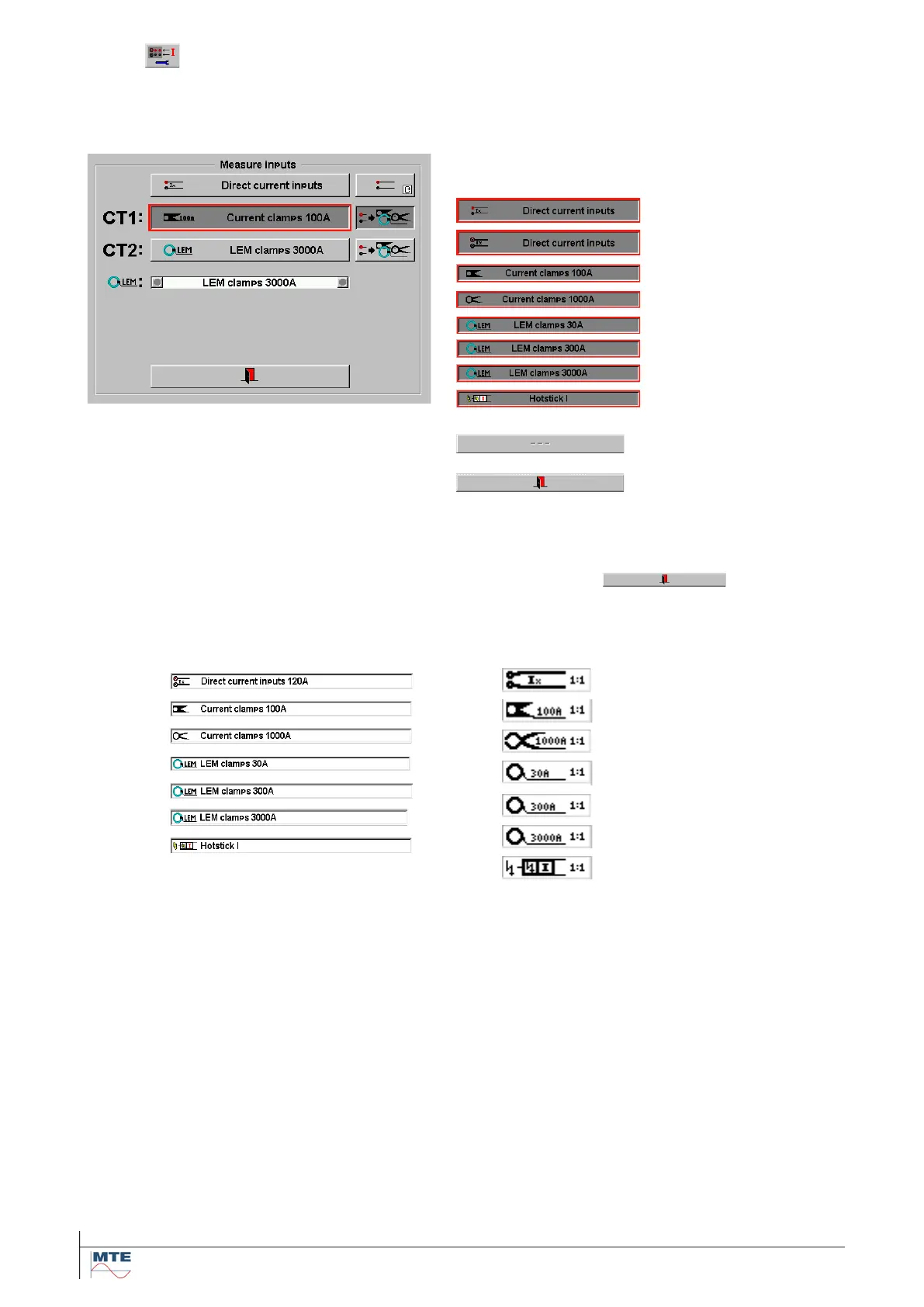

Indication on the main setup screen
Depending on what current input is chosen, after pressing ,
on the main setup screen it shows the corresponding current input and it’s belonging sta-
tus symbol.
Current input selection indication
Status symbol indication
