PTS 400.3 PLUS Operation Manual_R02 Page 231/306

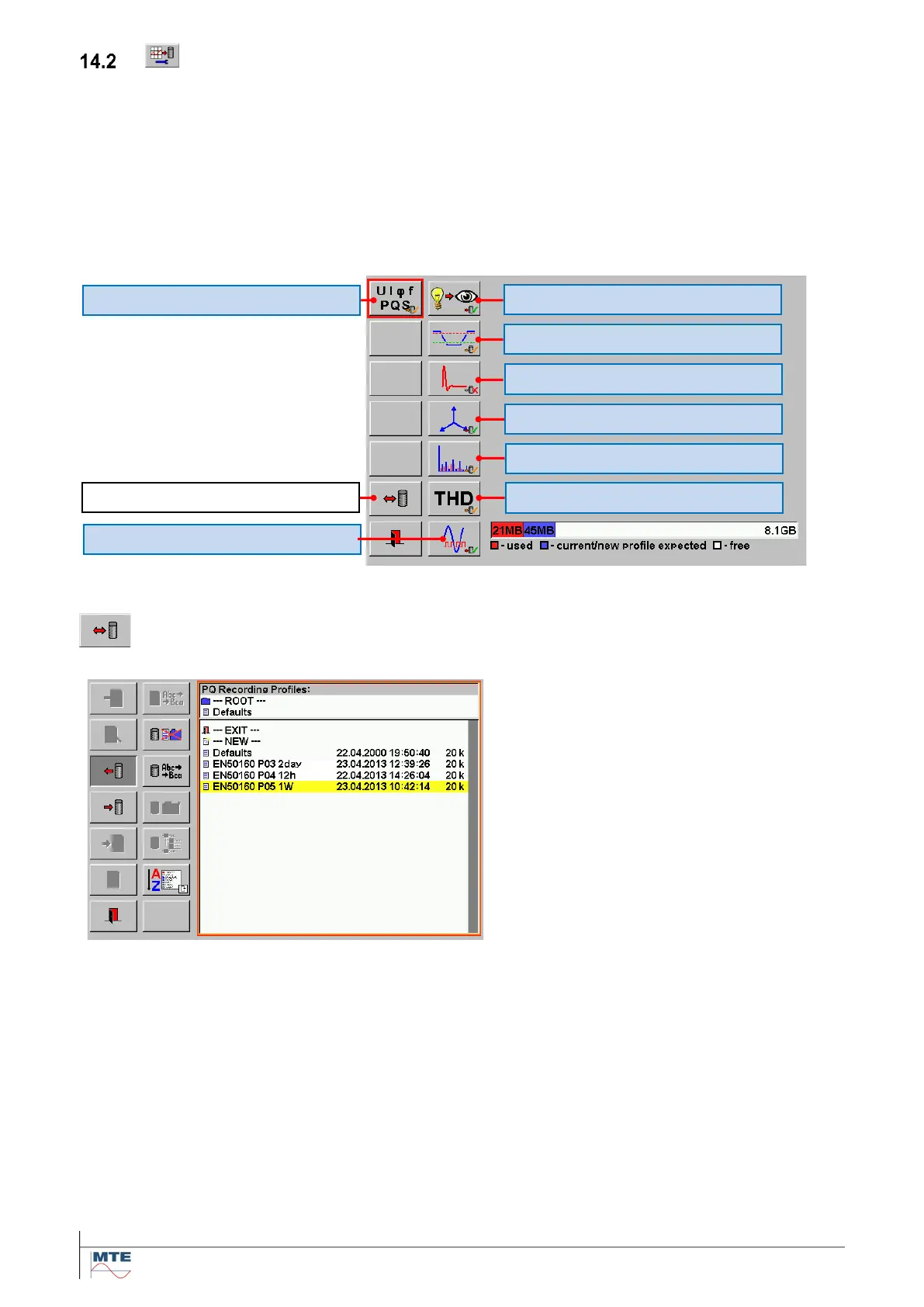

Setup of Recording and Analysis Profile
The recording and analysis settings for the different PQ parameters shown with functional buttons on
the left side can be changed directly by operating the corresponding button.
The different PQ parameters can be setup individual for each value and each phase, so maximum
flexibility is given.
The settings of all parameters together can be saved as a configuration or a predefined configuration
can be loaded and be modified if required.
The used space on the CF card and the expected storage capacity for the actual profile are indicated
with a bar graph at the bottom.
Load/save PQ recording and analysis profile
The recording and analysis settings of all
parameters and phases can be saved as a
configuration in a common file on the CF
card and recalled at any time.
In this way profiles for e.g. the compliance
verification with the standard EN 50160 for
different observation periods can be prede-
fined and saved and later be recalled.
Total Harmonic Distortion
Events (Dip, Swell, Interrupt, Inrush)
Harmonics and Interharmonics
Mains Signaling or Ripple Control
Load/save recording and analysis profiles
