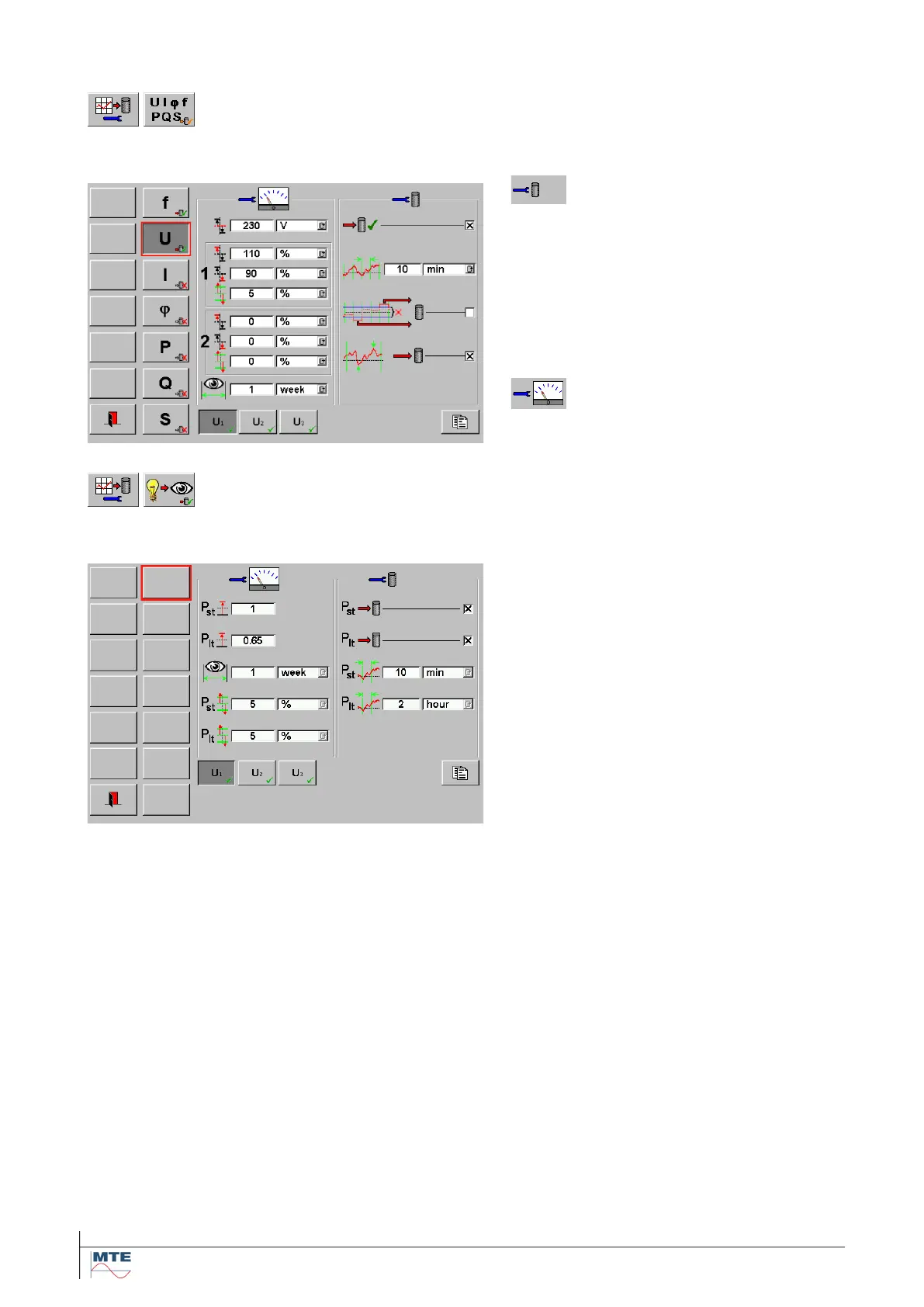

A recording and analysis profile contains
different sub menus for the configuration of
the different parameters and phases. Each
with two sections for the configuration of:
Individual configuration for each value and
each phase:
• Enable recording
• Recording interval
• Out of tolerance values recorded
• Min/Max values recorded
• Definition of nominal values with up-
per/lower limits in % of nominal value
(e.g. U1) or absolute limit values (e.g.
Pst, Plt).
• Free configurable observation period
with unit min, h, day, week for each pa-
rameter and phase (e.g. 1 week).
• Free configurable percentage or num-
bers of out of tolerance values allowed
during observation period (e.g. up to 5%
out of tolerance during 1 week allowed)
Not only the PQ compliance verification re-
garding EN 50160 is supported, but also the
compliance verification regarding modified
standards or company own regulations or
specially agreed contracts with customers.
