MTE PTS 400.3 PLUS - PPS 400.3 Connectors and Control Elements; Pps 400.3-12 A

PTS 400.3 PLUS Operation Manual_R02 Page 18/306

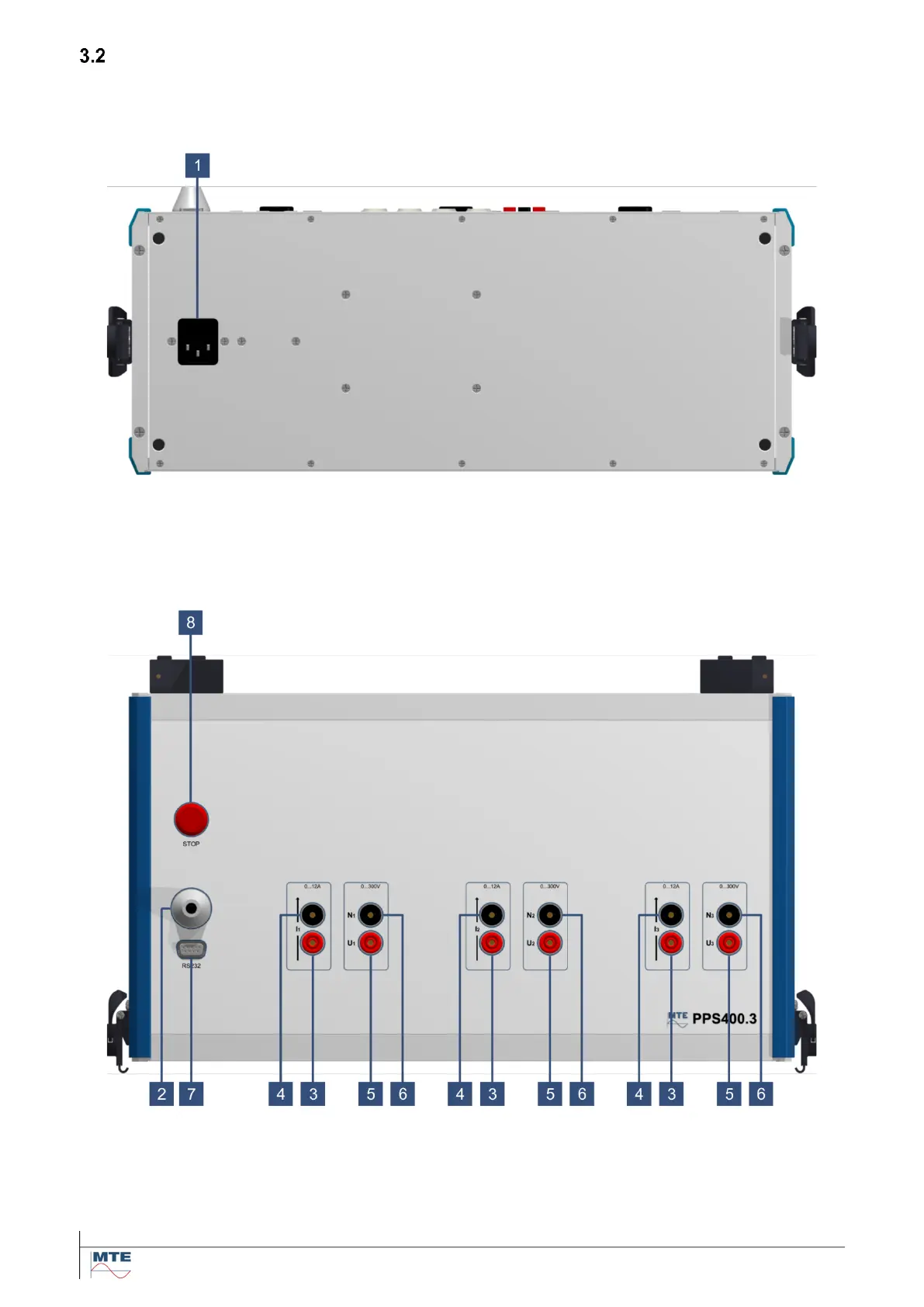

PPS 400.3 connectors and control elements
3.2.1 PPS 400.3-12A
Front view
[1]
Supply voltage connection
Range: 86 … 264 VAC, 47 … 63 Hz
Fuses: 2 x 4 A / 250 V slow blow (below the cover)
Top View
[2]
Blue tooth antenna for wireless communication
[3]
Current-outputs I1, I2, I3 (red)
Type: 4 mm insulated sockets
[4]
Current-back wire I1, I2, I3 (black)
Type: 4 mm insulated sockets
