[5]
Phase connections for 3 voltage U1, U2, U3
Type: 4 mm insulated sockets
[6]
Neutral connections for 3 voltage U1, U2, U3
Type: 4 mm insulated sockets
[7]
RS232 Serial Line Interfaces
Connection: 9 pole SUB-D connector
Pin 2  TxD
Pin 3  RxD
Pin 5  GND
Pin 7  CTS
Pin 8  RTS
[8]
Interrupt button

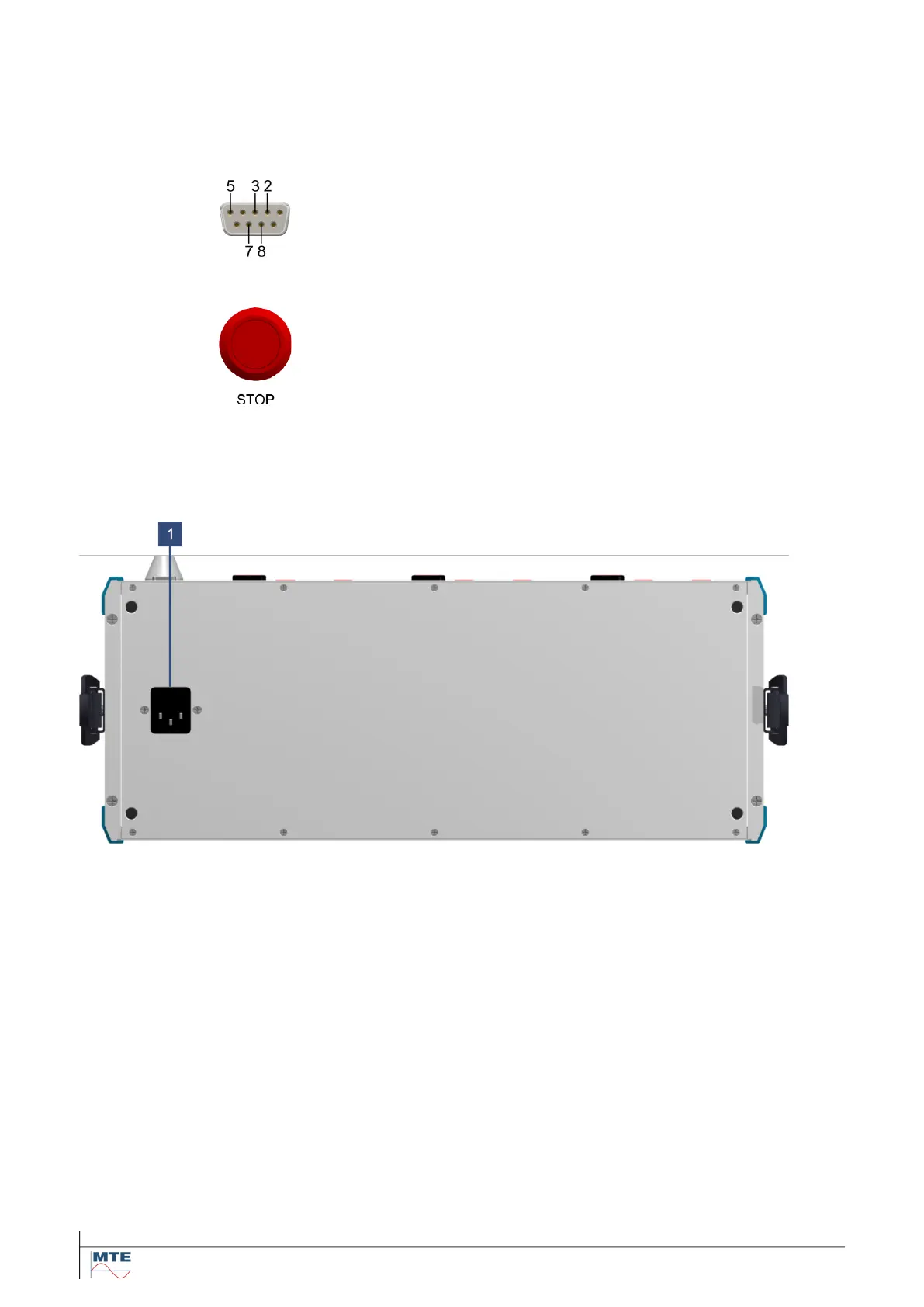

3.2.2 PPS 400.3-120A
Front view
[1]
Supply voltage connection
